Key Features of Addressable RGB COB LED Strip Light
1. Pixel RGB Control for Dynamic Lighting Effects
This pixel RGB COB LED strip is built for lighting effects that can move, chase and change in a more controlled way. Instead of only showing one fixed color or a simple RGB blend, the pixel control makes the strip much better for animated lighting scenes, flowing color changes and eye-catching display effects. That gives the project more visual movement and a stronger sense of style.
2. SPI 2811 Control for Addressable Lighting
The strip uses SPI 2811 control, so it can work as an addressable RGB COB strip with more flexible lighting behavior. That makes it suitable for projects that need programmable effects, repeated chasing patterns or segment-by-segment control. It is a better fit for decorative and entertainment lighting than a standard RGB strip.
3. Strong Visual Effect for Decorative Projects
This model is built for lighting scenes where visual movement matters. It combines RGB color changes, COB smoothness and pixel control into one strip, so the final result feels more dynamic and more attractive than a standard static light strip.
4. 420LEDs/m for a Denser and Cleaner Light Line
With 420 LEDs per meter, the strip produces a smoother and more refined light line than a low-density RGB strip. The COB structure helps the colors look more unified, so the moving light effect appears cleaner and more complete across the whole strip.
420LEDs/M vs 720LEDs/M RGB Addressable COB LED Strip: Key Differences
| Core Difference Parameter | LED Density (Core Feature) | Cutting Unit (Installation Key Difference) | Max Power Per Meter | Typical Power Per Meter | Rated Current | SPI2811 LED Pixels Per Meter | RGB Luminous Flux Per Meter | Max Power Per RGB Channel |
| YS-RNCOBRGB420C10D 420LEDs/M RGB Pixel COB LED Strip |
420 LEDs/M | 100mm cuttable | 15W (1m) | 15W (1m), 58W (5m) | 0.61A (1m), 2.42A (5m) | 10 paragraphs (1m) | R: 100lm/m, G: 450lm/m, B: 60lm/m | R: 5W, G: 5W, B: 5W |
|
YS-RNCOBRGB720C10D 720LEDs/M RGB Pixel COB LED Strip
|
720 LEDs/M | 50mm fine cuttable | 19W (1m) | 18W (1m), 72W (5m) | 0.79A (1m), 2.42A (5m) | 20 paragraphs (1m) | R: 130lm/m, G: 585lm/m, B: 78lm/m | R: 6.5W, G: 6.5W, B: 6.5W |

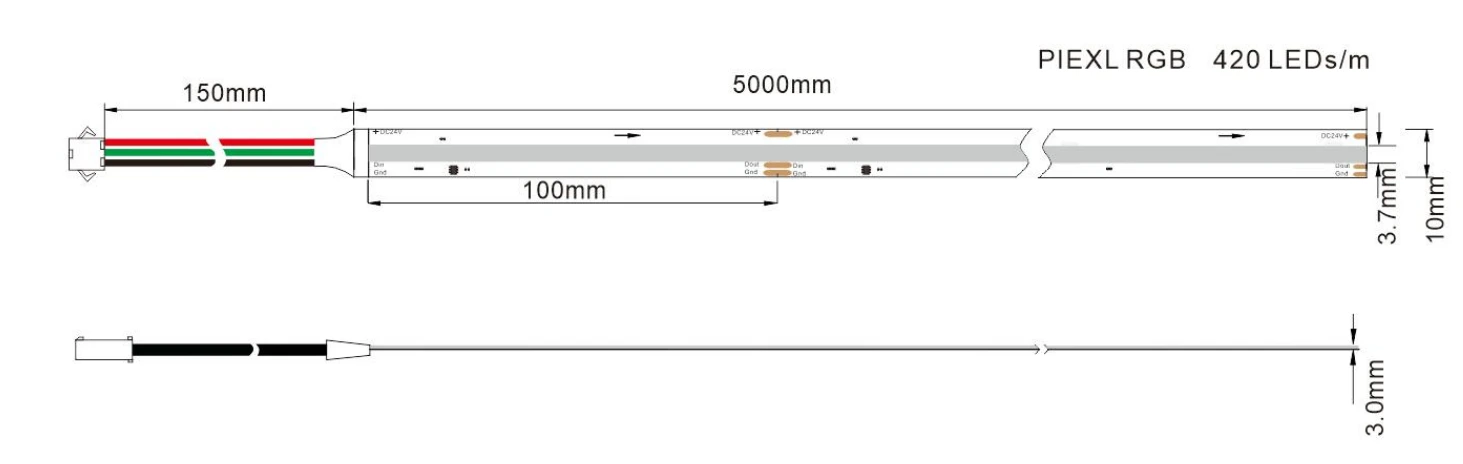

Addressable RGB COB LED Strip Light Dimensions

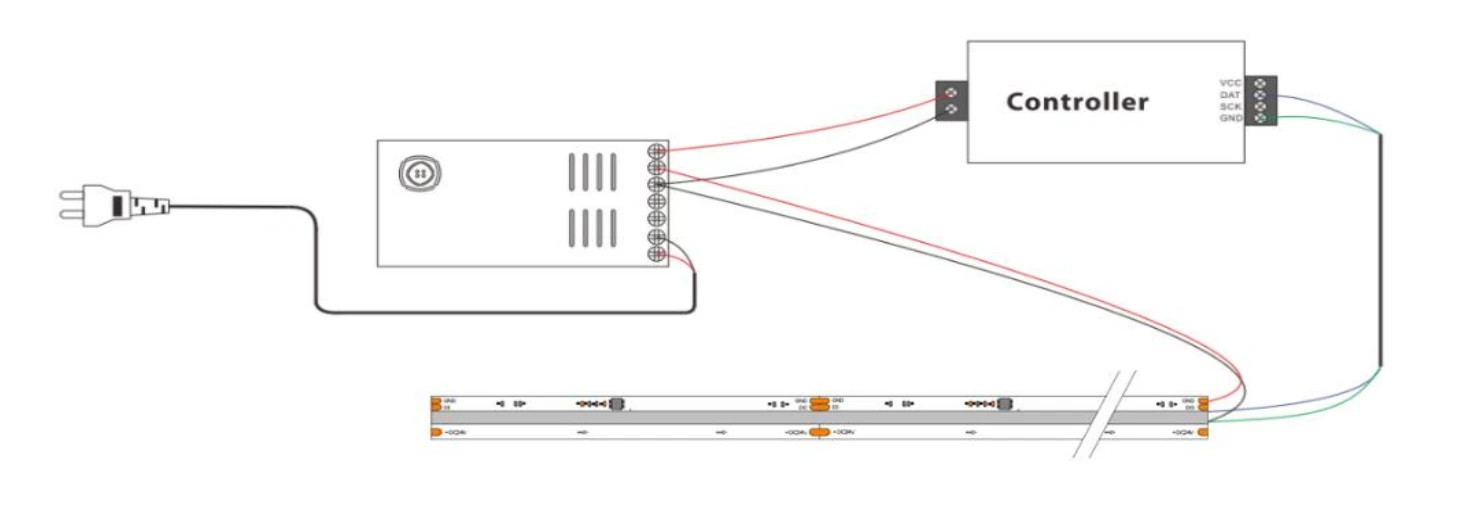

Addressable RGB COB LED Strip Light Wiring Diagram & Installation Guide
Addressable COB RGB LED Strip Lights LED Controller Selection and Specification
| Picture | Model No. | Working voltage | Working current | Working Temp | Dimension | Feature | ||
 |
LED Remote Control SP648E |
DC5V~24V | 12mA~25mA | -20~60 °C | 55*26*12mm | Support App control and2.4G remote control | Support up to 600 single-wire RZ RGB LED driver ICs | Built-in a variety of music and dynamic effects, support effects pause, multi-parameter adiustable |
 |
LED Remote Control SP649E |
Support up to 450 single-wire RZ RGB LED driver ICs | ||||||
| Picture | Model No. | Operating temperature | Operating power |
Power consumption |
Data transmission port |
Weight |
Dimensions |
|
 |
LED Controller K1000-C Max 1*512 pixels (DMX)/ 1024 pixels (SPI) |
-30～85℃ |
DC5V ‐24V |
2W | 3pin wiring terminal |
0.35 KG | 159*89*24mm | |
 |
LED Controller K-4000C Max 4*512 pixels (DMX)/ 1024 pixels (SPI) |
-20～75℃ |
DC12V ‐24V |
5W | 3pin wiring terminal |
0.8 KG | 215*146*30mm | |
 |
LED Controller K-8000C Max 8*512 pixels (DMX)/ 1024 pixels (SPI) |
-20～85℃ |
DC 5V or DC 12-24V |
5W | 3pin wiring terminal |
0.8 KG | 180*120*30mm | |
Optional Addressable RGB COB LED Strip Light Accessories and Connectors
| Accessory Name | Picture | Dimension | Functional Description |
| Wire Board Connector |  |
12*12*5.2mm | 10MM-3P solderless connector (wire-to-board) \ Compatible with 20 and 22AWG wires\20#(5A); 22#(4A)\Applicable to bare board 10mmwidelight strip |
| Board-to-Board Connectors |  |
12*12*5.2mm | 10MM-3P solderless connector (boardtoboard) \ Applicable to bare board 10mmwide striplights |
Click here to request a free quote of YS-RNCOBRGB420C10D LED strip lights

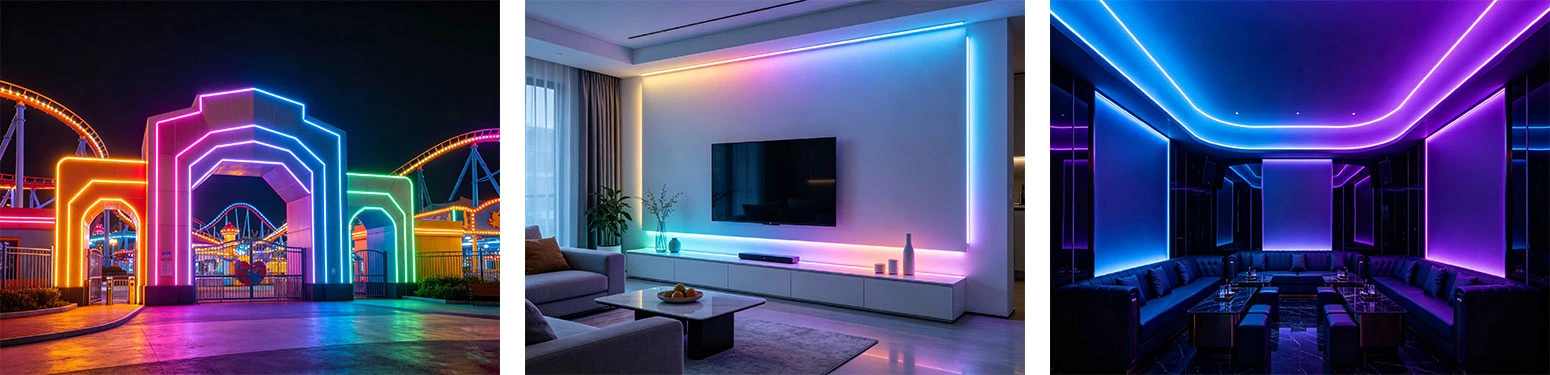

Recommended Applications for Addressable RGB COB LED Strip Light
1. Bars and Clubs
This strip is a very good fit for bars and clubs because pixel RGB effects can create moving color scenes, flowing highlights and eye-catching atmosphere lighting. It helps the space feel more active and more visually interesting.
2. Entertainment and Game Rooms
It also works well for game rooms, amusement spaces and entertainment areas where lighting is part of the overall experience. The chasing effect gives the space more energy, while the COB structure keeps the light line smoother and cleaner.
3. Indoor Decorative Lighting
You can use it for indoor decorative lighting in homes, shops, display spaces and creative interiors. The programmable RGB effect makes it useful when you want the lighting to stand out as part of the room design.
Waterproof & IP Protection Options for COB LED Strip Lights(Based on Different Widths)
| Picture |  |
 |
 |
 |
 |
 |
| Description | Silicone extrusion series | Hollow transparent silicone Series | Hollow dual-color silicone extrusion series | Hollow arc-shaped silicone extrusion series | Silicone extrusion series | Solid transparent silicone extrusion series |
| IP Rate | IP65 | IP67 | IP67 | IP67 | IP67 | IP68 |
| Applicable to | For 5mm PCB Width COB Strip |
For 8mm/10mm/12mm PCB Width COB Strip |
For 10mm PCB Width COB Strip | For 8mm PCB Width COB Strip | For 3mm PCB Width COB Strip | For 8mm/10mm/12mm PCB Width COB Strip |

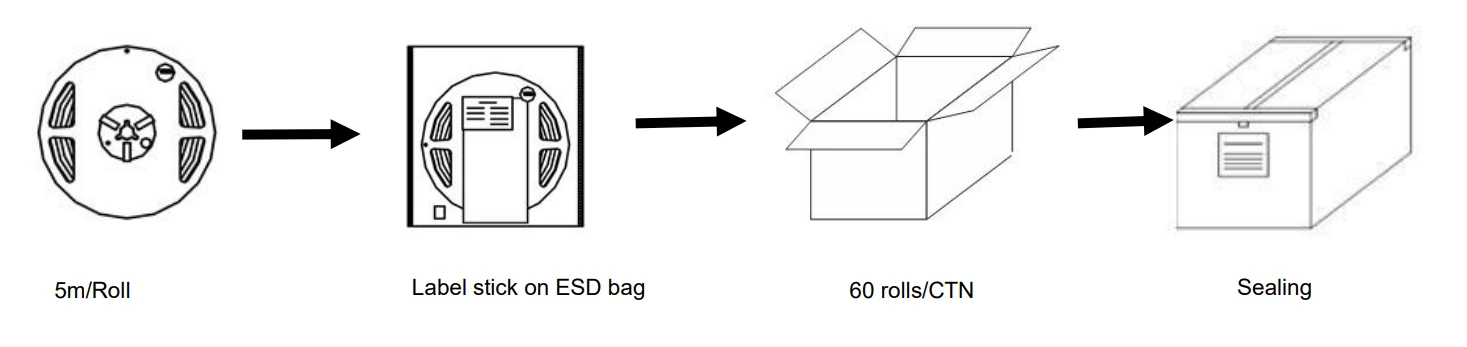

Packaging & Shipping Information for Addressable RGB COB LED Strip Light
| Item No. |
Qty per Rolls(m) |
Qty per Carton(m) |
Total Weight(kg) |
Dimension of outer carton（mm) | ||
| Length | Width | Height | ||||
| YS-RNCOBRGB420C10D | 5 | 300 | 8.5 | 480 | 480 | 260 |
Professional Addressable RGB COB LED Strip Lights Manufacturer & Supplier
Founded in 2013, YESUN LED is a Shenzhen-based manufacturer specializing in LED signage and commercial lighting solutions. With 5,000㎡ of automated factory space, dedicated SMT lines, and strict full-process QC, we support OEM/ODM projects for customers in over 100 countries. To learn more about our team, factory, and production capabilities, please visit our About Us page.
Product Certifications & Compliance
Our products comply with international standards including UL, ETL, CE, and RoHS certifications to support different market requirements.
For complete certification files and downloadable documents, please visit our Certificates Download Center.
Addressable RGB COB LED Strip Lights Quality Control Process
We apply strict quality inspection standards throughout production to ensure stable performance and reliable quality before shipment.
