Product

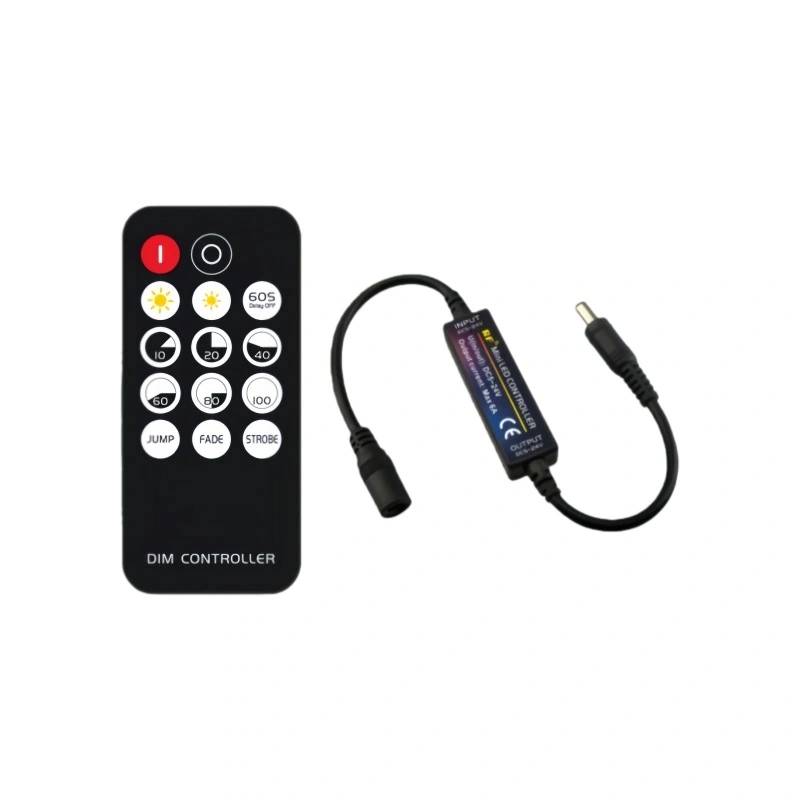

Module NO. RF-M1

• Single gross weight: 0.03Kg

• Static power consumption: <1W

• Connection mode: common anode

• Maximum current: 6A

• Supply voltage: DC5V-24V

• Output channel: <6A*1Channel

• Output power: 12V<72W; 24V<144W

• Anti-static bag packaging size: 130*90mm

Module NO. YS-WP-12500 / YS-WP-24500

• Dimension: 260*92*37cm

• Max Power: 500W

• Input Voltage: 175-264V / 100-130V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.6

• Efficiency: 91%

• Output Current: Max 41.7A / Max 20.8A

• IP Rate: IP67

• Warranty: 5 Years

Module NO. YSD-60WUGF-12TL / YSD-60WUGF-24TL

• Dimension: 186*60*20.5cm

• Max Power: 60W

• Input Voltage: 100-277V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.95/230Vac, at full load

• Efficiency: 88%

• Output Current: Max 5A / Max 2.5A

• IP Rate: IP67

• Warranty: 5 Years

Module NO. YSD-100WHCF-12 / YSD-100WHCF-24

• Dimension: 217*42*23.8cm

• Max Power: 100W

• Input Voltage: 100-130V or 176-264V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.55/115Vac, at full load

• Efficiency: 85%

• Output Current: Max 8.3A / Max 4.17A

• IP Rate: IP67

• Warranty: 5 Years

Module NO. YSD-150WHCF-12 / YSD-150WHCF-24

• Dimension: 217*42*23.8cm

• Max Power: 150W

• Input Voltage: 100-130V or 176-264V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.55/230Vac, at full load

• Efficiency: 91%

• Output Current: Max 12.5A / Max 6.25A

• IP Rate: IP67

• Warranty: 5 Years

Module NO. YSD-200WHCF-12 / YSD-200WHCF-24

• Dimension: 251*44*23.8cm

• Max Power: 200W

• Input Voltage: 100-130V or 176-264V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.55/230Vac, at full load

• Efficiency: 92%

• Output Current: Max 16.7A / Max 8.33A

• IP Rate: IP67

• Warranty: 5 Years

Module NO. YSD-300WHCF-12 / YSD-300WHCF-24

• Dimension: 257*50.5*32cm

• Max Power: 300W

• Input Voltage: 100-130V or 176-264V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.55/230Vac, at full load

• Efficiency: 92%

• Output Current: Max 25A / Max 12.5A

• IP Rate: IP67

• Warranty: 5 Years

• Module NO. YS-RNCOBRGB720C10SVD

• LED Quantity: 720 LEDS/m

• Cutting Unit: 50 mm

• LED Pixel: 20pixel/m

• Small luminous surface, side bending

• Colorful group control, dynamic change, various color changes

Module NO. YS-ZC22835D-W09T/YS-ZC23030D-W09T

• Power (W/PCS): 12W or 18W

• LED Type: SMD 2835 or SMD3030

• LED Quantity: 9LEDs

• Viewing Angle(°): 15*55°

• Colors available: Warm White / Pure White / Cold White / Neutral White

• Adopting constant current design, the brightness is consistent from beginning to end
