Features of 2LEDs Mini LED Sign Module
1. Two-LED Configuration for Higher Light Output
The YS-M96321-W integrates two SMD2835 LEDs into one compact module, providing 66–70 lumens at 0.4W per piece. Compared with single-LED mini modules, this configuration offers a higher light output while retaining a slim form factor, making it useful when additional brightness is required within small illuminated characters.
2. Compact Housing with an Extended Module Layout
With dimensions of only 25.6 × 8.5 × 7.5 mm, this module maintains a narrow profile while incorporating two LEDs into the housing. The elongated layout provides a practical way to distribute light within small letter structures without requiring a bulky module body.
3. 140° Optical Distribution for Consistent Sign Illumination
The integrated 140° wide-angle lens spreads light over a broad area inside the illuminated character. This optical design helps soften concentrated light and supports a more balanced appearance across translucent sign faces, particularly when the available installation depth is limited.
4. Individually Cuttable for Custom Module Placement
Each unit is individually cuttable, allowing the installer to determine the number and position of modules according to the actual shape of a letter or logo. This is particularly useful for characters with narrow sections, curved outlines or irregular internal spaces where standardized module spacing may not be practical.

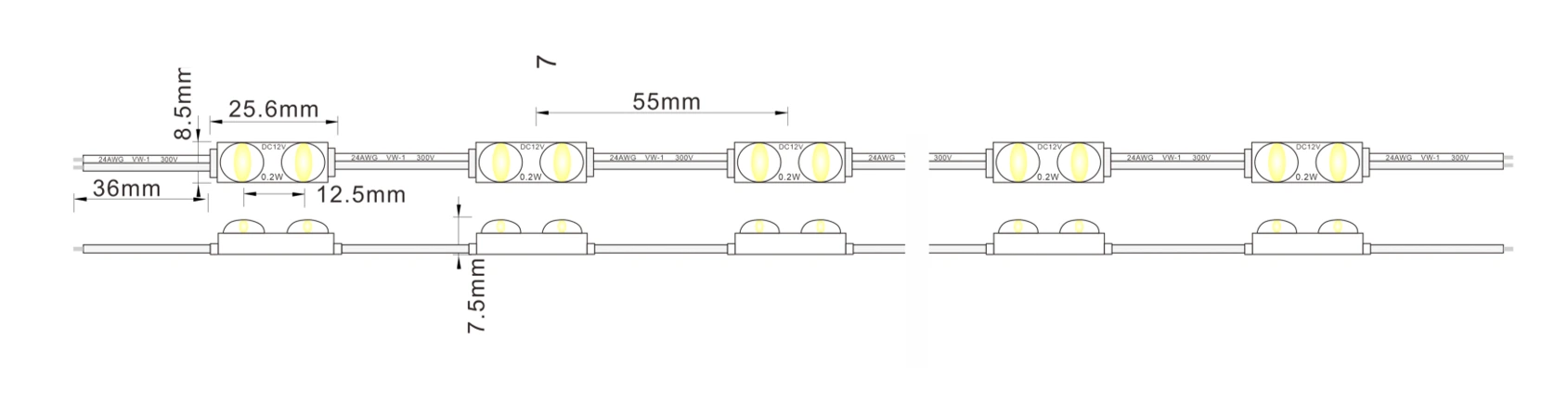

2LEDs Mini LED Sign Module Dimensions
2LEDs Mini LED Sign Module Typical Lighting Test Data
Below are typical lighting performance test results for our 2LEDs mini LED module, measured under standard conditions for backlit sign and light box applications. This reference table helps you determine optimal module spacing, estimate required units per square meter, and calculate total power consumption based on your light box thickness. Surface illuminance values are for guidance only — actual results may differ slightly based on light box material and internal reflectance.
| Light Box Thickness(mm) | Module Spacing Length(mm) | Module Spacing Width(mm) | Surface illuminance(Lx) | Number of modules(pcs/㎡) | Power per square meter(W/㎡) |
| 20 | 33 | 18 | 27000-30000 | 1650 | 660 |
| 30 | 43 | 25 | 19000-24000 | 920 | 275.2 |
| 40 | 54.6 | 30 | 11000-13000 | 594 | 237.6 |
| 50 | 54.6 | 30 | 9000-10000 | 594 | 237.6 |
| 60 | 54.6 | 30 | 8000-8500 | 594 | 237.6 |

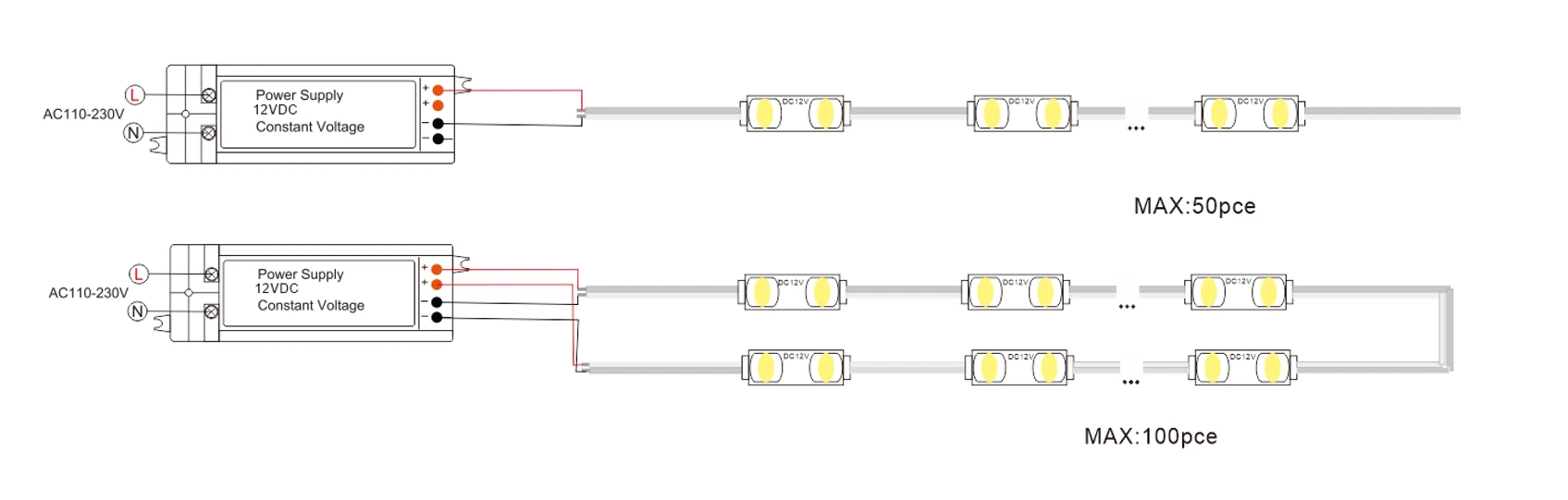

2LEDs Mini LED Sign Module Wiring Diagram & Installation Guide
| Demonstration of Simple Installation Steps for Channel Letters | |||
|
Step 1 Clear away any debris from the mounting surface |
Step 2 Measure the thickness of the mini-letters and, referring to the lighting layout data, determine the installation spacing and positioning for the modules |
Step 3 Peel off the release paper from the double-sided tape on the back of the module, lightly adhere it to the mounting backplate to position it for screw installation, and connect auxiliary power based on the number of cascaded units |
Step 4 Connect the power supply to the main input line of the mini-letter, check to ensure the wiring is correct, and then power it on for testing |
 |
 |
 |
 |
Recommended Applications for 2LEDs Mini LED Sign Module
1. Resin Letter Signage
The two-LED configuration makes this module suitable for resin illuminated letters that require more light output from each individual lighting point. The 140° optical system helps spread illumination behind translucent resin faces for a balanced visual effect.
2. Mini Channel Letter Projects
For mini channel letters with limited internal space, the slim 25.6 × 8.5 × 7.5 mm structure provides greater freedom when arranging lighting points. The individual cutting capability also makes it easier to adapt the module layout to different character designs.
3. Small Business Logos and Brand Marks
The module can be incorporated into illuminated logos, brand marks and customized lettering where different character shapes require different LED positions. Installers can arrange individual modules around curves, corners and narrow letter sections to create a tailored lighting layout.
4. Custom-Shaped Illuminated Signs
Packaging & Shipping Information for 2LEDs Mini LED Sign Module
| Item No. | Qty Per bag（PCS） | Per/Carton(Bag) | Total Qty(Bag) | GK（Kg/Carton） | Dimension of outer carton（mm） | ||
| L | W | H | |||||
| YS-M96321-W |
500 |
20 |
10000 | 10.5 | 520 | 300 | 280 |
