Features of 6-LED SMD2835 High Brightness LED Module
1. High 660–720lm Output from a 6-LED Design
This model uses six SMD2835 LEDs in one module and delivers 660–720lm according to the supplied specifications. That gives it a strong output level for illuminated letters and light boxes without requiring a very large number of individual lighting points. For sign manufacturers, this can make layout planning easier because each unit contributes a meaningful amount of light. It is particularly useful when the sign face is larger and the lighting system needs reliable overall brightness rather than only decorative accent lighting.
2. 175° Wide-Angle Lens for Broad Illumination
The module uses a 175° wide-angle lens, allowing the light to spread broadly across the illuminated face. This type of optical design is useful for conventional sign backlighting because it does not rely on a narrow beam traveling a long distance. The wider distribution can make the lighting layout less restrictive and can help produce a more even appearance when the module spacing and cabinet depth are properly matched.
3. PC + ABS Injection and Potting Glue Construction
The housing combines PC+ABS injection molding with a potting glue process, giving the module a finished appearance while adding protection around the internal components. This construction also keeps the unit relatively lightweight for its six-LED configuration. For sign manufacturers, the combination is practical because the module can be repeatedly handled during installation without exposing the LED assembly like a bare PCB.
4. Aluminum Substrate for Heat Dissipation
An aluminum substrate is used to help transfer heat away from the LED assembly. This is especially relevant for a 6W module because the product can remain illuminated for long operating periods inside a relatively enclosed sign cabinet. Good thermal management helps the lighting system maintain more stable operating conditions and is an important part of designing a commercial sign that will be used for years rather than short-term display.

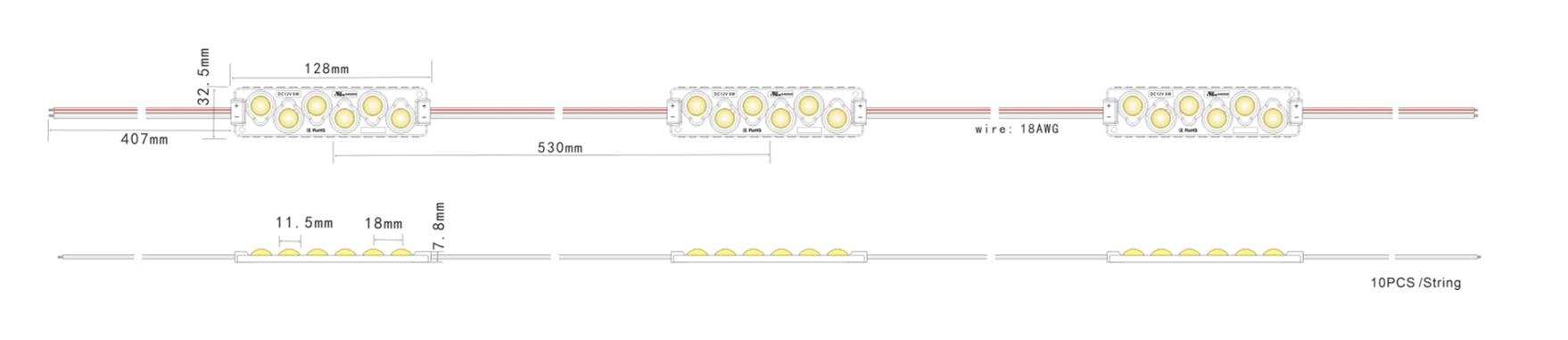

6-LED SMD2835 High Brightness LED Module Dimensions
6-LED SMD2835 High Brightness LED Module Typical Lighting Test Data
We tested our 6-LED SMD2835 high-brightness module to map out the relationship between light box depth, module spacing, unit count and surface brightness.
Running on 12V DC with a 175° beam angle and IP65 protection, the module performs reliably across indoor retail displays, outdoor storefronts, backlit airport signage, subway light boxes and slim retail applications. When module pitch is properly matched to cabinet depth, you get uniform brightness across the entire sign face without overbuilding: deeper boxes allow wider spacing and lower module density, while thinner enclosures require closer pitch to eliminate hotspots.
The table also includes wattage per square meter, so you can calculate total power draw and transformer specifications upfront. The end result is consistent, even illumination with a leaner bill of materials.
| Light Box Thickness(mm) | Module Spacing(mm) | Number of modules(pcs/m²) | Surface illuminance(Lx) | Power per square meter(W/㎡) |
| 80 | DX=300, DY=200 | 14 | 4500~5000 | 84 |
| 100 | DX=350, DY=300 | 9 | 1600~1800 | 54 |
| 120 | DX=500, DY=450 | 4 | 1200~1300 | 24 |
| 150 | DX=530, DY=530 | 4 | 1000~1100 | 24 |

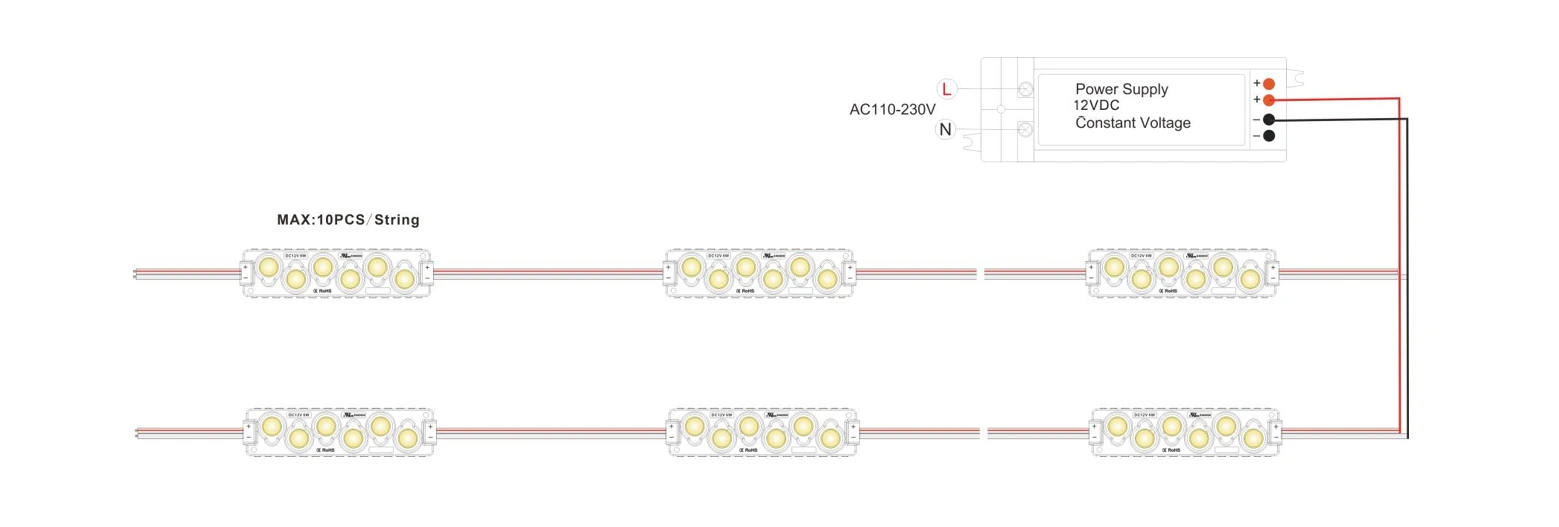

6-LED SMD2835 High Brightness LED Module Wiring Diagram & Installation Guide

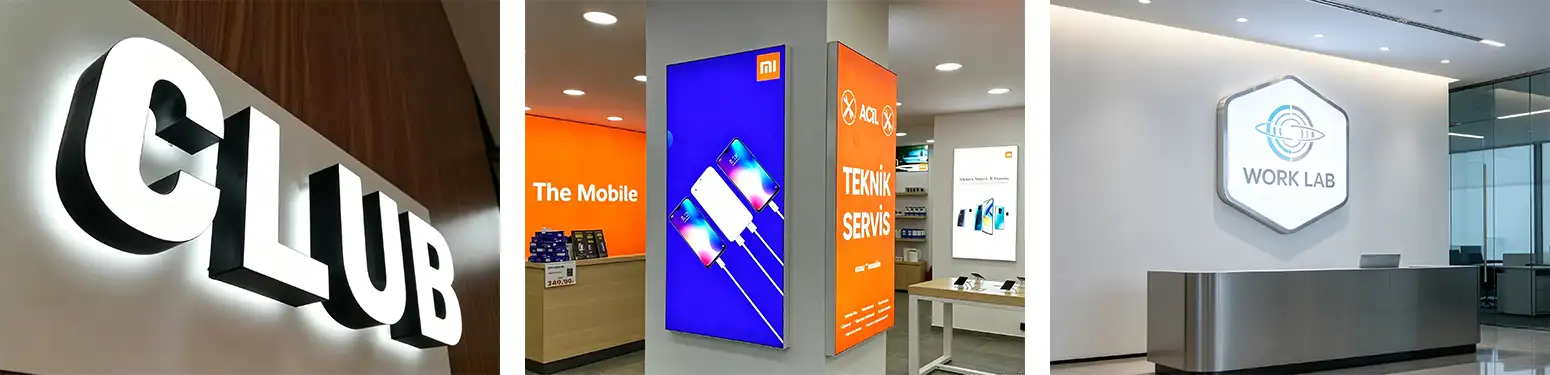

Recommended Applications for 6-LED SMD2835 High Brightness LED Module
1. Single-Sided Advertising Light Boxes
This model is particularly well suited to single-sided advertising light boxes in the 8–15cm depth range. The 175° lens spreads the output broadly behind the front panel, while the 660–720lm module output gives each lighting point a strong contribution to the overall brightness. For a larger advertising cabinet, that combination can make the internal layout easier to manage than using a large number of low-output modules.
2. Medium-Depth Illuminated Letters
For illuminated letters around 8–15cm deep, the module provides enough cabinet depth for the light to spread before reaching the face. The six-LED arrangement gives more output from each installation point, which can be useful on larger characters where a smaller module would require many more units. The rectangular body also gives installers another layout option when working around different letter shapes.
3. Metro and Subway Signage
Metro and subway environments are also listed in the product applications. These locations commonly use illuminated advertising panels, directional signs and commercial displays. The 660–720lm output can provide a strong lighting level for medium-depth sign cabinets, while the wide beam is useful where the illuminated surface needs broad coverage rather than a focused lighting effect.
4. Backlit Brand Logos

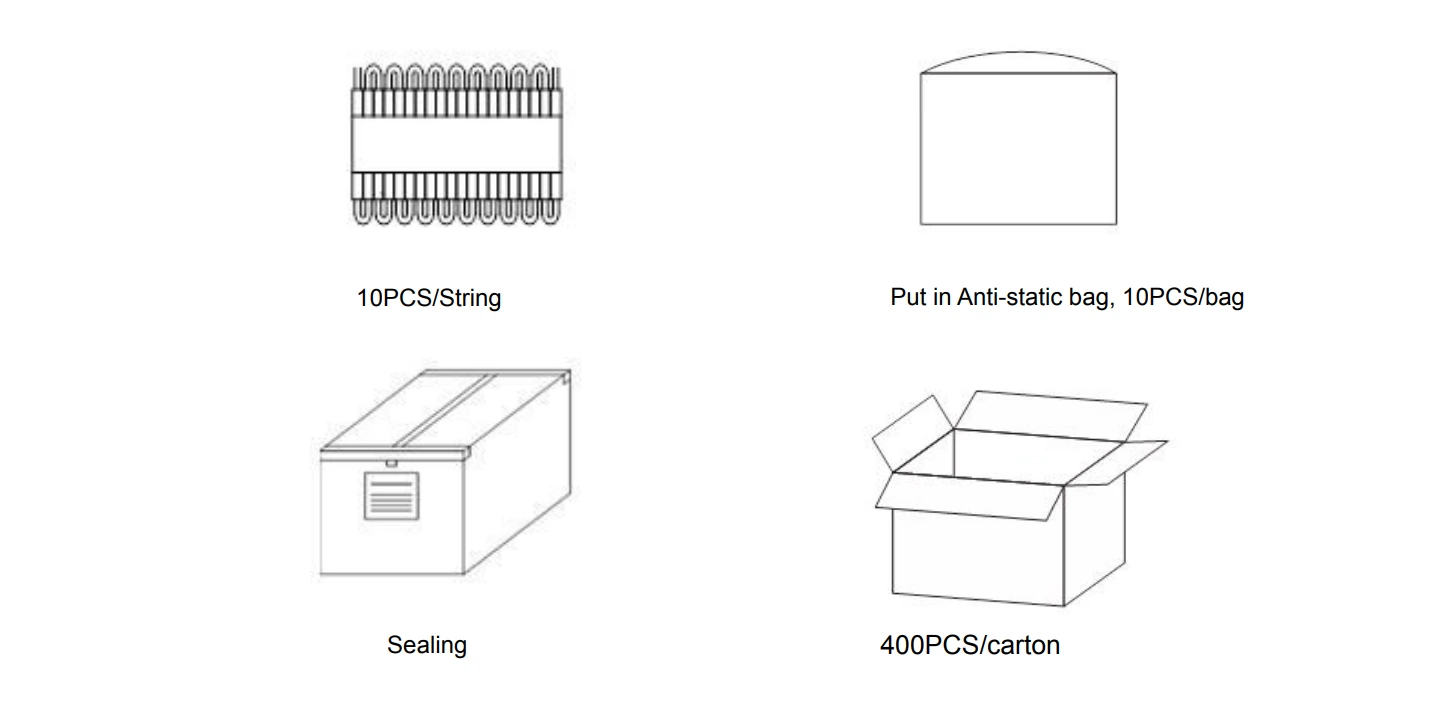

Packaging & Shipping Information for 6-LED SMD2835 High Brightness LED Module
| Item No. | Qty Per String（PCS） | Quanty(bag) | Total Qty(Pcs) | Total Weight(Kg) | Quter box size(mm) | ||
| L | W | H | |||||
| YS-MP2761-W |
10 |
40 |
400 | 16.5 | 520 | 300 | 360 |
Professional 6-LED SMD2835 High Brightness LED Module Manufacturer & Supplier
Founded in 2013, YESUN LED is a Shenzhen-based manufacturer specializing in LED signage and commercial lighting solutions. With 5,000㎡ of automated factory space, dedicated SMT lines, and strict full-process QC, we support OEM/ODM projects for customers in over 100 countries. To learn more about our team, factory, and production capabilities.
Product Certifications & Compliance
Our products comply with international standards including UL, ETL, CE, and RoHS certifications to support different market requirements.
6-LED SMD2835 High Brightness LED Module Quality Control Process
We apply strict quality inspection standards throughout production to ensure stable performance and reliable quality before shipment.
