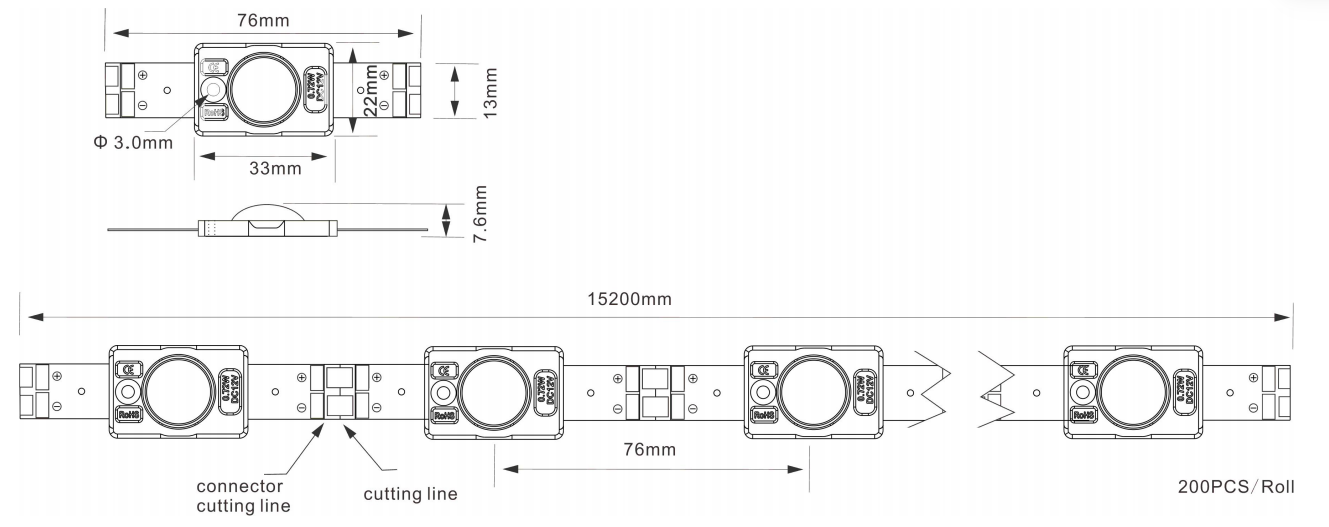

The YS-MA8311-12 waterproof LED module features a compact dimension of 33227.6 mm and adopts a single 2835 LED design with 12VDC constant current power supply. It is equipped with a 175° wide-angle lens, perfectly tailored for 4 to 15 cm single-sided light boxes in various commercial scenarios.
This module applies FPC conductor instead of traditional wiring, making the overall installation neater, simpler and more aesthetic. With an ultra-wide 170° lighting angle, it delivers soft and even luminous performance. The flexible bendable structure fits various irregular and customized light box shapes, meeting diverse modelling demands. It adopts professional constant current control, supporting up to 100 pieces cascaded connection without obvious brightness difference between the head and the tail, and passes CE and RoHS certification for safe and stable use.
Two practical installation methods including adhesive mounting and card slot mounting greatly simplify on-site operation and save construction time. Widely applicable for single-sided light box lighting projects in airports, subways, banks, buildings and shopping malls, it ensures long-term consistent lighting effect and reliable commercial display performance.
Ready to make a big impression in a backlight module? Experience the YS-M56531 difference today.
Available Colors (white):
Features and Benefits:
- Adopting FPC conductive design replaces traditional wiring for cleaner and more convenient installation.
- Built with a 175° ultra-wide lens to realize uniform and soft overall light emission.
- Flexible bendable structure adapts to different sizes and irregular shaped light boxes perfectly.
- Constant current solution supports 100-piece cascading with no brightness deviation from start to end.
- Dual installation options available and certified by CE and RoHS for extensive commercial applications.
Applications and Use:
-
outdoor Single-Side light box (4-15cm depth)
-
Channel letters, metal letters and light boxes
-
Decorative Lighting
-
Illuminated Branding Elements
