Features of YS-M84331 SMD2835 LED Modules
1. High-Efficiency SMD2835 LED Chips
Equipped with premium SMD2835 LEDs, this 3-LED module delivers a bright 40-50lm output per unit, outperforming standard 3528 modules in light efficiency. The consistent, glare-free illumination ensures even brightness across large sign surfaces, eliminating dark spots for professional-grade backlighting.
2. IP65 Waterproof Injection-Molded Housing
Built with a rugged, injection-molded ABS+FR4 housing, this LED module boasts an IP65 waterproof rating, making it suitable for both indoor and outdoor installations. The fully sealed design protects against dust, moisture, and harsh weather, ensuring reliable performance in storefronts, malls, and outdoor commercial spaces.
3. Flexible Series Connection (Up to 50 Modules
Designed for large-scale projects, this LED module supports series connection of up to 50 units per string (vs. standard 20 units), minimizing wiring complexity and installation time. The daisy-chain design simplifies power distribution, making it ideal for long signage runs and multi-panel light boxes.
4. Multiple Color Temperature Options
Available in pure white (6000-6500K), warm white (3000-3300K), and cool white (10000-12000K), this LED module lets you match the lighting to your brand’s aesthetic and signage requirements. Custom color options are also available for specialized projects, ensuring flexibility for every design.

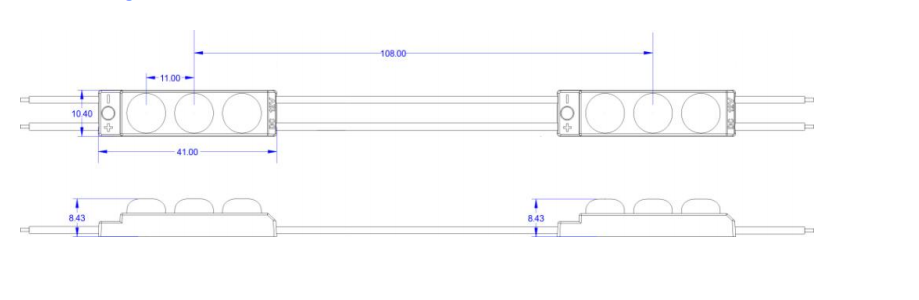

YS-M84331 SMD2835 LED Modules Dimensions(mm)

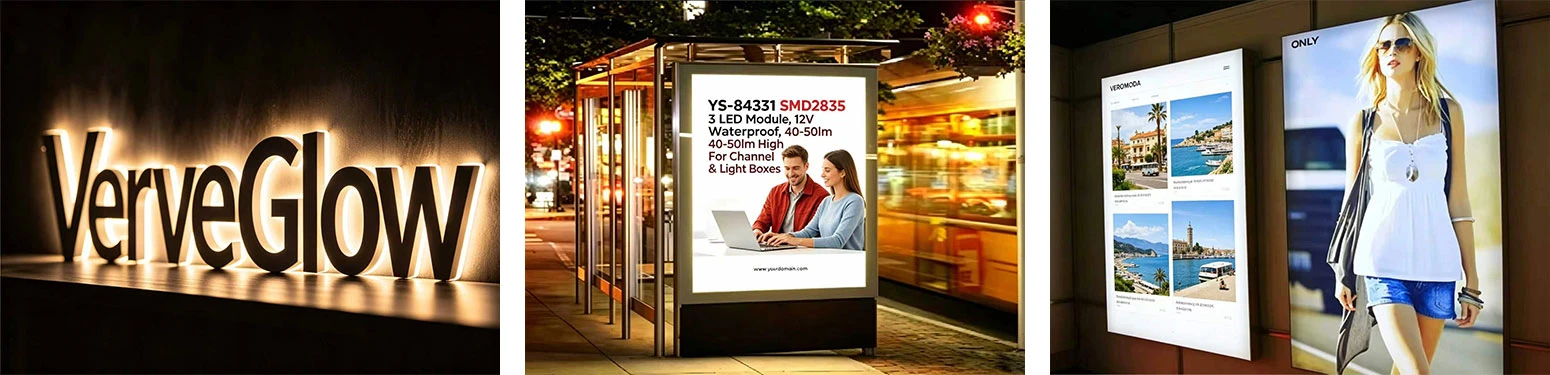

Applications of YS-M84331 SMD2835 LED Modules
1. Indoor & Outdoor Advertising Light Boxes
Perfect for backlighting indoor mall light boxes, outdoor billboards, and promotional displays, this high-lumen LED module provides consistent, glare-free light that showcases your marketing content clearly. The 120° beam angle ensures even illumination across large light box panels, eliminating dark corners and hotspots.
2. Channel Letters & 3D Metal Signs
Specifically engineered for 3-12cm deep channel letters and 3D metal signs, this SMD2835 LED module delivers bright, uniform backlighting that enhances visibility day and night. The IP65 waterproof rating ensures durability for outdoor storefront signs, while the wide beam angle eliminates uneven glow on curved or multi-dimensional surfaces.
3. Commercial Storefront & Building Signage
Ideal for retail storefronts, office buildings, and restaurant signage, this 12V LED module combines high brightness with weatherproof performance to attract customer attention. The long-lasting design and low maintenance requirements make it a cost-effective choice for high-traffic commercial environments.
Packing of YS-M84331 SMD2835 LED Modules
1. Carton Dimension: 50.5*28*34cm
2. 20 modules per string, 10 strings per bag, 30bags per outer carton, 6000 modules in total
3. Net Weight（N.W）：20KG（1±10%)
4. Gross Weight（G.W): 21KG（1±10%)
5. The actual packed quantity and weight subject to change without prior notice.
Professional YS-M84331 SMD2835 LED Modules Manufacturer & Supplier
Founded in 2013, YESUN LED is a Shenzhen-based manufacturer specializing in LED signage and commercial lighting solutions. With 5,000㎡ of automated factory space, dedicated SMT lines, and strict full-process QC, we support OEM/ODM projects for customers in over 100 countries. To learn more about our team, factory, and production capabilities.
Product Certifications & Compliance
Our products comply with international standards including UL, ETL, CE, and RoHS certifications to support different market requirements.
YS-M84331 SMD2835 LED Modules Quality Control Process
We apply strict quality inspection standards throughout production to ensure stable performance and reliable quality before shipment.
