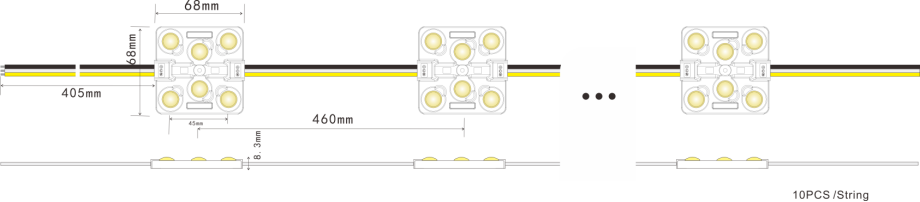

YS-MB8361-TW is a high-performance 175° waterproof constant voltage DC12V matrix LED module, designed with 6 high-efficiency SMD2835 LED chips, delivering an outstanding luminous efficacy of 100 lm/W. This CCT dimmable module combines 2700K warm white and 6500K cool white LEDs, enabling flexible color temperature adjustment to meet diverse lighting needs. With a compact size of 68*68*8.3mm, it is the ideal lighting solution for illuminated signs and light boxes.
Uses PVC injection molding and epoxy resin coating process, creating lightweight, visually pleasing modules with reliable structural stability.
CE and RoHS approved, with strict quality control to ensure stable and long-lasting performance.
Available Colors (CCTs):
Features and Benefits:
- high-light-efficiency 2835 dual-color temperature LED lamp beads, and the product light efficiency can reach 100lm/W;;
- Adopt aluminum PCB board, good heat sink;
- 50,000 hour lifespan (8 hours/day for 17 years);
- made of PVC injection molding and epoxy resin coating process;
- Single module as a unit can be cut accordingly;
- Certification: CE and RoHs and UL approved.
Applications and Use:
-
8-15cm single-sided light boxes for advertising signage in airports, subways, banks, and commercial buildings
-
Shopping mall display lighting, storefront signage, and channel letter lighting
-
Indoor and semi-outdoor advertising light boxes, billboards, and decorative lighting projects
