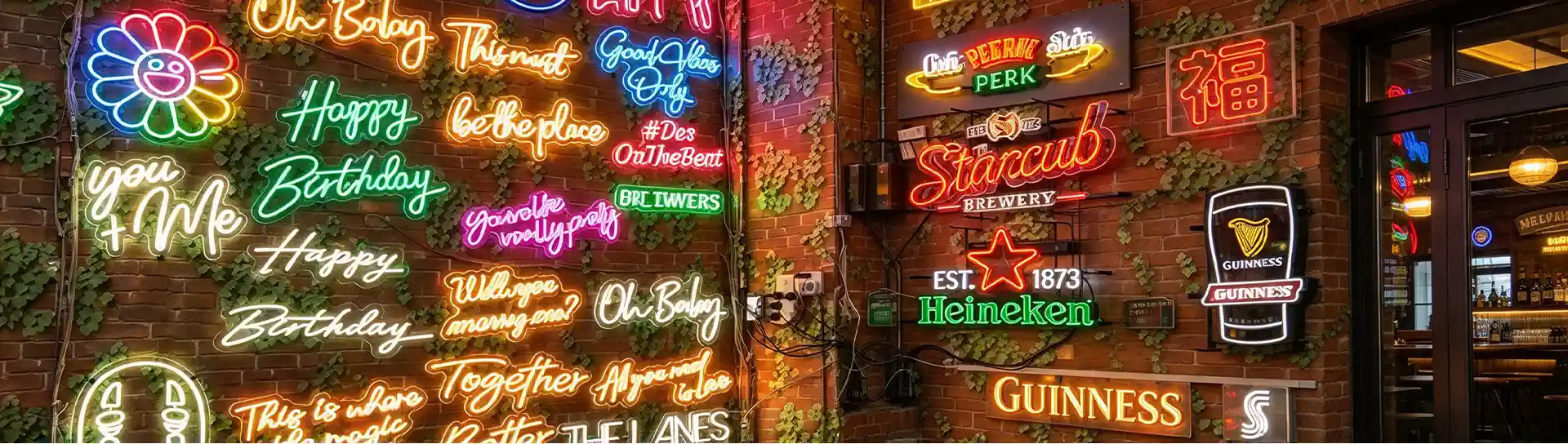

What Is a Complete LED Neon Sign Board?
A complete LED neon sign board is a finished sign unit that combines the illuminated neon design with a prepared backboard and the accessories needed for mounting and power connection. Unlike a standalone neon LED strip, it is supplied as a complete sign product rather than as a lighting component for separate sign fabrication.
The main difference is the level of assembly required. With a complete LED neon sign board, the backboard and lighting are prepared together as one finished product. Buyers do not need to separately design and fabricate the sign structure before installation. By comparison, our separable neon LED strip for signs is designed as a flexible lighting component for buyers who want to create their own signboard, choose their own backboard or complete the sign assembly themselves.
This makes the complete LED neon sign board a suitable choice for buyers looking for a finished neon sign with the sign structure, power accessories and mounting components supplied in one package.
How Do LED Neon Sign Board Colors and Silicone Neon Tubes Work Together?

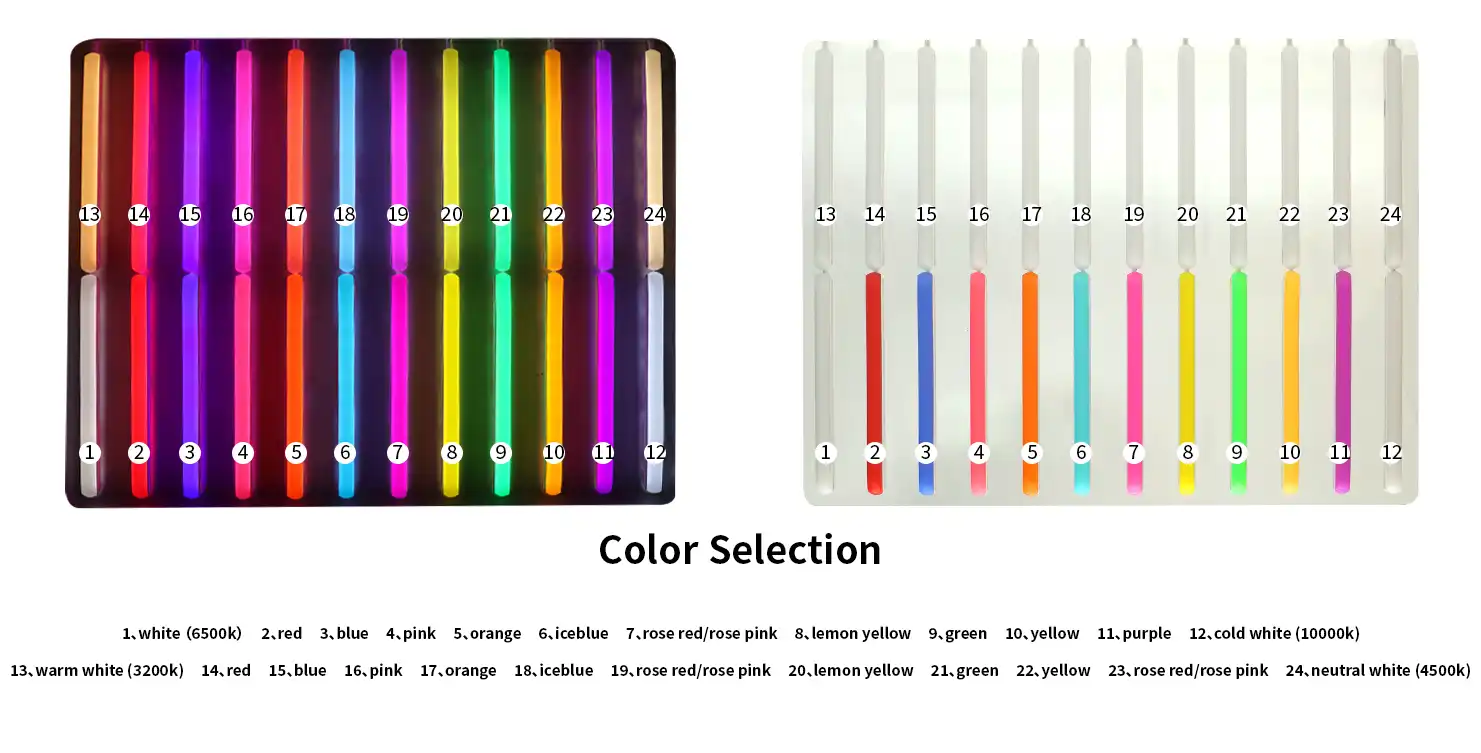

Our LED neon sign boards offer 24 color configurations, including white, warm white, neutral white, cold white, red, blue, pink, orange, ice blue, rose red/rose pink, lemon yellow, green, yellow and purple. The available options are shown in the color selection chart above.
What determines the color of an LED neon sign board?
The illuminated color is mainly determined by the LED light source inside the neon tube. However, the outer silicone neon tube also affects how the sign looks when it is switched off and can influence the depth and softness of the illuminated color.
This is why some color names appear more than once in the 24-option chart. These options are not necessarily duplicate products. In some cases, they use the same LED color but different silicone neon tube colors.
What is the difference between No. 2 red and No. 14 red?
The red options shown in the chart provide a clear example.
No. 2 red: Red LED light source with a red silicone neon tube.
No. 14 red: Red LED light source with a white silicone neon tube.
Both No. 2 and No. 14 display red when the LED neon sign board is switched on because both use red LED light sources. The difference is the color of the silicone neon tube surrounding the light source.
With No. 2, the red silicone neon tube gives the sign a deeper and more saturated red appearance when illuminated. The sign also retains a visible red appearance when it is switched off.
With No. 14, the white silicone neon tube gives the sign a lighter and softer red appearance when illuminated. When the sign is switched off, the outer tube appears white, even though the internal LED light source is red. Once the sign is powered on, it still produces red light.
Why choose the same LED color with a different silicone neon tube?
This design gives buyers more control over both the illuminated and unlit appearance of the complete LED neon sign board.
A colored silicone neon tube can be selected when the sign needs to show a recognizable color even when it is not illuminated. This can help maintain a stronger visual connection between the sign and its selected color during daylight or when the power is switched off.
A white silicone neon tube can be selected when a clean, neutral appearance is preferred while the sign is switched off. The internal LED color remains unchanged, so the sign still displays the selected color when powered on.
The two tube options can also be used to create different visual effects:
• A matching LED color and silicone neon tube can create a stronger, deeper color appearance.
• A white silicone neon tube can create a softer and lighter illuminated effect.
• A colored tube can help the sign remain visually distinctive when it is not lit.
• A white tube can provide a more neutral appearance when the sign is viewed in its unlit state.
• Different tube colors allow buyers to compare the appearance of the sign in both powered-on and powered-off conditions.
How should you choose the color configuration?
When selecting an LED neon sign board color, consider both states of the product:
When the sign is illuminated: the LED light source determines the primary light color.
When the sign is switched off: the silicone neon tube becomes more visible and affects the external appearance.
When the sign is viewed from a distance: the tube color and the illuminated light color work together to affect the overall visual impression.
When the sign is used with a specific backboard: the backboard color can also influence the perceived contrast of the neon sign.
For a custom LED neon sign board, buyers should confirm not only the required LED color, but also whether they prefer a colored silicone neon tube or a white silicone neon tube. This helps ensure that the final sign matches the intended appearance in both illuminated and unlit conditions.
How Does the Custom LED Neon Sign Board Process Work?
A custom LED neon sign board is developed around the buyer's design, dimensions and material requirements. To make the quotation and production details clear from the beginning, please provide the following information:
Backboard dimensions: Specify the required overall width and height of the finished sign board.
LED and silicone neon tube colors: Confirm the required light colors and the preferred silicone neon tube colors. These two elements can affect the sign's appearance when illuminated and when switched off.
Backboard material: Select the required material, such as black PVC or transparent acrylic, according to the design and structural requirements.
Neon sign shape and artwork: Provide the required text, logo, lettering style or overall sign shape.
Backboard surface finish: Specify whether the backboard should have a glossy finish, no additional finish or another confirmed surface treatment.
Vector artwork: A vector file is preferred whenever possible. It provides a clearer reference for the sign outline, lettering, dimensions and color layout, especially for irregular shapes or detailed logos.
What are the steps for ordering a custom LED neon sign board?
1. Submit your customization requirements
The buyer provides the design information, dimensions, color requirements, backboard material, sign shape and surface finish. If available, please send the original vector artwork together with the specifications. This helps YESUN review the design more accurately and identify the main details required for production.
2. Review the requirements and receive a quotation
YESUN reviews the submitted artwork and product requirements, then communicates with the buyer to confirm the sign structure, LED and silicone neon tube colors, backboard material, surface finish and other necessary details. After the requirements are clarified, we provides a quotation based on the confirmed configuration.
3. Confirm the sample order
After the design and quotation are confirmed, a sample order can be arranged for production. The sample is made according to the approved dimensions, materials, colors and artwork so that the buyer can review the actual sign structure and appearance before placing a larger order.
4. Approve the sample for mass production and shipment
Once the sample has been checked and approved, YESUN proceeds with mass production according to the confirmed sample and order specifications. The finished custom LED neon sign boards are then prepared for shipment after production is completed.

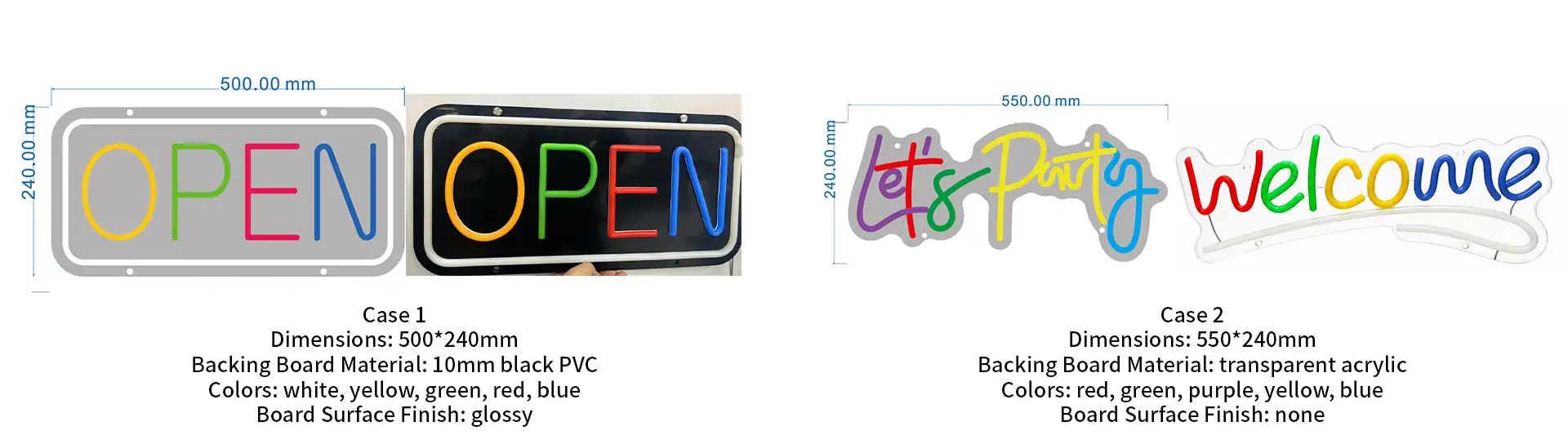

Custom LED Neon Sign Board Examples
The examples shown above illustrate how different specifications can be combined in a custom LED neon sign board:
Case 1: 500 x 240 mm; 10 mm black PVC backboard; white, yellow, green, red and blue LED colors; glossy backboard surface finish.
Case 2: 550 x 240 mm; transparent acrylic backboard; red, green, purple, yellow and blue LED colors; no additional backboard surface finish.
These examples show that customization can involve more than changing the text or logo. The overall dimensions, backboard material, LED color combination, sign outline and backboard surface finish can all be confirmed as part of the product configuration.
For a custom LED neon sign board, the clearest way to begin is to provide the required dimensions, artwork and material preferences together. Once the sample is approved, the confirmed sample becomes the reference for mass production.

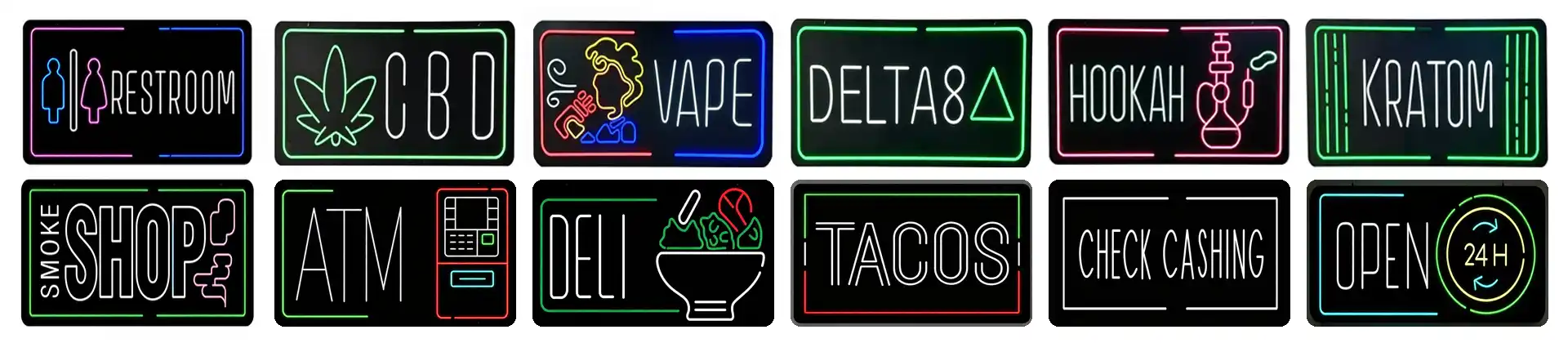

12 Pre-Designed LED Neon Sign Board Styles Available
Choose from 12 pre-designed LED neon sign board styles, including Restroom, CBD, Vape, Delta 8, Hookah, Kratom, Smoke Shop, ATM, Deli, Tacos, Check Cashing and Open 24H. These ready-made neon sign designs provide a convenient starting point for buyers who need a complete LED neon sign board without creating a new design from scratch. Select an existing style and confirm the required color, size and configuration, or use one of these designs as a reference for a custom LED neon sign board.

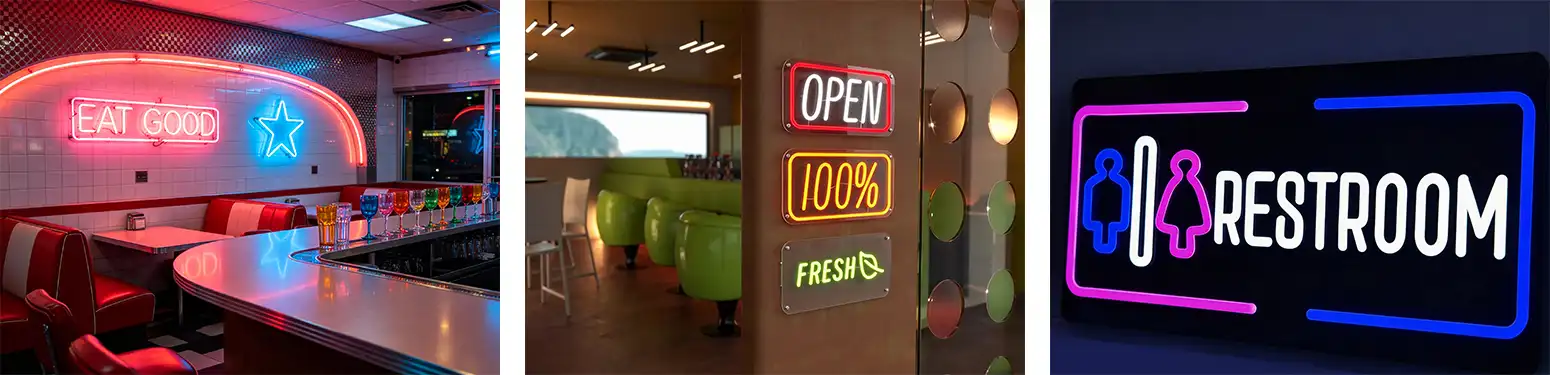

Features of LED Neon Sign Board
1. Complete Ready-to-Install Sign Board
The LED neon lighting is assembled on a finished backboard and supplied as a complete sign board with a power adapter, AC cable and mounting accessories. This reduces the need for separate sign fabrication and component assembly.
2. Custom Backboard Materials and Finishes
The backboard can be customized by size, shape, material and surface finish. Options shown in the custom examples include black PVC with a glossy finish and transparent acrylic with no additional surface treatment.
3. Flexible LED and Silicone Neon Tube Color Selection
The product supports 24 color configurations based on the LED light source and silicone neon tube. Buyers can select a matching or contrasting combination to control the sign’s appearance when illuminated and when switched off.
4. Stock Designs and Custom LED Neon Sign Options
Customer can choose from 12 existing LED neon sign board designs or submit their own text, logo, vector artwork and shape requirements for a custom sign. This provides both ready-made and made-to-order options.

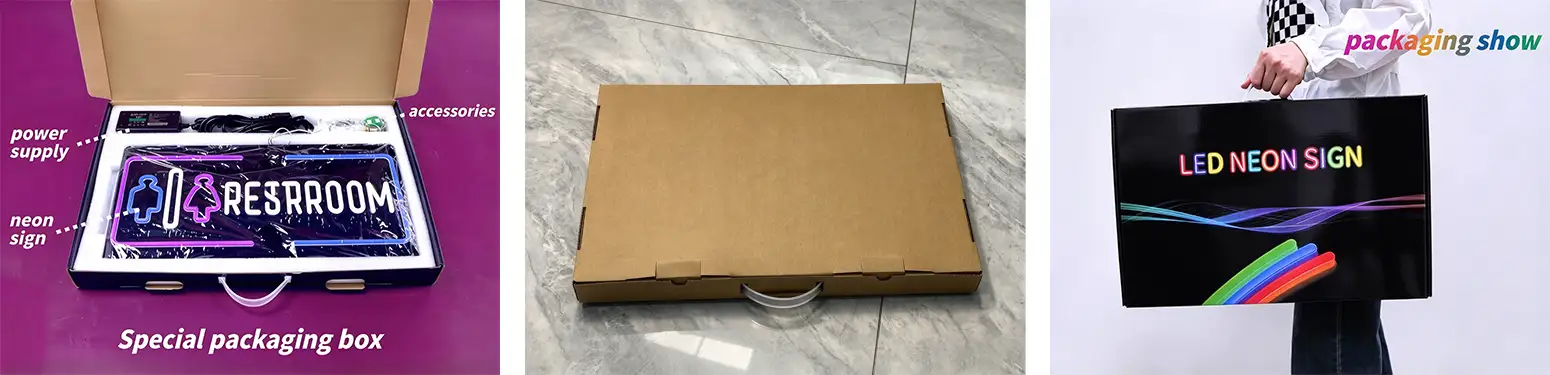

Packaging & Shipping Information for LED Neon Sign Board
| packaging information | QTY per CTN | G.W(Kg) | Quter box size(mm) | |||
| L | W | H | ||||
| This packaging information is for reference only. Different styles may have different packaging sizes and weights |
1 |
11.5 | 590 | 370 | 350 | |
Professional LED Neon Sign Board Manufacturer & Supplier
Founded in 2013, YESUN LED is a Shenzhen-based manufacturer specializing in LED signage and commercial lighting solutions. With 5,000㎡ of automated factory space, dedicated SMT lines, and strict full-process QC, we support OEM/ODM projects for customers in over 100 countries. To learn more about our team, factory, and production capabilities.
Product Certifications & Compliance
Our products comply with international standards including UL, ETL, CE, and RoHS certifications to support different market requirements.
LED Neon Sign Board Quality Control Process
We apply strict quality inspection standards throughout production to ensure stable performance and reliable quality before shipment.
