Compare Our YS-M97311 Small LED Module Series: 0.1W / 0.24W Power & Grade Options
| Model No | Power | Grade | Lumen (White) | Core Selling Points | Best Application |
| YS-M97311-G | 0.2W | High Efficiency B | 28–30lm | High lumen, low light attenuation, high brightness | Outdoor deep channel letters, resin signs, storefront signage |
| YS-M97311-G1（HOT） | 0.1W | High Efficiency B | 14–16lm | Energy saving, stable output, low power consumption | Mini letters, thin signage, indoor small advertising signs |
| YS-M97311 | 0.2W | Standard A | 20–22lm | Cost-effective, steady performance, universal use | General commercial signage, indoor & outdoor letter lights |
| YS-M97311-01 | 0.1W | Standard A | 10–11lm | Budget friendly, multi-color available | Colorful signs, decorative light boxes, tiny letter projects |
Features of YS-M97311 Small LED Module
1.High Efficiency & Standard SMD 2835 LED Options
Our YS-M97311 series includes Standard Type A and High Efficiency Type B SMD 2835 LED modules. The high-efficiency model hits 140lm/W efficacy, delivering 14-16lm (0.1W) or 28-30lm (0.2W) for bright, uniform light. These modules balance efficiency and brightness, cutting long-term energy costs for your sign projects.
2.12V DC Low-Voltage with Dual Power Options
Designed for 12V DC constant voltage, these mini LED modules are safe, easy to install and compatible with most sign power systems. Choose 0.1W for low-power subtle lighting or 0.2W for high-visibility brightness, both with low power consumption to reduce electricity costs.
3.Compact Mini Size (9×6.8×4.8mm) for Tight Spaces
With a 9×6.8×4.8mm footprint, these mini LED modules fit seamlessly into small/mini channel letters and resin letter profiles. Perfect for 3-10cm deep signs, they solve the challenge of illuminating narrow, hard-to-fit cavities.
4.Flexible Installation – Cuttable & Cascadable Up to 100pcs
Each LED module is individually cuttable to fit custom sign sizes and shapes. They support cascading up to 100pcs per single-side power supply (200pcs dual-side), saving wiring time and simplifying scalable installations.
5.120° Wide Beam Angle for Shadow-Free Lighting
With a 120° wide beam angle, these SMD 2835 LED modules eliminate dark spots and deliver even illumination across channel letters. The wide spread ensures consistent brightness for 3-10cm deep signs, creating a professional, eye-catching display from all angles.

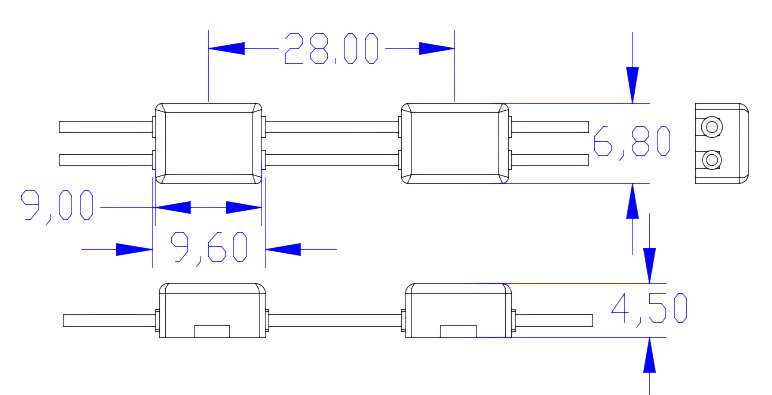

YS-M97311 Small LED Module Dimensions(mm)
Installation of YS-M97311 Small LED Module

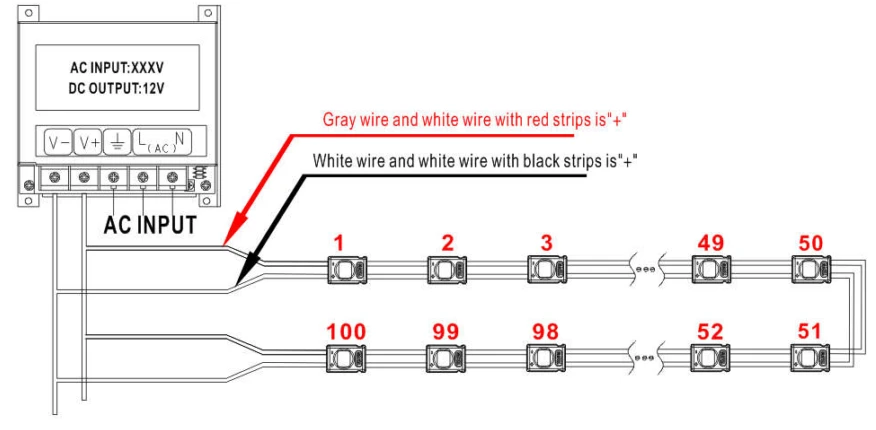

1.Wiring instructions (connection 1, double-sided power connection, the longest cascade is 10opcs) as shown in the figure below:

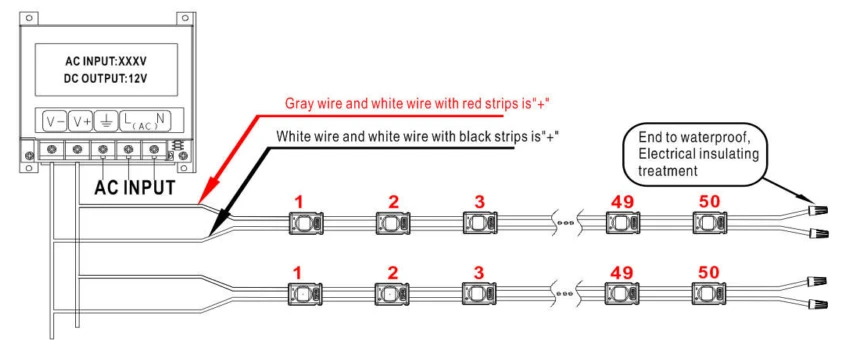

2.Wiring instructions (connection 2, single-sided power connection, maximum cascading is 50pcs) as shown in the figure below:
Note: When the module power is 0.1W, single-sided power supply (connection 2) is 100pcs,double-sided power supply (connection 1) is 200pcs
Applications of YS-M97311 Small LED Module

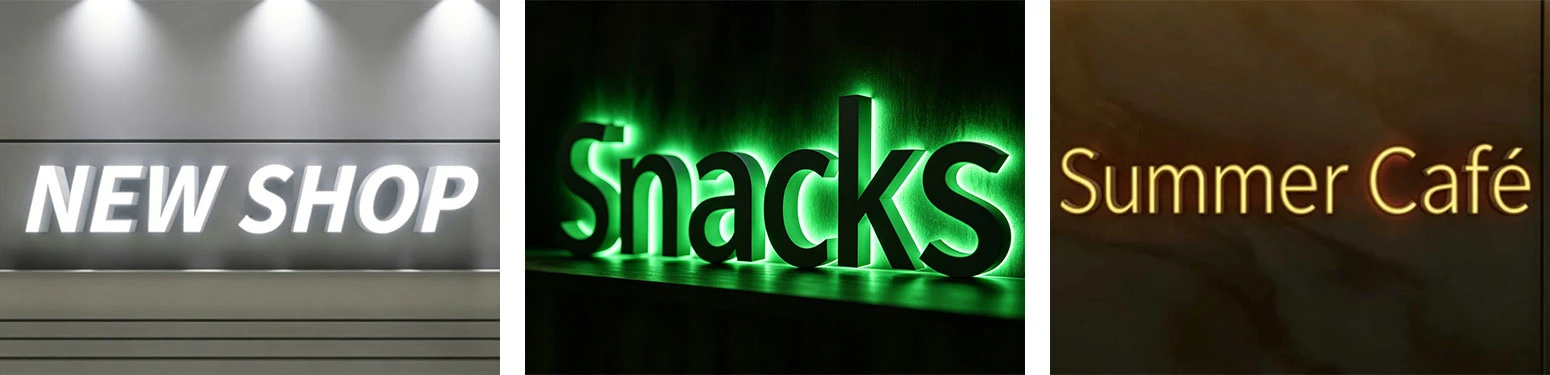

1.Mini & Small Channel Letter Signs
These compact 12V LED modules are ideal for 3-10cm deep small/mini channel letters. The 9×6.8×4.8mm size fits narrow profiles, delivering bright, even light to keep storefront and retail signs clear and vibrant day and night.
2.Resin Letter Sign Applications
Our IP67 waterproof LED modules are optimized for resin letter signs, providing consistent light that enhances visibility and appeal. The waterproof design protects LEDs from resin-trapped moisture, ensuring long-lasting performance for durable, weather-resistant resin sign installations.
3.Indoor & Outdoor Commercial Signage
With an IP67 rating and 5-year warranty, these SMD 2835 LED modules suit indoor/outdoor commercial signage like storefronts, restaurant letters and office logos. Their high efficiency and low power use make them a cost-effective upgrade for any business display.
4.DIY & Custom Sign Projects
Thanks to their cuttable design and 12V DC operation, these LED modules integrate easily into DIY and custom sign projects, from craft letters to personalized business signs. Their flexible size and installation options support unique, tailored display designs.

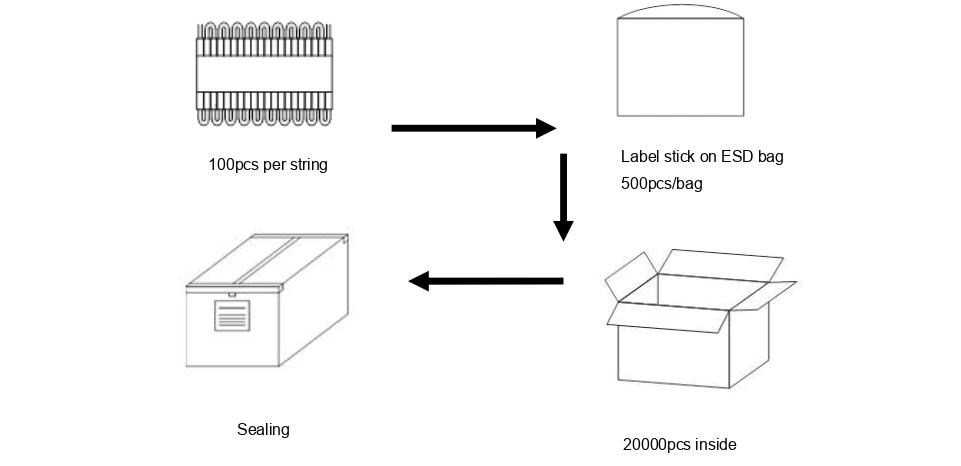

Packing of YS-M97311 Small LED Module
1. Crton Dimension: 52*30*28cm
2. 500pcs per bag, 40 bags per carton, 20000 modules in total
3. Net Weight (N.W):10.5KG (1+10%)
4. The above packing quantiy and weight only refer to the packing method as shown in the diagram.When other packing methods are adopted, there will be differences in packing quantity and weight. Please subject to the actual product.
