Compare Our YS-M98311 SMD2835 LED Module Series: 0.1W / 0.24W Power & Grade Options
| Model No | Power | Grade | Lumen (White) | Core Selling Points | Best Application |
| YS-M98311-G | 0.24W | High Efficiency B | 33–35lm | High lumen, low light attenuation, high brightness | Outdoor deep channel letters, resin signs, storefront signage |
| YS-M98311-G1（HOT） | 0.1W | High Efficiency B | 14–16lm | Energy saving, stable output, low power consumption | Mini letters, thin signage, indoor small advertising signs |
| YS-M98311 | 0.24W | Standard A | 22–24lm | Cost-effective, steady performance, universal use | General commercial signage, indoor & outdoor letter lights |
| YS-M98311-01 | 0.1W | Standard A | 5–11lm | Budget friendly, multi-color available | Colorful signs, decorative light boxes, tiny letter projects |
Features of YS-M98311 SMD2835 Small LED Module
1.High-Efficiency SMD2835 Chips for Bright, Low-Attenuation Performance
Our series offers High Efficiency (Type B) and Standard (Type A) SMD2835 modules. High-efficiency 0.24W models reach 33-35lm (white), while standard 0.24W models deliver 22-24lm. All variants have ultra-low light attenuation, maintaining stable, fade-free illumination for 5+ years—ideal for long-lasting storefront signs and mini letters.
2.Flexible Cuttable & Cascading Design for Custom Installations
Each module is individually cuttable, letting you customize layouts for any sign size, from small mini letters to large commercial signage. They support cascading up to 100pcs per power supply (200pcs max with dual-side power), simplifying installation and reducing material waste.
3.Diverse Power & Efficiency Options for Every Signage Need
Choose from two power outputs (0.24W for high brightness, 0.1W for energy efficiency) and two chip grades (High Efficiency Type B for max lumen, Standard Type A for cost savings). We have a variant for every project, from bright outdoor storefronts to budget-friendly decorative signs.
4.120° Wide Beam Angle for Even Illumination in Deep & Small Letters
A 120° wide beam angle distributes light evenly, eliminating dark spots and hot spots in 3-10cm deep channel letters, mini letters, and slim signage. This uniform illumination delivers clean, professional-looking signs, even in narrow or deep letter designs.
5.UL/CE/RoHS Certified + 5-Year Warranty for Bulk Orders
All modules are UL/CE/RoHS certified, meeting global safety standards for commercial projects. Backed by a 5-year warranty, they undergo strict QC for long-term reliability, reducing maintenance costs and risks for wholesale buyers and sign makers.

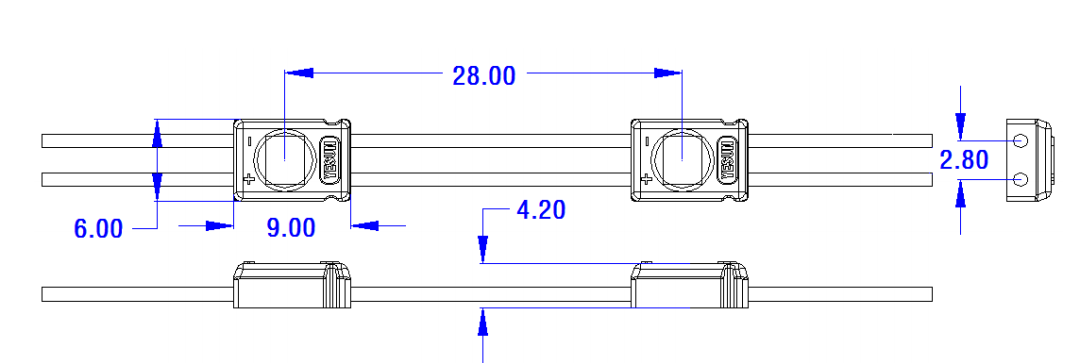

YS-M98311 SMD2835 Small LED Module Dimensions
Installation of YS-M98311 SMD2835 Small LED Module
1.Wiring instructions (connection 1, double-sided power connection, the longest cascade is 10opcs) as shown in the figure below:
2.Wiring instructions (connection 2, single-sided power connection, maximum cascading is 50pcs) as shown in the figure below:
Applications of YS-M98311 SMD2835 Small LED Module
1.Retail & Commercial Display Lighting
Perfect for shelf lighting, cabinet displays, and product showcases in supermarkets, malls, and boutiques. These energy-efficient SMD2835 LED modules enhance product visibility while reducing electricity expenses.
2.Signage & Channel Letter Lighting
High efficiency SMD2835 LED modules deliver uniform, flicker-free illumination for indoor/outdoor channel letters, storefront signs, and logo displays. They meet commercial signage brightness standards while cutting long-term energy costs..
3.Architectural & Decorative Lighting
Suitable for cove lighting, wall washing, and accent lighting in hotels, offices, and residential spaces. The compact SMD2835 LED modules offer flexible installation and consistent brightness for ambient or decorative purposes.
Packing of YS-M98311 SMD2835 Small LED Module
1.Carton Dimension: 52*30*28cm
2.500pcs per bag, 40 bags per carton, 20000 modules in total
3.Net Weight (N.W):10.5KG (1+10%)
4.The above packing quantiy and weight only refer to the packing method as shown in the diagram When other packing methods are
adopted, there will be differences in packing quantity and weight. Please subject to the actual product.
