Features of YS-M08X31 3-Lighting Sides LED Module:
1.3-Sided Uniform Lighting with Dual SMD Chips
Adopts 1pc high-brightness SMD2835 in the middle and 2pcs SMD3014 on both sides, delivering 3×120° ultra-wide beam angle and 30lm per module. This unique 3-sided lighting design eliminates dark spots and ensures even illumination from all angles, making it ideal for full-light channel letters that require 360° visibility.
2.Up to 60 Modules in Series Connection
Supports a maximum of 60 modules connected in series with a single driver at one end. This reduces the number of power supplies needed, simplifies wiring, and lowers installation costs for large-scale commercial signage projects. Unlike standard modules that only support 20-30 pieces in series, our YS-M08X31 offers greater flexibility for long sign runs.
3.Tool-Free Installation with 3M VHB Adhesive
Equipped with 3M VHB tape on the back, the YS-M08X31 can be installed quickly and easily without any tools. The high-strength adhesive ensures a secure bond to various surfaces, including acrylic, metal, and plastic. Single modules can also be cut to size, making it perfect for custom signage layouts.
4.Ultra-Compact Design for Thin & Special Signage
With the smallest dimension of 18×11×5.0mm, this mini LED module is perfectly suited for thin and small signage applications. Its compact size allows it to fit into tight spaces and irregular shapes that larger modules cannot reach, opening up new possibilities for creative sign designs.

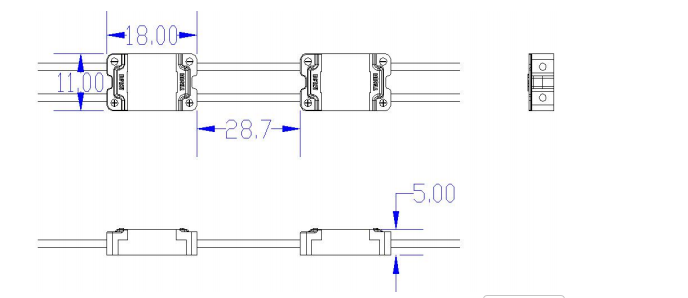

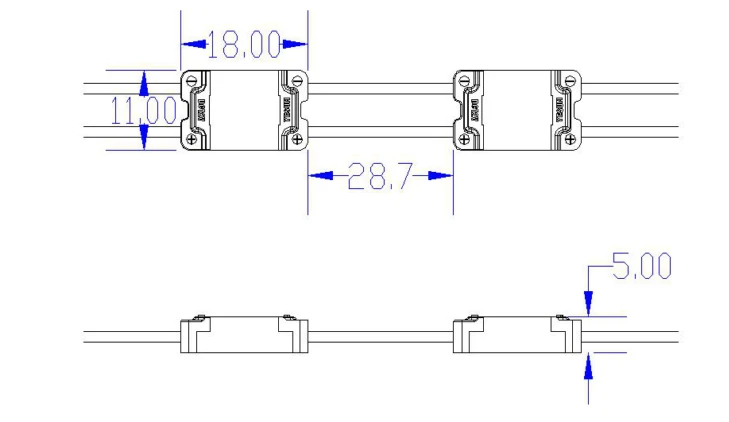

YS-M08X31 3-Lighting Sides LED Module Dimensions(mm):
Click here to request a free quote of YS-M08X31 LED module

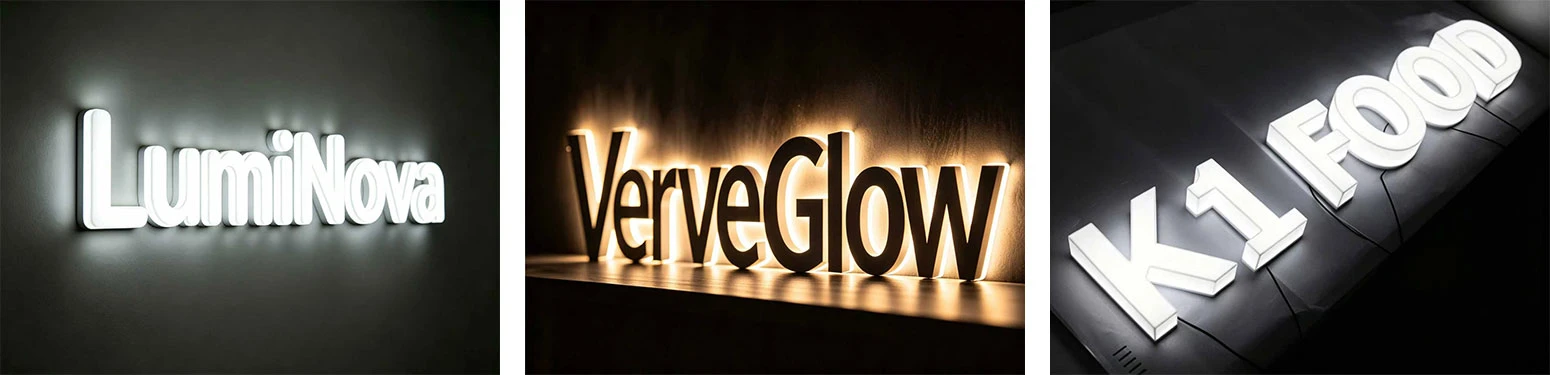

Applications of YS-M08X31 3-Lighting Sides LED Module:
1.3-8cm Narrow-Depth Channel Letters & Metal Letters
The YS-M87631 is purpose-built for 3-8cm depth channel letters and metal letters—a common pain point for larger modules. Its compact size and 160° beam angle fit perfectly inside narrow letter signs, delivering even light distribution that makes brand logos and storefront signs stand out without dark spots.
2.Small & Medium-Sized Commercial Signage Projects
Thanks to its flexible string configuration and cuttable design, the YS-M87631 is suitable for small to medium-sized signage projects. Whether you’re working on a small business logo sign or a medium-sized advertising display, these modules offer the versatility and performance you need.
3.Decorative Signage & Accent Lighting
With multiple color temperature options, the YS-M87631 is perfect for decorative signage and accent lighting projects. Use warm white for soft interior decor or cool white for bright outdoor decorative signs, creating custom lighting effects for any space.
Packing of YS-M08X31 3-Lighting Sides LED Module:
1. Carton Dimension: 52*30*22cm
2. 20 pcs per string, 100 pcs per bag, 5000 pcs per outer carton total
3. Net Weight（N.W）：7.8KG（1±10%)
4. Gross Weight（G.W): 8.3KG（1±10%)
5. The actual packed quantity and weight subject to change without prior notice.
Professional YS-M08X31 3-Lighting Sides LED Module Manufacturer & Supplier:
Founded in 2013, YESUN LED is a Shenzhen-based manufacturer specializing in advertising signage LED lighting solutions including YS-M08X31 3-Lighting Sides LED Modules, LED menu box,Silicone Neon Light Strip and custom full-light channel letters and backlit signs for commercial projects, with CE/UL/RoHS certified products exported to over 100 countries and tailored for Narrow Channel letter, slim light boxes, and commercial advertising, supported by a 5,000m² automated factory with 6 dedicated SMT lines, strict full-cycle QC, and a team of 100+ professionals including 10+ R&D engineers to ensure a monthly output of over 1.5 million LED products and a minimum 3-year warranty for all bulk orders.
