Features of YS-M88631 SMD3014 LED Module:
1.Super High-Lumen 3-LED SMD3014 Design
Built with high-performance SMD3014 LEDs, each YS-M88631 module delivers 25-32lm of bright, even illumination. The 3-LED configuration eliminates dark spots in thick signage, making it ideal for 3-8cm deep channel letters—far more effective than single-LED modules at lighting up deep letter structures uniformly.
2.Stable 20-PCs Per String Connection
Designed for large-scale projects, the standard string supports up to 20 modules per series (max 30pcs total). This reduces wiring complexity and ensures consistent 12VDC power distribution across long runs, minimizing connection issues and simplifying installation for multi-meter signage layouts.
3.Durable Aluminum PCB for Extended Lifespan
Equipped with a high-quality aluminum PCB board, this module offers superior heat dissipation compared to standard PCBs. Effective heat sinking prevents LED degradation, extending lifespan to over 50,000 hours and maintaining consistent brightness even with 24/7 continuous use.
4.CE, RoHS, ETL Certified + 5-Year Warranty
UFully certified by CE, RoHS, and ETL, this module meets international safety standards for global projects. Backed by a 5-year warranty (or 50,000 hours, whichever comes first), you can trust in long-term reliability, with full protection against manufacturing defects and performance issues.

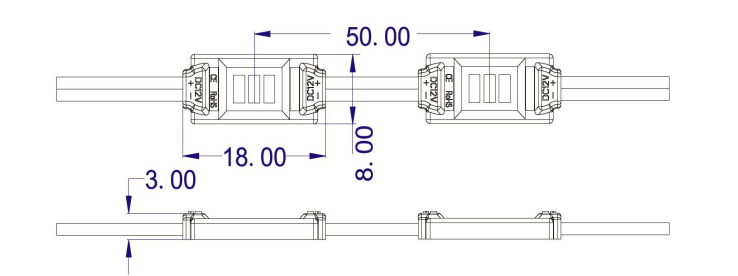

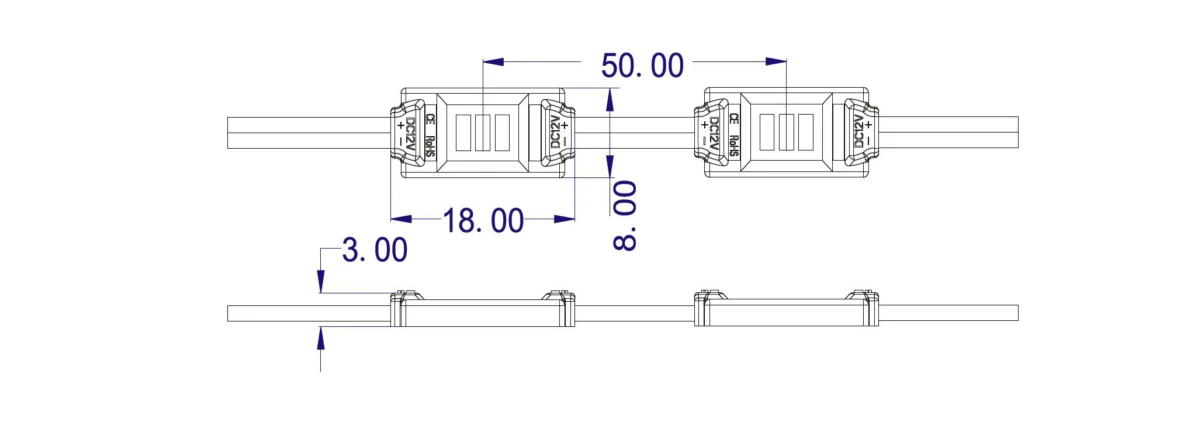

YS-M88631 SMD3014 LED Module Dimensions(mm):
Click here to request a free quote of YS-M88631 LED module
Applications of YS-M88631 SMD3014 LED Module:
1.3-8cm Deep Channel Letters & Light Box
The YS-M88631 is specifically engineered for 3-8cm deep channel letters and light box, a common requirement for commercial signage. Its 3-LED high-lumen design delivers enough brightness to illuminate thick letter structures evenly, ensuring clear visibility both day and night, even for large-scale storefront signs.
2.Outdoor Signage & Decorative Lighting
The YS-M88631 is ideal for outdoor signage, building facade lighting, and decorative installations. It can withstand rain, dust, and temperature fluctuations, making it a reliable choice for exposed storefront signs, mall exterior decorations, and other outdoor projects.
3.Retail & Commercial Decoration Projects
Suitable for a wide range of retail and commercial decoration projects, including mall signs, restaurant logos, and office signage. The module’s 3M adhesive backing allows for quick, tool-free installation, and single modules can be cut to size, making it perfect for custom signage layouts and creative decorative designs.
Packing of YS-M88631 SMD3014 LED Module:
1. Carton Dimension: 51*30*22cm
2. 20 modules per string, 40 strings per bag, 9 bags per outer carton, 7200 modules in total
3. Net Weight（N.W）：12KG（1±10%)
4. Gross Weight（G.W): 12.5KG（1±10%)
5. The actual packed quantity and weight subject to change without prior notice.
Professional YS-M88631 SMD3014 LED Module Manufacturer & Supplier:
Founded in 2013, YESUN LED is a Shenzhen-based manufacturer specializing in advertising signage LED lighting solutions including YS-M88631 SMD3014 3-LED Module, FPC LED Light Sheet,LED neon strip and custom channel letters and advertising sign for commercial projects, with CE/UL/RoHS certified products exported to over 100 countries and tailored for Narrow Channel letter, slim light boxes, and commercial advertising, supported by a 5,000m² automated factory with 6 dedicated SMT lines, strict full-cycle QC, and a team of 100+ professionals including 10+ R&D engineers to ensure a monthly output of over 1.5 million LED products and a minimum 3-year warranty for all bulk orders.
