The YS-MB8361-RGB is a high-performance DC12V constant-voltage waterproof matrix LED module, engineered for premium advertising signage and light box applications. Equipped with 6 high-efficiency SMD3030 RGB LED beads and a 175° wide-angle lens for uniform illumination, this RGB LED module combines an aluminum substrate for excellent heat dissipation with PVC injection molding for a lightweight, durable build. With an IP65 waterproof rating and CE/RoHS certification, it is the ideal lighting solution for 8-15cm thick single-sided light boxes, suitable for airports, subways, banks, buildings, shopping malls, and more.
The aluminum substrate ensures superior heat dissipation, extending the lifespan of the LED beads. The PVC injection-molded housing offers a sleek, lightweight finish while providing IP65 waterproof protection, making it suitable for outdoor and humid environments. CE and RoHS certifications guarantee reliable, compliant quality.

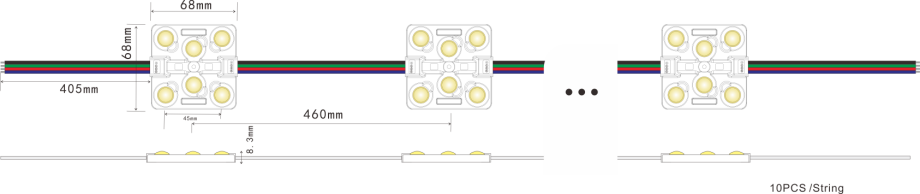

Designed for seamless installation: 10 modules per standard string, with a maximum of 10 modules cascaded via single-ended power supply and 20 modules via double-ended power supply. This flexible design simplifies wiring for light boxes and illuminated signs of all sizes, reducing installation time and labor costs.
Available Colors (CCTs):
Features and Benefits:
- Adopt super high lumen SMD3030 LED;
- Standard module quantity per string up to 10pcs;
- Adopt aluminum PCB board, good heat sink;
- 50,000 hour lifespan (8 hours/day for 17 years);
- Waterproof with PVC injection housing;
- Single module as a unit can be cut accordingly;
- Certification: CE and RoHs and UL approved.

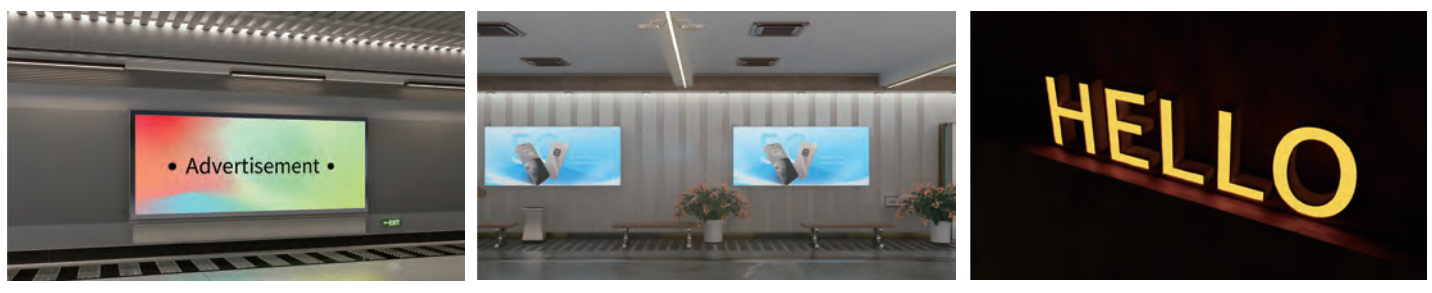

Applications and Use:
-
8-15cm thick single-sided advertising light boxes and illuminated channel letters
-
Commercial signage for airports, subways, banks, buildings, shopping malls, and retail stores
- Outdoor storefront signs, landscape lighting, wayfinding signs, and more
