Features of YS-FBS16-3535-RGB60 SK6813 Addressable RGB LED Strip Lights:

1. Ultra-Flexible S-Type PCB for Complex Signage

The unique zigzag S-shape design allows for extreme lateral flexibility, enabling the strip to bend around sharp corners and intricate curves without folding or damaging the PCB. This makes it the ultimate choice for miniature neon RGB letters and complex advertising signage where standard linear strips fail to fit.

2. Advanced SK6813 IC with Dual-Signal Breakpoint Resume

Equipped with the SK6813 integrated circuit, this strip offers exceptional reliability through its dual-signal transmission capability. If a single LED pixel fails, the signal automatically bypasses the faulty unit to keep the rest of the strip illuminated, significantly reducing maintenance costs and downtime for commercial installations.

3. High-Precision 3535 RGB Pixels for Smooth Mixing

Featuring 60 programmable pixel units per meter using compact SMD 3535 LEDs, this strip provides high-density light output with superior color consistency. The smaller footprint of the 3535 package allows for a narrower 6mm PCB, ideal for tight spaces and shallow light boxes requiring vibrant, chasing effects.

4. Safe and Convenient Installation with SM Terminals

Our LED strip comes pre-wired with anti-reverse SM terminals on both ends, supporting quick plug-and-play connections and easy series expansion. The product is CE and RoHS approved, ensuring compliance with international safety standards and providing peace of mind for professional lighting projects.

Compare Our Addressable RGB LED Strip Lights: Which Density Fits Your Project?

Specification	YS-FBS16-3535-RGB60	YS-FBS16-3535-RGB84	YS-FBS16-3535-RGB108
LED Density (LEDs/M)	60 LEDs/M	84 LEDs/M	108 LEDs/M
Max Power Per Meter	7.2W/M	10W/M	13W/M
Core Positioning	Standard brightness, cost-effective option	Balanced brightness & power for commercial use	Ultra-high brightness premium performance
Recommended Application Scenarios	General neon signage, home decoration, retail shelf lighting	Commercial advertising signs, event backdrops, medium-scale projects	High-end custom neon signs, large commercial lighting, stage production

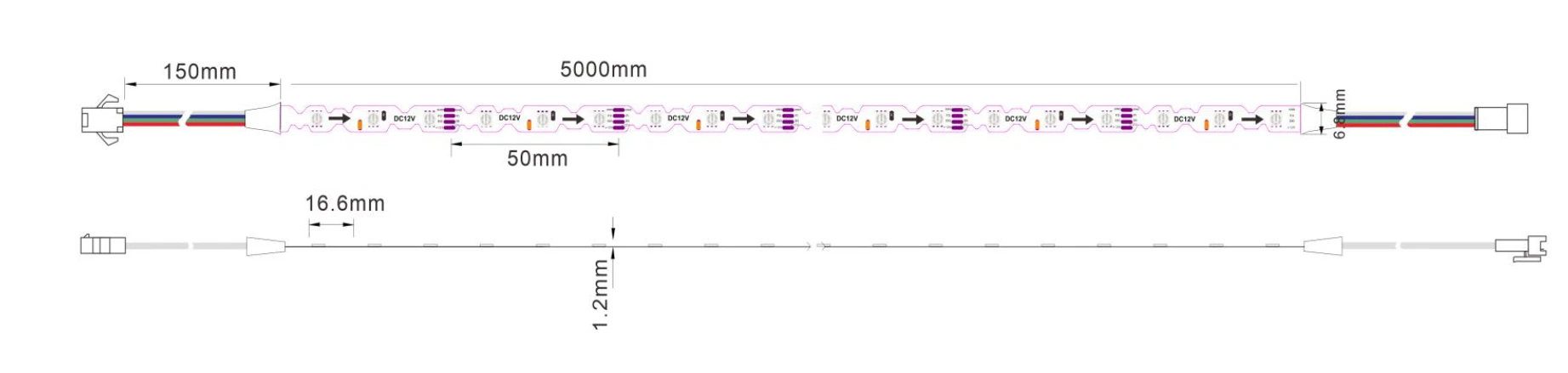

YS-FBS16-3535-RGB60 SK6813 Addressable RGB LED Strip Lights Dimensions(mm):

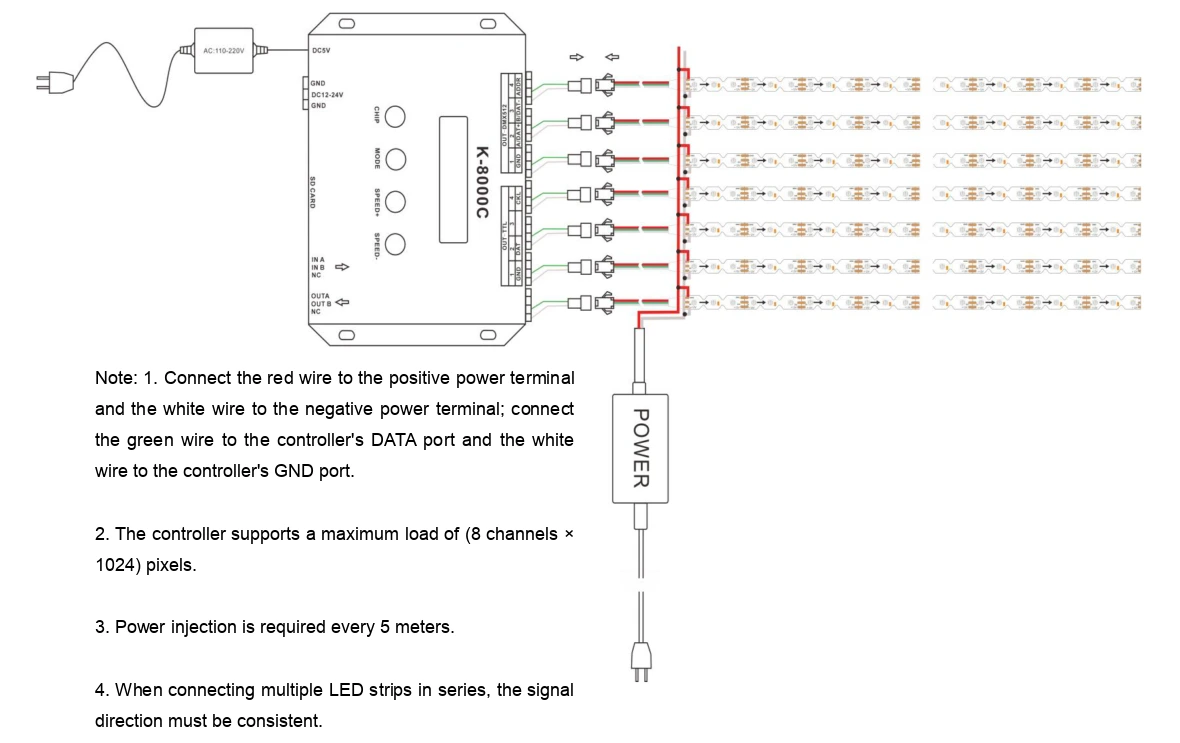

YS-FBS16-3535-RGB60 SK6813 Addressable RGB LED Strip Lights Installation:

Click here to request a free quote of YS-FBS16-3535-RGB60 LED strip lights

YS-FBS16-3535-RGB60 SK6813 Addressable RGB LED Strip Lights LED Controller Selection and Specification:

Picture	Model No.	Working voltage	Working current	Working Temp	Dimension	Feature
	LED Remote Control SP648E (For RGB LED)	DC5V~24V	12mA~25mA	-20~60 °C	55*26*12mm	Support App control and2.4G remote control	Support up to 600 single-wire RZ RGB LED driver ICs	Built-in a variety of music and dynamic effects, support effects pause, multi-parameter adiustable
	LED Remote Control SP649E (For RGBW LED)						Support up to 450 single-wire RZ RGB LED driver ICs
Picture	Model No.	Operating temperature	Operating power	Power consumption	Data transmission port	Weight	Dimensions
	LED Controller K1000-C Max 1*512 pixels (DMX)/ 1024 pixels (SPI)	-30～85℃	DC5V ‐24V	2W	3pin wiring terminal	0.35 KG	159*89*24mm
	LED Controller K-4000C Max 4*512 pixels (DMX)/ 1024 pixels (SPI)	-20～75℃	DC12V ‐24V	5W	3pin wiring terminal	0.8 KG	215*146*30mm
	LED Controller K-8000C Max 8*512 pixels (DMX)/ 1024 pixels (SPI)	-20～85℃	DC 5V or DC 12-24V	5W	3pin wiring terminal	0.8 KG	180*120*30mm

Applications of YS-FBS16-3535-RGB60 SK6813 Addressable RGB LED Strip Lights:

1. Custom RGB Neon & Mini Channel Letters

he bendable S-type structure is specifically engineered for the fabrication of 3D neon letters and small-scale signage. Its ability to hold shape while following tight contours ensures a seamless and vibrant lighting effect for high-end branding and commercial displays.

2. Precision Backlighting for Mini Light Boxes

Ideal for custom-shaped mini light boxes and slim display cases. The compact 3535 LED size and individually addressable control allow for uniform illumination and dynamic "flowing water" effects, even in shallow or constrained environments where space is limited.

3. Dynamic Outlining for Gaming & Entertainment

YS-FBS16-3535-RGB60 SK6813 Addressable RGB LED Strip Lights IP Rating Customization Options:

Description	Unprotected bare board	Flat Glue Series	Spray Glue Series	PU Glue Series	Silicone Tube Series	silicone extrusion Series
IP Rate	IP20	IP65	IP65	IP65	IP65	IP68
Lumen Output Rate	100%	98%	98%	98%	95%	90%

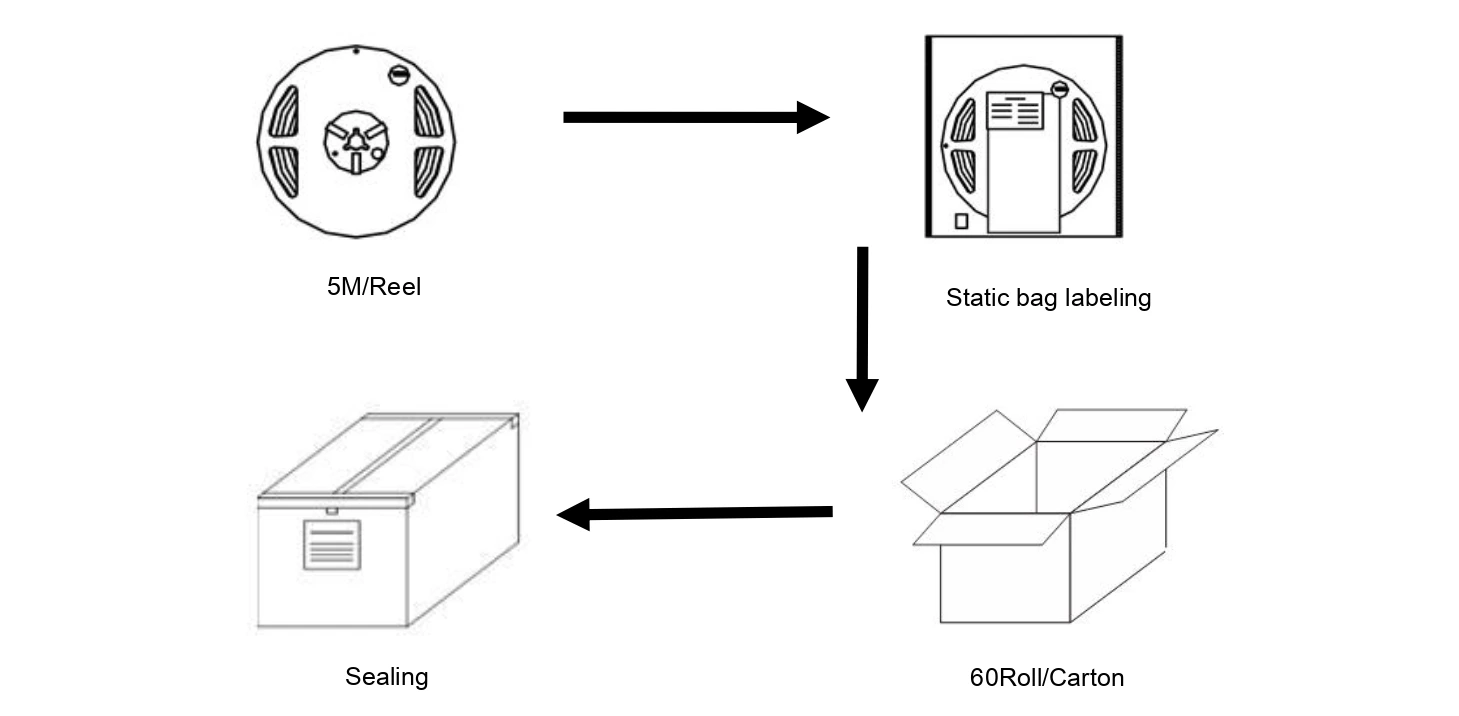

Packing of YS-FBS16-3535-RGB60 SK6813 Addressable RGB LED Strip Lights:

Item No.	Qty per Rolls(m)	Qty per Carton(m)	Total Weight(kg)	Dimension of outer carton（mm)
				Length	Width	Height
YS-RN2835X60	5	300	7.6	520	300	220

Professional YS-FBS16-3535-RGB60 SK6813 Addressable RGB LED Strip Lights Manufacturer & Supplier

Founded in 2013, YESUN LED is a Shenzhen-based manufacturer specializing in advertising signage LED lighting solutions including YS-FBS16-3535-RGB60 SK6813 addressable RGB LED strip lights, store front window LED light, neon strip for neon RGB letters, mini RGB letters and custom-shaped mini RGB light boxes with CE/UL/RoHS certified products exported to over 100 countries and tailored for Narrow Channel letter, slim light boxes, and commercial advertising, supported by a 5,000m² automated factory with 6 dedicated SMT lines, strict full-cycle QC, and a team of 100+ professionals including 10+ R&D engineers to ensure a monthly output of over 1.5 million LED products and a minimum 3-year warranty for all bulk orders.

Production Certificates

We got UL, ETL, CE, ROHS certifiacted to meet different region standards.

Production Quality Control Process

We follow a strict, step-by-step quality control system for YS-FBS16-3535-RGB60 SK6813 addressable RGB LED strip lights. Every production stage is inspected to ensure consistent performance and reliability before delivery.
