YS-MA5311 side view LED Module – When every millimeter matters.This side-emitting LED module is engineered for precision edge-lit applications—delivering a focused 15*55° beam angle where directional light output and space efficiency are non-negotiable.
Built with durability in mind, the YS-M2020 features an aluminum PCB for superior heat dissipation and a waterproof ABS housing for reliable outdoor performance. The 3M adhesive backing allows for quick, secure installation, while the cuttable design—with modules spaced at 193mm center distance—offers exceptional flexibility for custom sign lengths. With a remarkable 50,000-hour lifespan and CE, RoHS, and UL certifications, this module provides a maintenance-free lighting solution you can trust.
Perfect for * Suitable for 14～40cm depth double side light box, outdoor waterproof light box.
Ready to make a big impression in a side-emitting space? Experience the YS-MA5311 difference today.
Available Colors (CCTs):
Features and Benefits:
- Adopt Super high lumen SMD2020 LED,each LED can reach 280-300lm;
- Standard module quantity per string up to 20pcs;
- Adopt aluminum PCB board, good heat sink;
- 50,000 hour lifespan (8 hours/day for 17 years);
- Waterproof with ABS injection housing;
- 3M adhesive tape backing on modules;
- Beam angle 15*55°

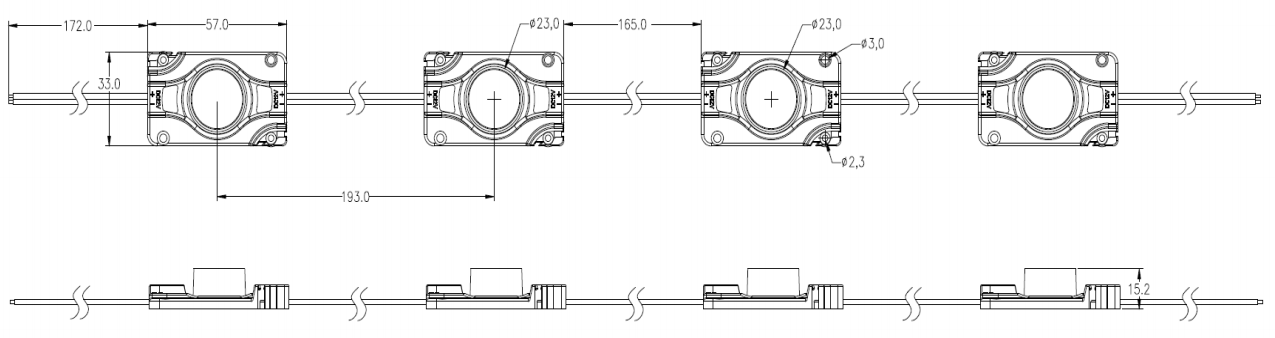

- 193mm Center distance;
- Single module as a unit can be cut accordingly;
- Certification: CE and RoHs and UL approved.
Applications and Use:
-
special shape backlit signs and full-light channel letters
-
Double side Lightboxes; LED Signage; Metal Letters
-
Decorative Lighting
-
Illuminated Branding Elements
