YS-M67711 side view LED Module – When every millimeter matters.This side-emitting LED module is engineered for precision edge-lit applications—delivering a focused 12*56° beam angle where directional light output and space efficiency are non-negotiable.
Built with durability in mind, the YS-M3030 features an aluminum PCB for superior heat dissipation and a waterproof ABS housing for reliable outdoor performance. The 3M adhesive backing allows for quick, secure installation, while the cuttable design—with modules spaced at just 125mm center distance—offers exceptional flexibility for custom sign lengths. With a remarkable 50,000-hour lifespan and CE, RoHS, and UL certifications, this module provides a maintenance-free lighting solution you can trust.
Perfect for * Suitable for 7～15cm depth signs such as channel letters, metal letters, 3D letters double-view light boxes,decoration,etc
Ready to make a big impression in a side-emitting space? Experience the YS-M67711 difference today.
Available Colors (CCTs):
Features and Benefits:
- Adopt Super high lumen SMD3030 LED,each LED can reach 120-140lm;
- Standard module quantity per string up to 20pcs;
- Adopt aluminum PCB board, good heat sink;
- 50,000 hour lifespan (8 hours/day for 17 years);
- Waterproof with ABS injection housing;
- 3M adhesive tape backing on modules;
- Beam angle 12*56°

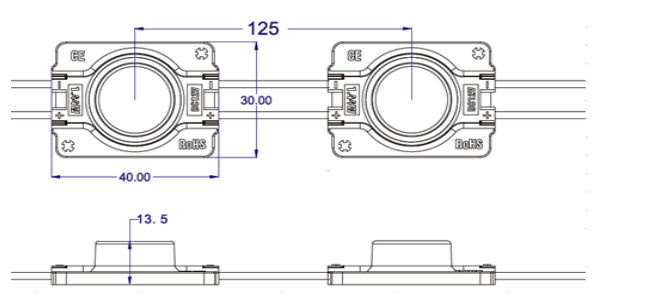

- 125mm Center distance;
- Single module as a unit can be cut accordingly;
- Certification: CE and RoHs and UL approved.
Applications and Use:
-
special shape backlit signs and full-light channel letters
-
Lightboxes; LED Signage; Metal Letters
-
Decorative Lighting
-
Illuminated Branding Elements
