YS-M90E31 side view LED Module – When every millimeter matters.This side-emitting LED module is engineered for precision edge-lit applications—delivering a focused 15*55° beam angle where directional light output and space efficiency are non-negotiable.
Built with durability in mind, the CREE power led module features an aluminum PCB for superior heat dissipation and a waterproof ABS housing for reliable outdoor performance. The 3M adhesive backing allows for quick, secure installation, while the cuttable design—with leds spaced at just 50mm center distance—offers exceptional flexibility for custom sign lengths. With a remarkable 50,000-hour lifespan and CE, RoHS, and UL certifications, this module provides a maintenance-free lighting solution you can trust.
Perfect for * Suitable for 10～25cm tdepth signs such as channel letters, metal letters, 3D letters double-view light boxes, decoration,etc
Ready to make a big impression in a side-emitting space? Experience the YS-M90E31 difference today.
Available Colors (CCTs):
Features and Benefits:
- Adopt Super high lumen CREE XB-D LED, each LED can reach 230-250lm;
- Standard module quantity per string up to 20pcs;
- Adopt aluminum PCB board, good heat sink;
- 50,000 hour lifespan (8 hours/day for 17 years);
- Waterproof with ABS injection housing;
- 3M adhesive tape backing on modules;
- Beam angle 15*55°

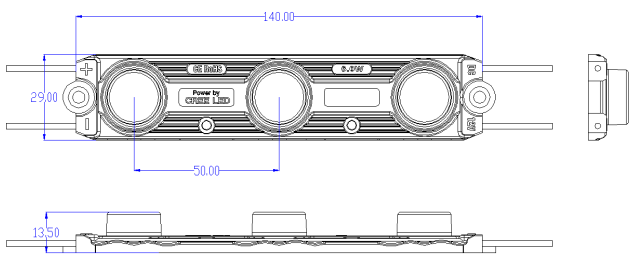

- 50mm Center distance;
- Single module as a unit can be cut accordingly;
- Certification: CE and RoHs and UL approved.
Applications and Use:
-

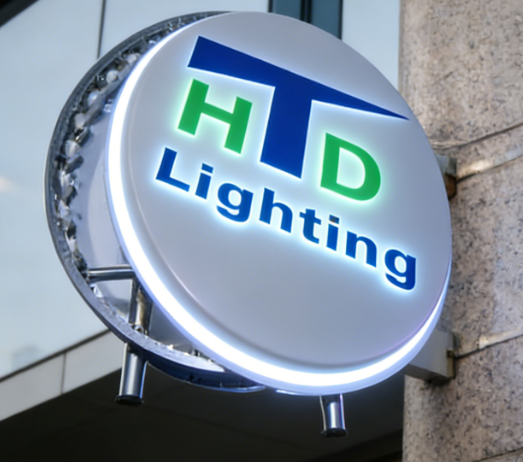

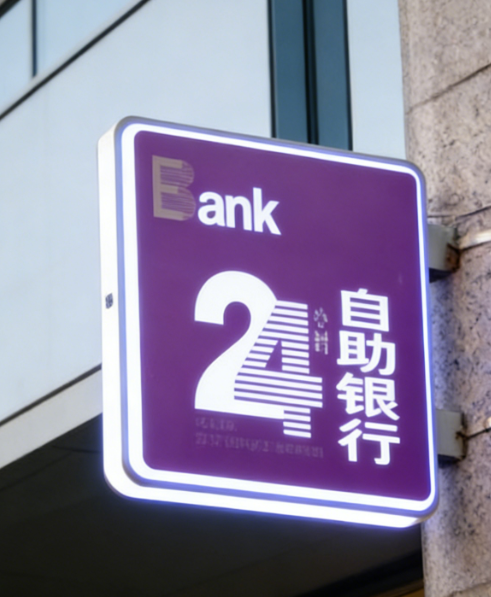

special shape backlit signs and full-light channel letters
-
Lightboxes; LED Signage; Metal Letters
-
Decorative Lighting
-
Illuminated Branding Elements
