YESUN

Longer Strings, Stronger Performance.
Featuring ultrasonic welding technology, the YS-MS7131-D ensures a robust, airtight seal that enhances durability and waterproof performance. With up to 50 modules per string, this series delivers consistent quality and simplifies large-scale installations—reducing connection points and saving installation time.

IP68 Waterproof, Built to Last.
Designed for outdoor use — rain or shine. The ABS injection housing with ultrasonic sealing ensures complete protection, making it ideal for commercial storefronts, window lighting, architectural outlines, signage, or residential DIY projects, this module is built to withstand exposure to rain, dust, and moisture.

Color Your World.
Pixel RGB led module - changing capability lets you create dynamic lighting effects that adapt to any environment. From vibrant storefronts to subtle residential accents, this series brings your vision to life.

Install with Ease.
3M adhesive backing, screw holes, and a compact design make installation quick and flexible. Cut single modules on-site for precise customization. Certified to CE, RoHS, and UL standards.



• Adopt super high lumen SMD5050 LED, stable quality.
• Standard module quantity per string up to 50pcs;
• Adopt aluminum PCB board, good heat sink;
• 50,000 hour lifespan (8 hours/day for 17 years);
• IP68 Waterproof LED module with ABS injection housing;

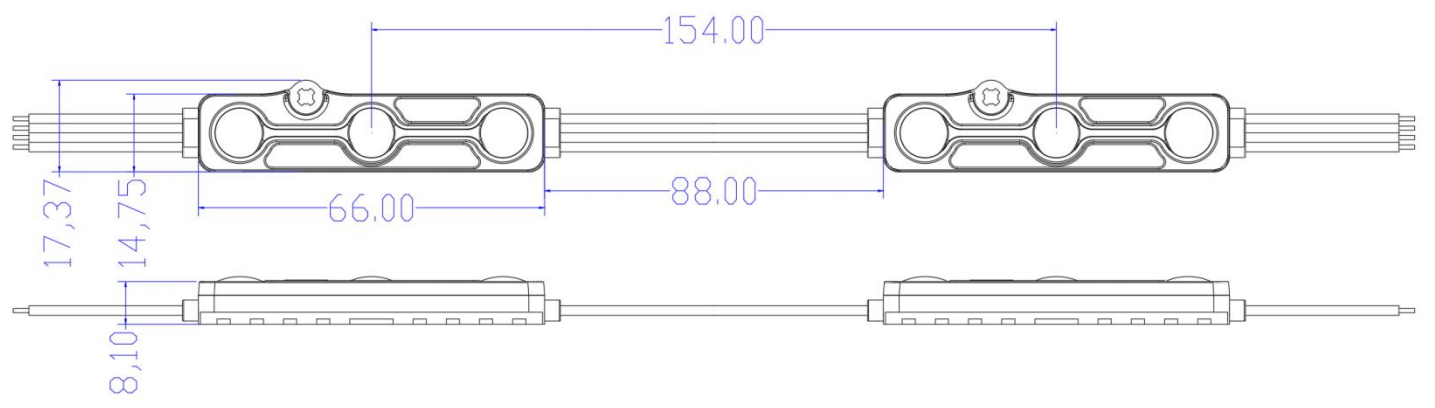

• Slim dimension 66*17.37*8.8mm;
• 3M adhesive tape backing on modules;
• 154mm Center distance;
• Single module as a unit can be cut accordingly;
• Certification: CE and RoHs and UL approved.



Applications and Use:

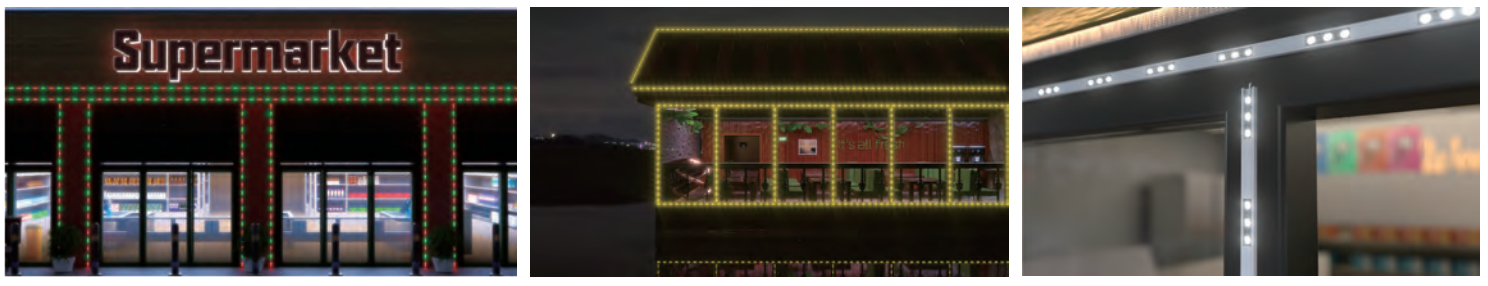

• Suitable for commercial store, hotel, signage, architectural outlines, signs, light boxes.

• Ideal for a variety of decorative lighting or DIY Projects for Commercial or Residential purposes.

• Illuminated Branding Elements

• Light Box, Channel Letters
