Features of 4-LED SMD5050 RGB LED Module

1. 160° Wide-Beam RGB Lighting

The YS-MD6Q41 4-LED SMD5050 RGB LED Module uses a 160° wide-angle lens to distribute RGB light across a broad area inside the sign cavity. Compared with narrower optical designs, the wider beam can provide greater coverage where the available installation distance is limited or a larger illuminated surface needs to be reached.

2. 4-LED SMD5050 RGB Configuration

Four high-brightness SMD5050 3-in-1 RGB LEDs are integrated into one module, providing multiple color-emitting points within a compact housing. The arrangement offers a practical balance between RGB brightness, module size and installation flexibility.

3. ABS Injection-Molded Housing

The module uses an ABS injection-molded housing, providing a compact and lightweight enclosure around the RGB LED assembly. The molded structure gives the product a clean appearance while supporting practical integration into illuminated signage.

4. Cuttable for Customized Sign Layouts

A single module can be cut as required, allowing the lighting layout to be adapted to curved letters, narrow sections, logos and irregular graphic structures.

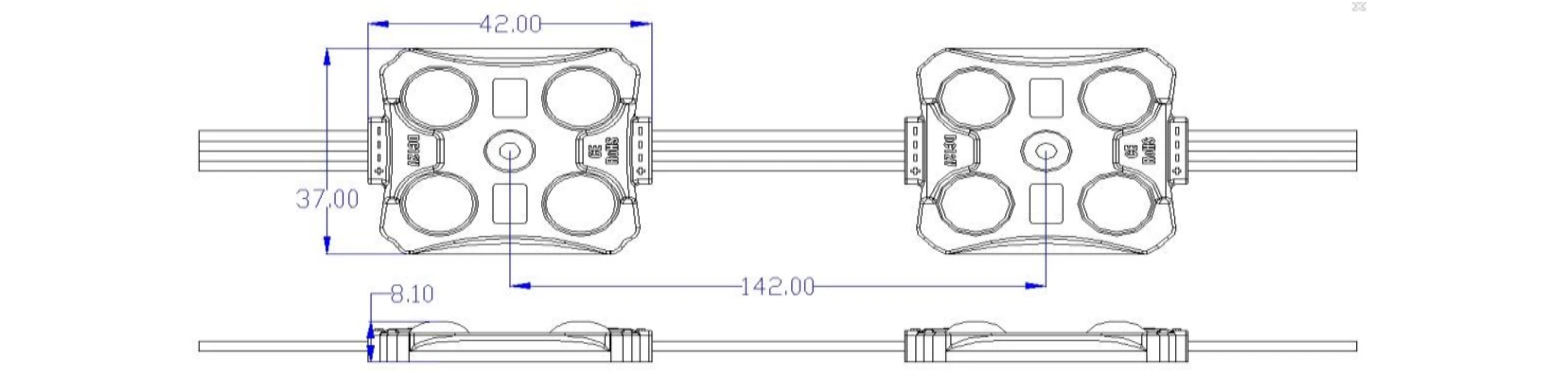

4-LED SMD5050 RGB LED Module Dimensions(mm)

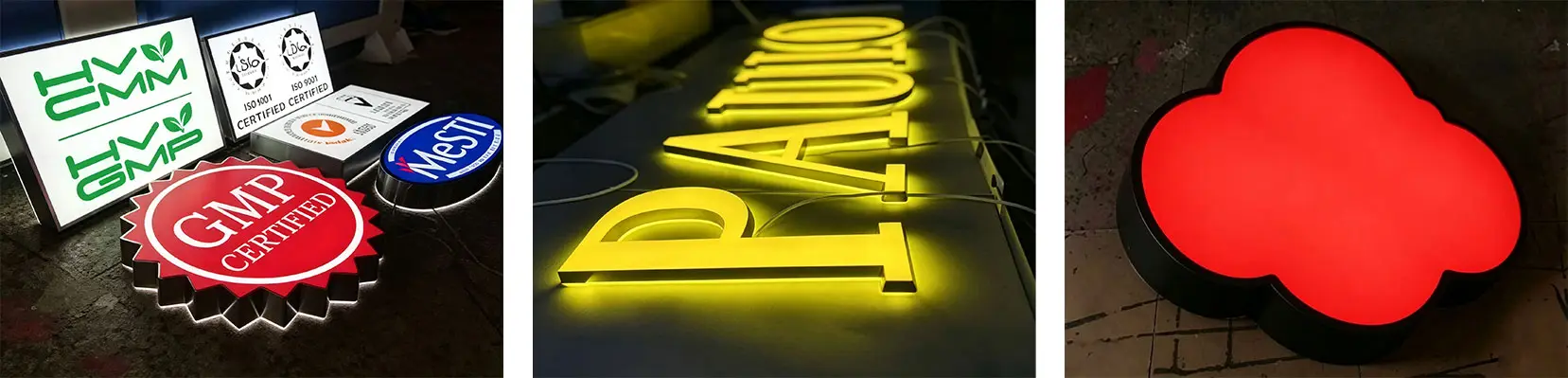

Recommended Applications for 4-LED SMD5050 RGB LED Module

1. Wide-Area RGB Channel Letter Lighting

The YS-MD6Q41 Wide-Beam RGB LED Module is suitable for channel letters that require broader RGB light coverage inside the letter cavity. The 160° optical design helps spread color across a larger area rather than concentrating the output into a narrow zone.

2. Shallow and Medium-Depth Sign Structures

With a recommended application range of 6–18cm, the module can be used across a relatively wide range of illuminated sign structures. This makes it useful when one RGB module platform needs to cover several different sign depths.

3. RGB Promotional Light Boxes

4-LED SMD5050 RGB LED Module Controller Selection and Specification

Picture	Model No.	Working voltage	Working current	Standby current	Remote control signal	Remote control area	Standby time	Power supply
	LED Remote Control R8-1	3VDC	<5mA	<10uA	2.4GHz, remote control distance 30 meters	1 zone	1 year	CR2032 button battery
	LED Remote Control RT4							2 AA batteries
Picture	Model No.	Input voltage	Input current	Output voltage	Output current	Output power	PWM frequency
	LED Controller V3	12-24VDC	12.5A	3X(12-24)VDC	3CH, 4A/CH	144-288W (12-24V)	1000Hz
	LED Controller V3-L	12-48VDC	18.5A	3X(12-48)VDC	3CH, 6A/CH	3X(72-288)W
Picture	Model No.	Single gross weight	Static power consumption	Connection mode	Maximum current	Supply voltage	Output channel	Output power
	Mini LED Controller 28-key RF-M3	0.04Kg	<1W	common anode	6A	DC5V-24V	<2A*3Channel	12V<72W; 24V<144W

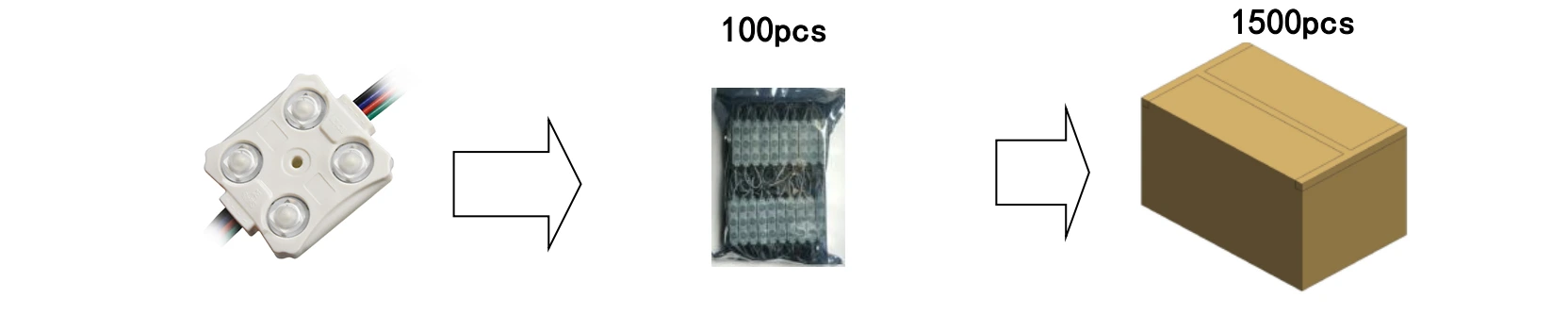

Packaging & Shipping Information for 4-LED SMD5050 RGB LED Module

Item No.	Qty Per bag（PCS）	Per/Carton(Bag)	Total Qty(Bag)	GK（Kg/Carton）	Dimension of outer carton（mm）
					L	W	H
YS-MD6Q41	100	15	1500	23	510	290	340

Professional 4-LED SMD5050 RGB LED Module Manufacturer & Supplier

Founded in 2013, YESUN LED is a Shenzhen-based manufacturer specializing in LED signage and commercial lighting solutions. With 5,000㎡ of automated factory space, dedicated SMT lines, and strict full-process QC, we support OEM/ODM projects for customers in over 100 countries. To learn more about our team, factory, and production capabilities.

Product Certifications & Compliance

Our products comply with international standards including UL, ETL, CE, and RoHS certifications to support different market requirements.

4-LED SMD5050 RGB LED Module Quality Control Process

We apply strict quality inspection standards throughout production to ensure stable performance and reliable quality before shipment.
