Key Features of 120LEDs/m 3014 LED Strip Lights
1. 120LEDs/m for a Brighter and More Even Light
This 12V 3014 LED strip uses 120 LEDs per meter, so the light looks denser and a bit more polished than the 60LEDs/m version. It gives you a brighter, more even strip of light, which is useful when the project needs a cleaner look inside cabinets, display areas or other narrow spaces.
2. 25mm Cut Unit for More Flexible Layouts
With a 25mm minimum cut length, this strip gives you more freedom when you need to adjust the length to fit a small space. That makes it easier to work on custom lighting jobs, especially when the project has corners, short sections or tight fitting points.
3. 100-120lm/W Output for Good Everyday Brightness
This model gives a useful brightness range of 100-120lm/W, so it is not just slim, but also efficient enough for practical indoor lighting. It is a good choice when you want a clean lighting effect without going to a much higher power strip.
4. 8mm Slim PCB for Narrow Installations
The strip comes with an 8mm slim PCB, so it is still easy to fit into compact spaces without looking bulky. It works well when you need a neat installation inside cabinets, shelves, profiles or slim lighting channels.
Which SMD3014 LED Strip Light Fits Your Project? (Series Comparison Guide)
| Feature / Model | YS-RN3014X60 (60 LEDs/m) |
YS-RN3014W120 (120 LEDs/m, This item) |
YS-RN3014X168 (168 LEDs/m) |
| PCB Width | 5mm (Super Slim) | 8mm (Standard) | 6mm (Ultra-Narrow) |
| Input Voltage | 12V DC | 12V DC | 24V DC |
| Power Output | 7.2 W/m | 12 W/m | 16.8 W/m |
| Luminous Flux | 600 - 720 lm/m | 1080 - 1200 lm/m | 1512 - 1680 lm/m (Ultra-Bright) |
| Minimum Unit | 50mm (Every 3 LEDs) | 25mm (Every 3 LEDs) | 35.7mm (Every 6 LEDs) |
| Summary in One Sentence | Fits tightest edge spaces and Cost-effective Choice | Good for cabinet and balance of cost & effect | Maximum brightness & dot-free |
Click above images to view full specs & details

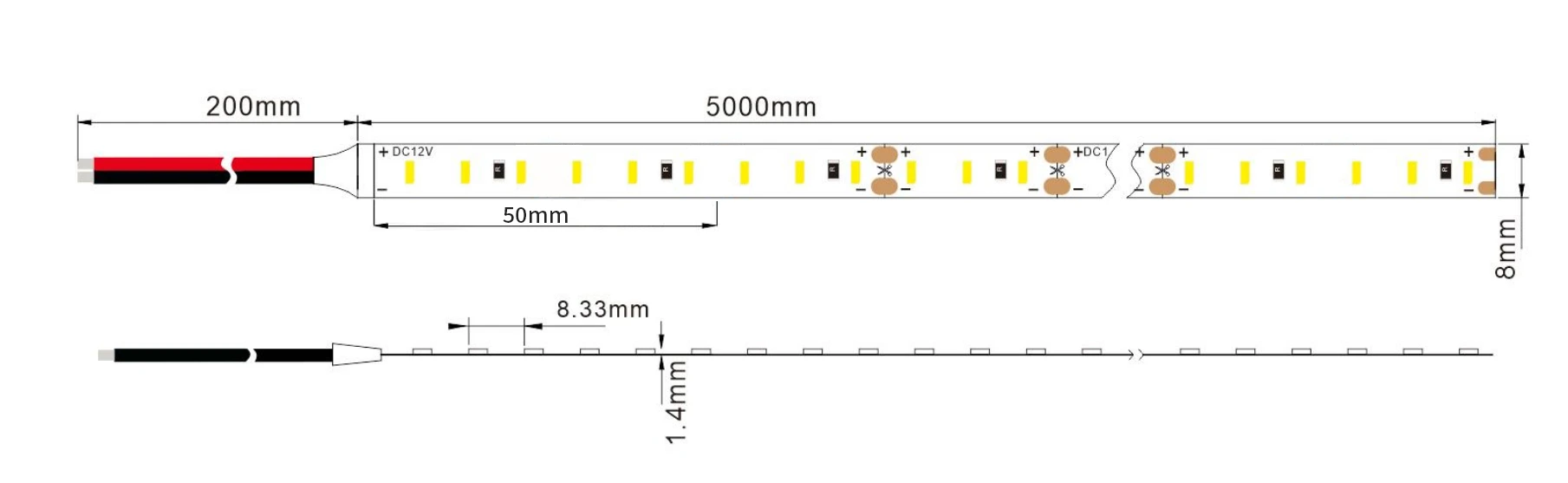

120LEDs/m 3014 LED Strip Lights Dimensions

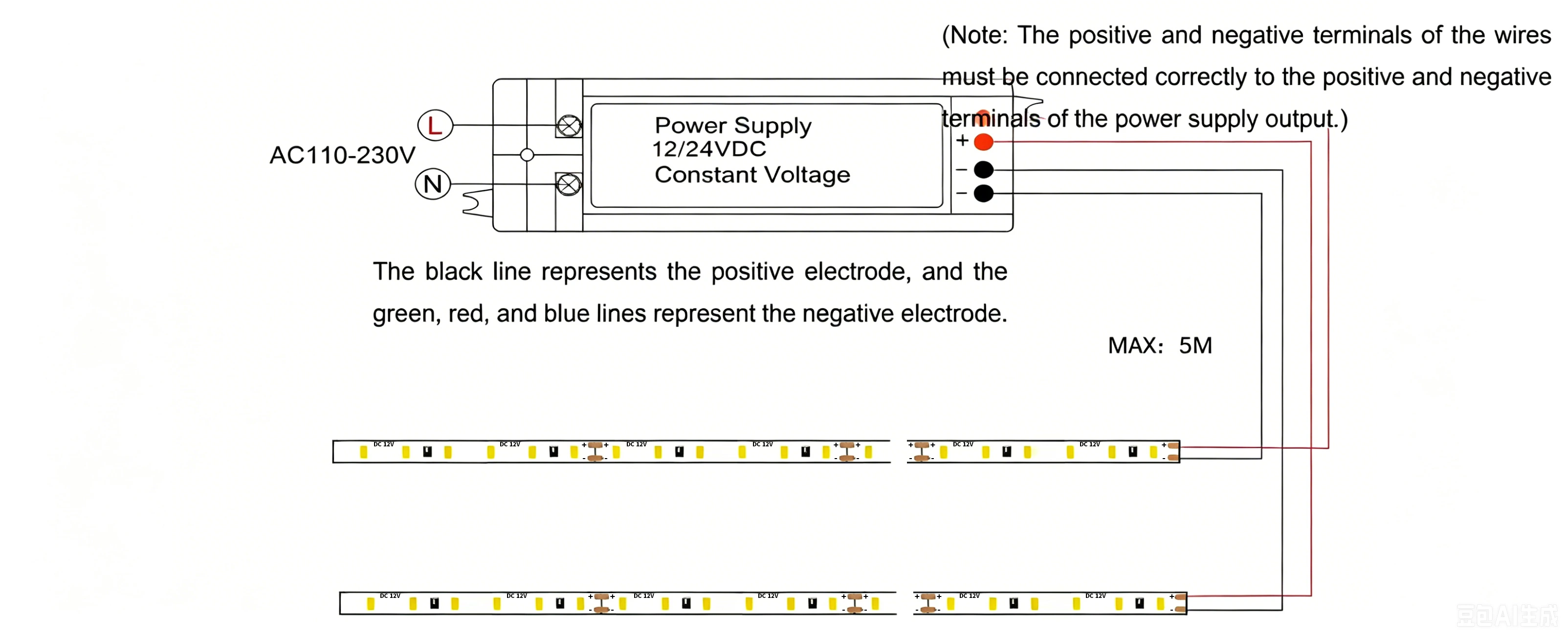

120LEDs/m 3014 LED Strip Lights Wiring Diagram & Installation Guide
Click here to request a free quote of YS-RN3014X120 LED strip lights
Recommended Applications for 120LEDs/m 3014 LED Strip Lights
1. Narrow-Gap Lighting
A practical choice for tight spaces and slim installation areas.
If the lighting space is limited and you need a strip that can still fit neatly, this model is a strong option.
2. Accent Lighting
Good for small accent lines and decorative indoor lighting.
If the lighting space is limited and you need a strip that can still fit neatly, this model is a strong option.

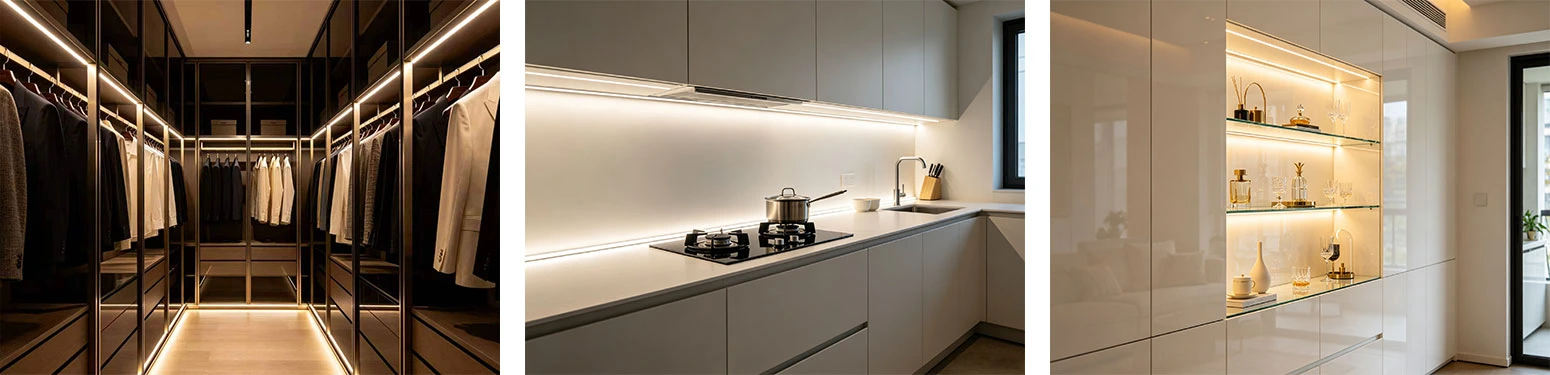

3. Cabinet Lighting
A good fit for cabinets, shelves and storage areas.
Because the strip is slim and the light is more even, it works well when you want a clean line of light inside a cabinet without making the space look crowded.
Waterproof & IP Protection Options for 120LEDs/m 3014 LED Strip Lights
| Picture |  |
 |
 |
 |
 |
 |
| Description | Unprotected bare board | Flat Glue Series | Spray Glue Series | PU Glue Series | Silicone Tube Series | silicone extrusion Series |
| IP Rate | IP20 | IP65 | IP65 | IP65 | IP65 | IP68 |
| Lumen Output Rate | 100% | 98% | 98% | 98% | 95% | 90% |

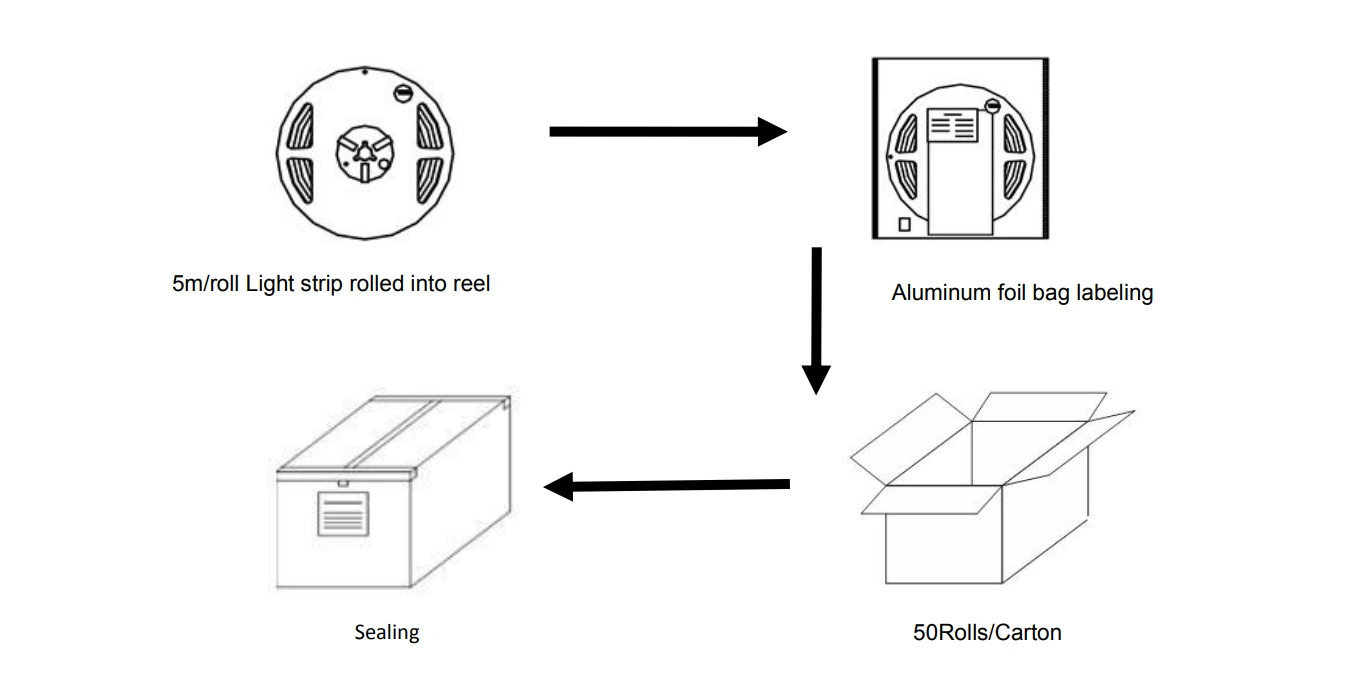

Packaging & Shipping Information for 120LEDs/m 3014 LED Strip Lights
| Item No. |
Qty per Rolls(m) |
Qty per Carton(m) |
Total Weight(kg) |
Dimension of outer carton（mm) | ||
| Length | Width | Height | ||||
| YS-RN3014X120 | 5 | 250 | 5.8 | 520 | 300 | 220 |
Professional 120LEDs/m 3014 LED Strip Lights Manufacturer & Supplier
Founded in 2013, YESUN LED is a Shenzhen-based manufacturer specializing in LED signage and commercial lighting solutions. With 5,000㎡ of automated factory space, dedicated SMT lines, and strict full-process QC, we support OEM/ODM projects for customers in over 100 countries. To learn more about our team, factory, and production capabilities, please visit our About Us page.
Product Certifications & Compliance
Our products comply with international standards including UL, ETL, CE, and RoHS certifications to support different market requirements.
For complete certification files and downloadable documents, please visit our Certificates Download Center.
120LEDs/m 3014 LED Strip Lights Quality Control Process
We apply strict quality inspection standards throughout production to ensure stable performance and reliable quality before shipment.
