Key Features of Long Cascade COB LED Strip Lights

1. 20-Meter Long Cascade – One Power Source for Large Areas

This COB strip supports long cascade runs, making it easy to cover large spaces like gaming room perimeters, arcade machine rows, or amusement ride outlines without multiple power injections. There are joint points every 500mm for cutting and connection, and brightness remains consistent across most of the length with a proper 24V supply.

2. Low 10W/m Power – Cooler, More Efficient

At just 10W per meter (900–1000 lm/m), this strip runs cooler than many 12-15W/m COB strips. Lower heat means longer lifespan and smaller, cheaper power supplies – especially important for 20m installations where total power reaches ~180W.

3. 7 Color Options – 3 Whites + 4 Pure Colors

Choose from 3000K Warm White, 4000K Neutral White, 6500K Pure White, or Red, Green, Blue, Yellow. Each color is optimized for its use case – warm white for cozy lounge areas, pure white for task lighting, RGBY for gaming setups or amusement park accents.

4. Easy Installation – Cut Every 50mm, Bend to 20mm

With 50mm cutting intervals, you can customize length down to the centimeter. The flexible 10mm-wide PCB bends to a minimum diameter of 20mm – ideal for curved arcade machines, circular displays, or tight corners. Comes with 300LSE adhesive backing.

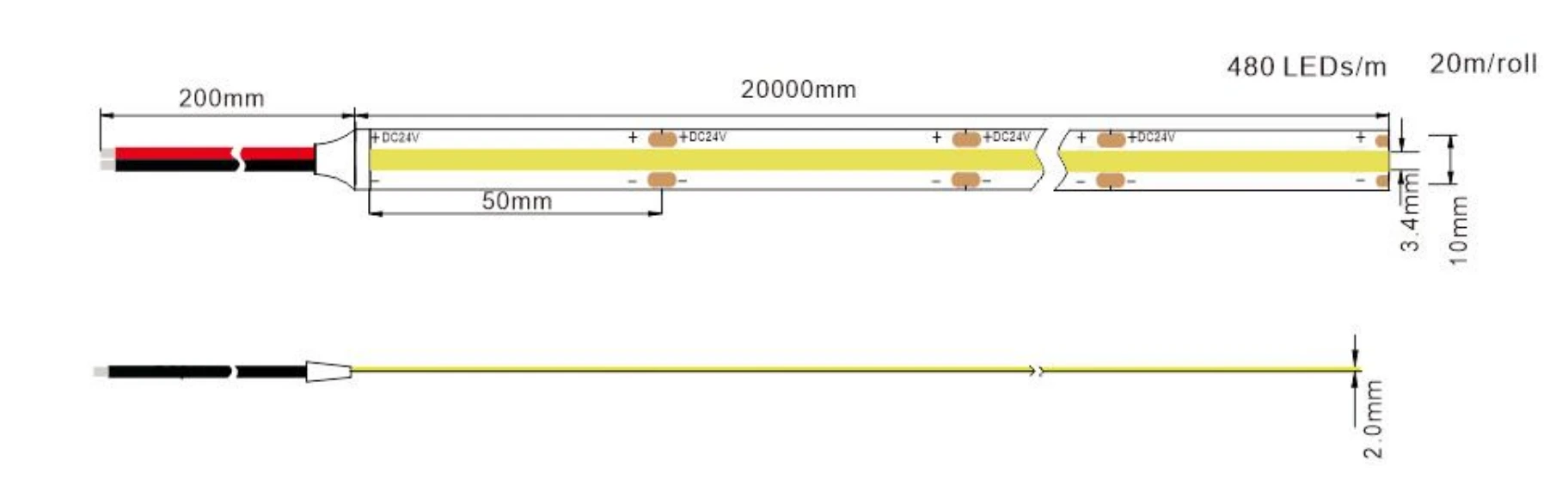

Long Cascade COB LED Strip Lights Dimensions



Optional Long Cascade COB LED Strip Lights Accessories and Connectors

Accessory Name	Picture	Dimension	Functional Description
PCB to PCB Connector		10*10*5.2mm	8MM-2P solderless connector(PCB to PCB) \ Suitable for PCB 8mm width strip
PCB to wire Connector		10*10*5.2mm	8MM-2P solderless connector(PCB to Wire) \ Compatible with 20/22 AWG wire \ 20#(5A); 22#(4A) \ Suitable for PCB 8mm width strip
“L” Connector		20*16.5*5.2mm	8MM-2P solderless connector (PCBtoPCB) Suitable for PCB 8mmwidth strip



Click here to request a free quote of YS-RNCOBX480C10LC LED strip lights

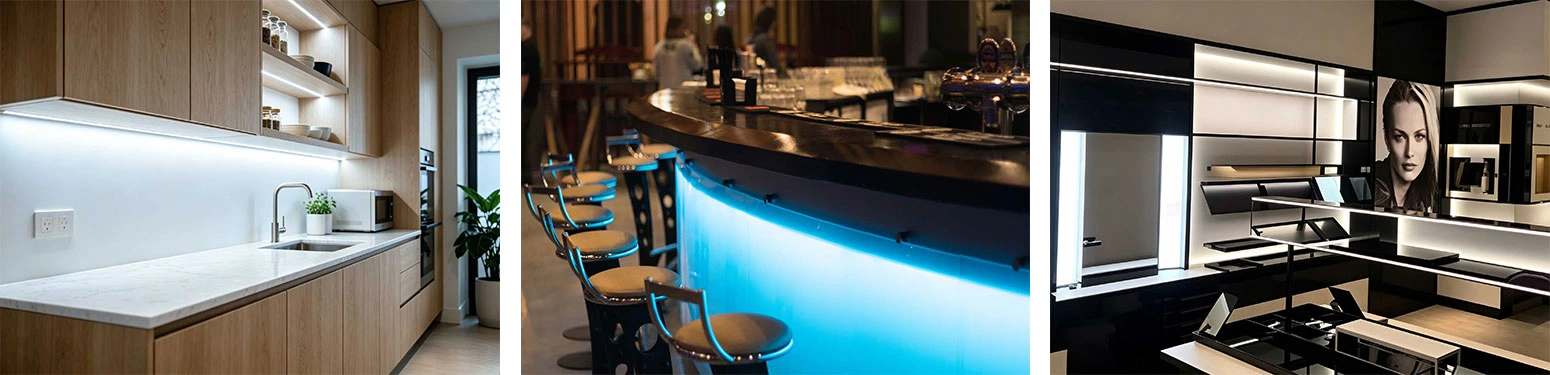

Recommended Applications for Long Cascade COB LED Strip Lights

1. Gaming Room & Desk Backlighting

Level up your gaming setup with uniform color

Run this strip behind monitors, under desks, or around room perimeters. The 20m long cascade covers a full gaming room from one power source – no complex wiring, and the dotless COB light eliminates distracting hotspots on glossy screens.

2. Amusement Park & Arcade Decorative Lighting

Make your attraction pop with bright, even color

Outline ride structures, arcade cabinets, ticket booths, or walkways. 480 LEDs/m ensures vivid, consistent color across 20m runs – great for red/green/blue/yellow brand matching and festive themes.

3. Commercial Indirect Lighting

Clean, modern accent lines for bars and lounges

Install in ceiling coves, behind headboards, or under bar counters. The long cascade minimizes power injection points, saving labor and giving a professional finish without visible LED dots.



Waterproof & IP Protection Options for COB LED Strip Lights(Based on Different Widths)

Description	Silicone extrusion series	Hollow transparent silicone Series	Hollow dual-color silicone extrusion series	Hollow arc-shaped silicone extrusion series	Silicone extrusion series	Solid transparent silicone extrusion series
IP Rate	IP65	IP67	IP67	IP67	IP67	IP68
Applicable to	For 5mm PCB Width COB Strip	For 8mm/10mm/12mm PCB Width COB Strip	For 10mm PCB Width COB Strip	For 8mm PCB Width COB Strip	For 3mm PCB Width COB Strip	For 8mm/10mm/12mm PCB Width COB Strip

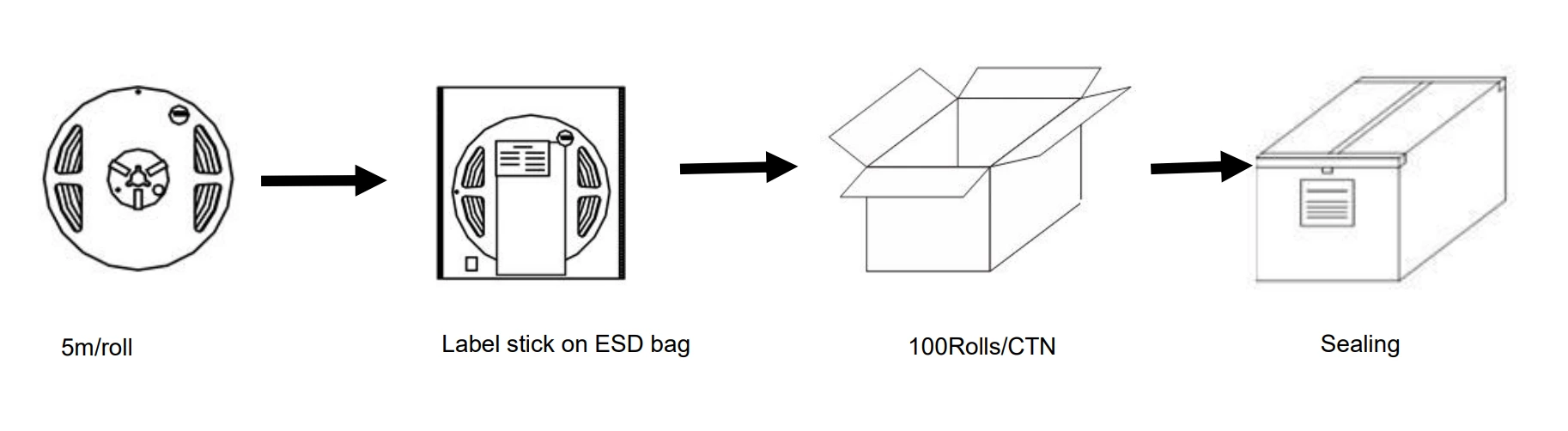

Packaging & Shipping Information for Long Cascade COB LED Strip Lights

Item No.	Qty per Rolls(m)	Qty per Carton(m)	Total Weight(kg)	Dimension of outer carton（mm)
				Length	Width	Height
YS-RNCOBX480C10LC	20	500	12.5	480	480	260



Professional COB LED Strip Lights Manufacturer & Supplier

Founded in 2013, YESUN LED is a Shenzhen-based manufacturer specializing in LED signage and commercial lighting solutions. With 5,000㎡ of automated factory space, dedicated SMT lines, and strict full-process QC, we support OEM/ODM projects for customers in over 100 countries. To learn more about our team, factory, and production capabilities, please visit our About Us page.



Product Certifications & Compliance

Our products comply with international standards including UL, ETL, CE, and RoHS certifications to support different market requirements.
For complete certification files and downloadable documents, please visit our Certificates Download Center.

COB LED Strip Lights Quality Control Process

We apply strict quality inspection standards throughout production to ensure stable performance and reliable quality before shipment.
