Name: YS-FSP86060A-X048 48LEDs/m S Shape SMD 6060 LED Strip Light | 12V IP65 for Commercial Lighting
Brand: YESUN
SKU: KK1

Features of YS-FSP86060A-X048 SMD 6060 LED Strip Light

1. 48 LEDs/m & 160° Wide Beam Angle for Superior Uniform Illumination

Featuring a 48 LEDs/m configuration (double the LED count of standard 24 LEDs/m models) and 160° ultra-wide viewing angle, this SMD 6060 LED strip delivers significantly brighter and more even light distribution. The closely packed LEDs eliminate dark spots and shadow gaps across large signage surfaces, while the wide beam angle maximizes light coverage—reducing the number of strips needed for projects and improving overall energy efficiency for your advertising displays..

2. Precise 20.83mm Cuttable Segments for Custom Signage Installation

Designed with precise cut points every 20.83mm, this LED strip allows you to trim it to exact lengths without damaging the circuit—perfect for fitting small letter gaps, uniquely shaped light boxes, or custom display elements. The cuttable design eliminates waste, making it easy to adapt the strip to any signage size, from compact storefront signs to large outdoor advertising light boxes.

3. IP65 Spray Glue Waterproof Design for Indoor & Outdoor Versatility

With an IP65 waterproof rating achieved via advanced spray glue technology, this LED strip is protected against dust, moisture, and splashing water. The spray glue coating maintains the strip’s flexibility while providing reliable water resistance, making it suitable for both indoor light boxes and outdoor signage applications that need to withstand humidity, rain, and harsh weather conditions.

4. 2-5cm Front Lighting with Spotless, Shadow-Free Output

Thanks to the high-density 48 LEDs/m design, this strip provides 2-5cm front lighting that delivers completely spotless, shadow-free illumination. Unlike lower-density strips that create uneven light with visible dark areas, our SMD 6060 LED strip ensures consistent brightness across the entire surface of your signage, resulting in a professional, high-quality finish that enhances brand visibility.

YS-FSP86060A-X048 SMD 6060 LED Strip Light Dimensions(mm)

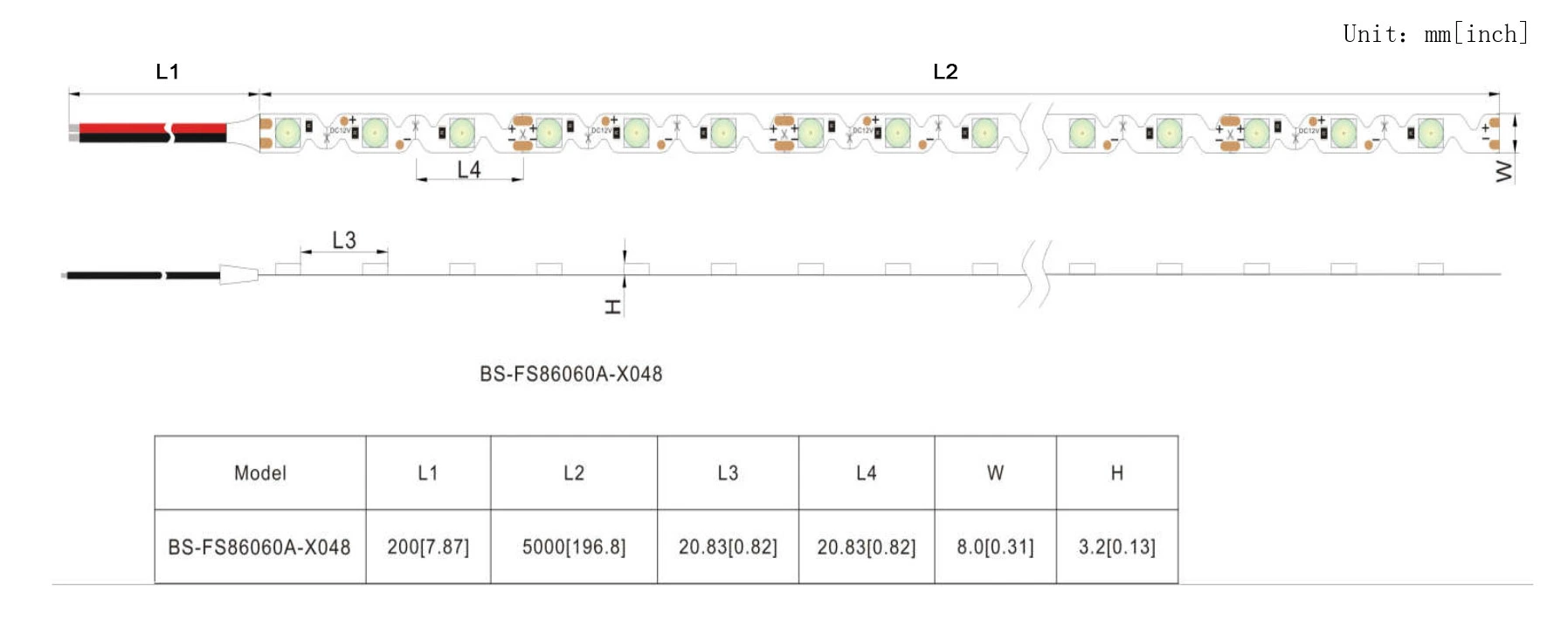

Model YS-FS86060A-X048 S-shaped LED strip specifications & dimensions

YS-FSP86060A-X048 SMD 6060 LED Strip Light Installation

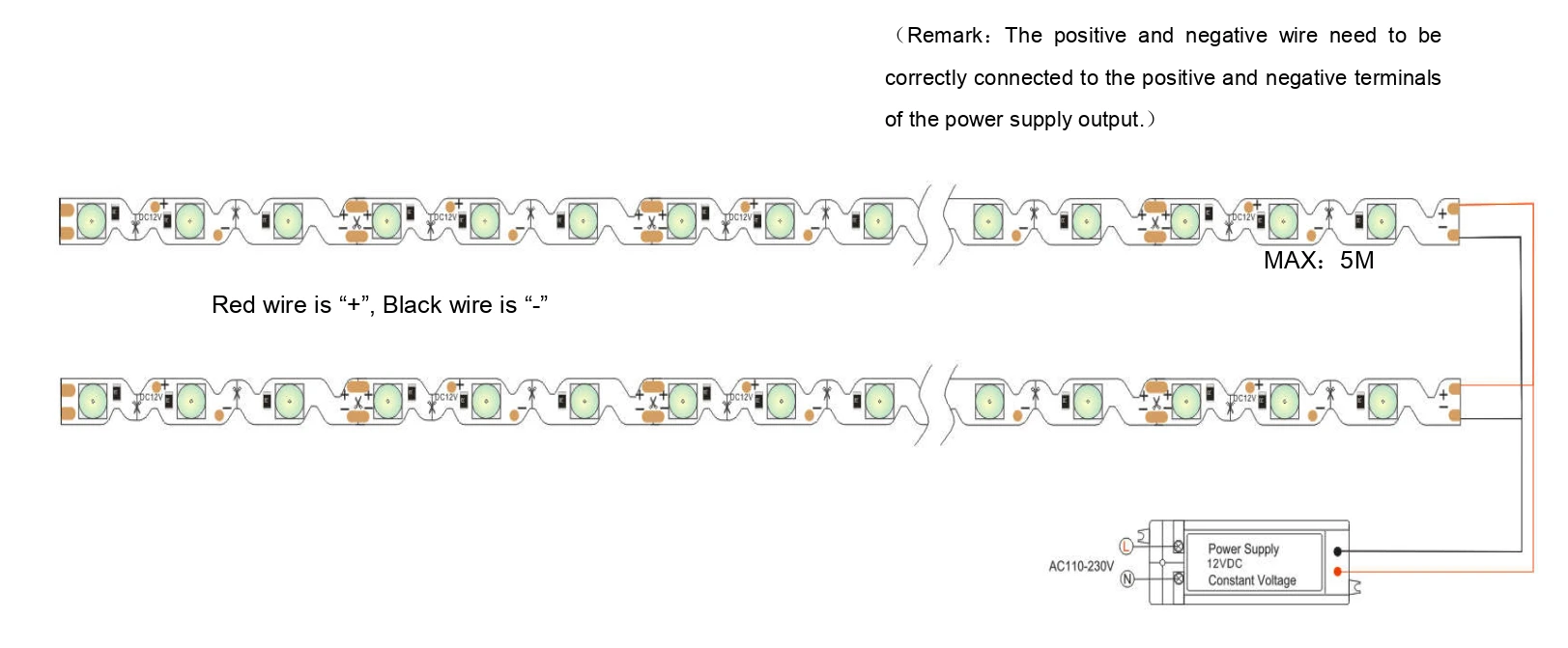

DC12V LED strip wiring guide: positive-negative power supply connection

Click here to request a free quote of YS-FSP86060A-X048 LED strip light

Applications of YS-FSP86060A-X048 SMD 6060 LED Strip Light

1. Outdoor & Indoor Commercial Signage

This 48 LEDs/m high-density LED strip is ideal for both outdoor and indoor commercial signage, delivering bright, uniform light that makes your brand stand out day and night. The IP65 waterproof rating ensures reliable performance in outdoor environments, while the 160° wide beam angle maximizes light coverage for storefront signs, building facades, and large advertising billboards.

2. Channel Letters & Shaped Luminous Fonts

Perfect for channel letters and shaped luminous fonts, the S-type flexible design and spotless illumination ensure every part of your brand’s name or logo is evenly lit. The 48 LEDs/m density eliminates dark spots in small letter gaps, even in complex or curved letter designs, delivering a professional, high-end look for storefront branding, office signage, and custom luminous displays.

3. Custom Themed & 3D Advertising Projects

Thanks to its flexible S-type design, cuttable segments, and versatile waterproof rating, this LED strip is perfect for custom themed and 3D advertising projects. Whether you need to light up curved signage, 3D logos, themed displays, or custom decorative installations, the strip can be shaped and trimmed to fit your exact requirements, delivering reliable, high-quality illumination for any creative project.

S-shaped LED strip applications: advertising signs, bus stop billboards, channel letters

YS-FSP86060A-X048 SMD 6060 LED Strip Light IP Rating Customization Options

Description	Unprotected bare board	Spray Glue Series
IP Rate	IP20	IP65
Lumen Output Rate	100%	98%

Packing of YS-FSP86060A-X048 SMD 6060 LED Strip Light

Item No.	Qty per Rolls(m)	Qty per Carton(m)	Total Weight(kg)	Dimension of outer carton（mm)
				Length	Width	Height
YS-FSP86060A-X048	5	250	9.0	520	300	220

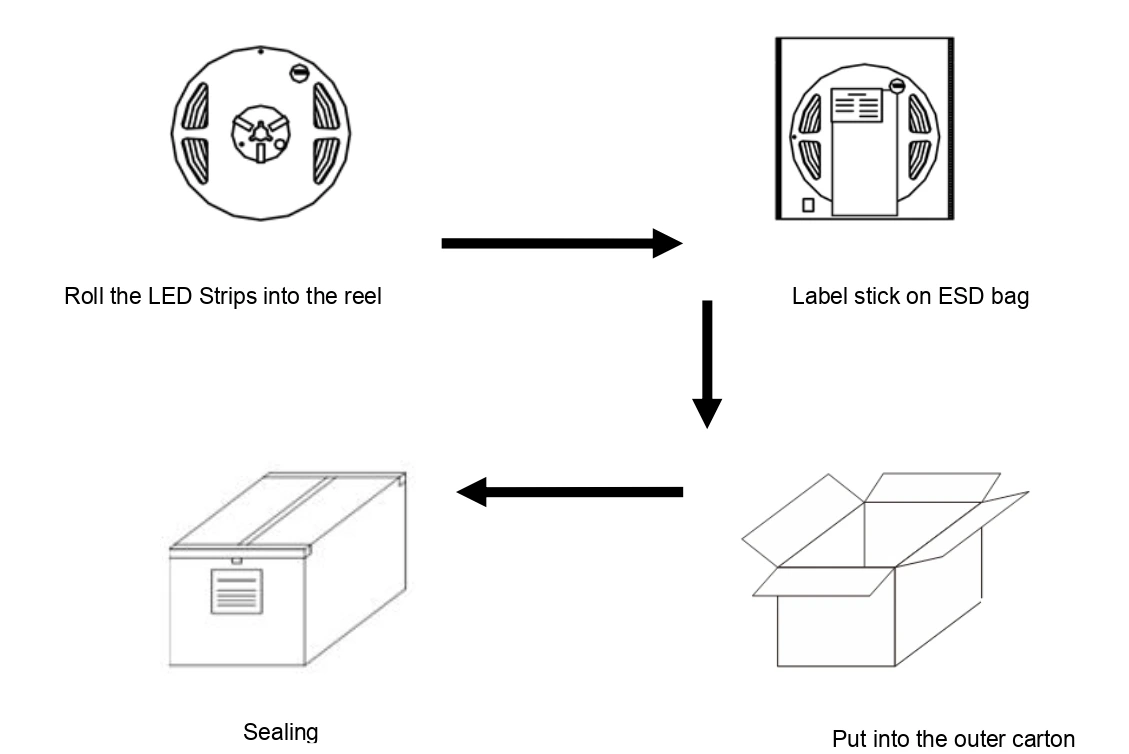

Anti-static packaging process for LED strips: reel → ESD bag → carton

Professional SMD 6060 LED Strip Light Manufacturer & Supplier

Founded in 2013, YESUN LED is a Shenzhen-based manufacturer specializing in LED signage and commercial lighting solutions. With 5,000㎡ of automated factory space, dedicated SMT lines, and strict full-process QC, we support OEM/ODM projects for customers in over 100 countries. To learn more about our team, factory, and production capabilities, please visit our About Us page.

Product Certifications & Compliance

Our products comply with international standards including UL, ETL, CE, and RoHS certifications to support different market requirements.
For complete certification files and downloadable documents, please visit our Certificates Download Center.

SMD 6060 LED Strip Light Quality Control Process

We apply strict quality inspection standards throughout production to ensure stable performance and reliable quality before shipment.

Worker soldering wires for LED module assembly Injection molding process for LED module housing Applying 3M adhesive backing to LED strip lights Post-reflow inspection for LED modules

Post-reflow inspection for LED modules Automatic SMT placement machine for LED assembly Automatic solder paste printing machine Automatic glue dispensing machine for LED products

LED module lighting test Electrical performance testing for LED modules LED module aging test process Integrating sphere testing for LED lighting products
