Features of RGB Neon LED Strip Lights

1. 8×16mm Profile for More Visible Neon Outlines

Built with SMD3535 RGB LEDs, this strip creates colorful lighting effects for signs, outlines and decorative projects. It works well when the lighting needs to change color instead of staying in one fixed color.

2. Flexible Silicone Construction

The silicone body can be bent into different shapes, making it easier to follow curves, corners, letters and custom graphics. It is a practical choice for installations where rigid lighting bars would be difficult to fit.

3. 6×12mm and 8×16mm Profiles

The series includes both 6×12mm and 8×16mm versions, giving customers more flexibility when choosing the profile size for a project. The two sizes can be selected according to the visual effect and available installation space.

4. 50m Total Roll Supply

The standard supply is 25m × 2, with a total of 50m per roll. Longer sections are useful for building outlines, landscape features and other projects where many short pieces would create unnecessary joints.

RGB Neon LED Strip Lights Dimensions(mm)

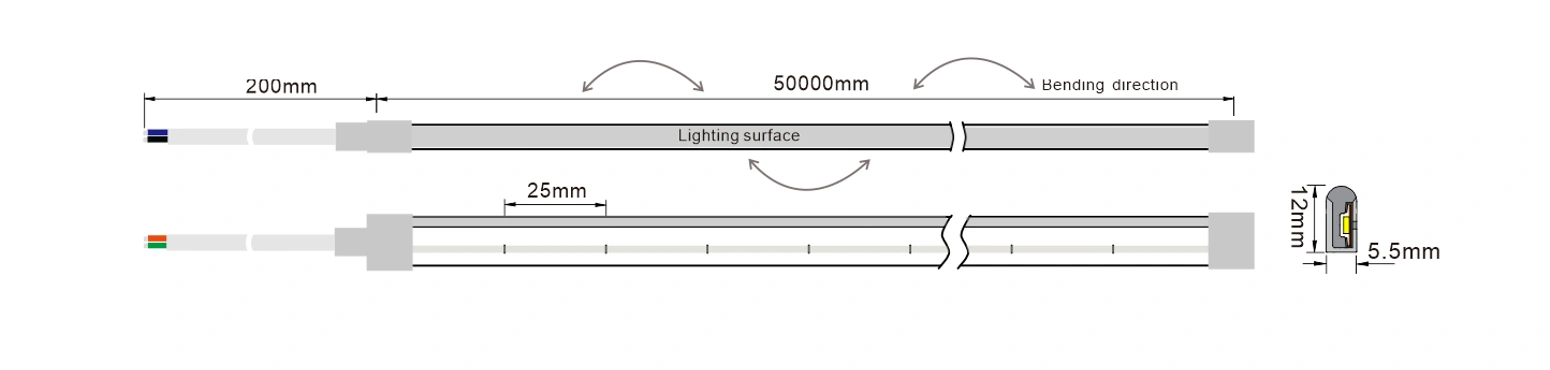

Neon light strips of model YS-NR0612A-Q120: 6*12*50000mm

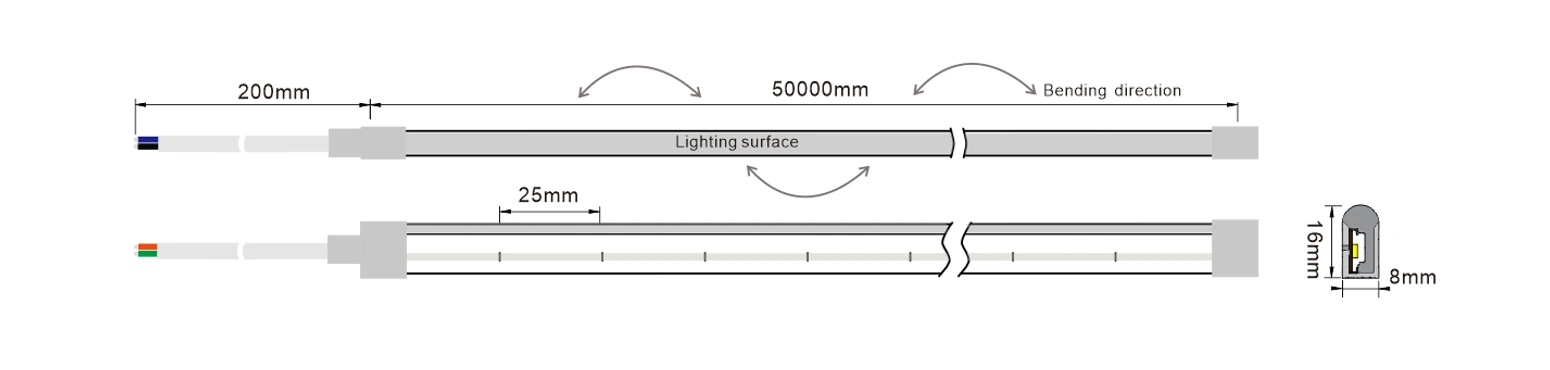

Neon light strips of model YS-NR0816A-Q120: 8*16*50000mm



RGB Neon LED Strip Lights Controller Selection and Specification

Picture	Model No.	Working voltage	Working current	Standby current	Remote control signal	Remote control area	Standby time	Power supply
	LED Remote Control R8-1	3VDC	<5mA	<10uA	2.4GHz, remote control distance 30 meters	1 zone	1 year	CR2032 button battery
	LED Remote Control RT4							2 AA batteries
Picture	Model No.	Input voltage	Input current	Output voltage	Output current	Output power	PWM frequency
	LED Controller V3	12-24VDC	12.5A	3X(12-24)VDC	3CH, 4A/CH	144-288W (12-24V)	1000Hz
	LED Controller V3-L	12-48VDC	18.5A	3X(12-48)VDC	3CH, 6A/CH	3X(72-288)W
Picture	Model No.	Single gross weight	Static power consumption	Connection mode	Maximum current	Supply voltage	Output channel	Output power
	Mini LED Controller 28-key RF-M3	0.04Kg	<1W	common anode	6A	DC5V-24V	<2A*3Channel	12V<72W; 24V<144W

Accessories of RGB Neon LED Strip Lights

Name	Picture	Dimension	Description
Cap		15*9*15mm	Outsourcing plug, after cutting LEDs, sealed with glue for waterproof protection
Cap		10*5*6mm	The color of cap is same with Neon Flex LED
Aluminum Clip		25*12*8mm	For fixed the neon flex
Installation studs		1000*8*12mm	For fixed the neon flex

Recommended Applications for RGB Neon LED Strip Lights

1. Colorful Signage and Logo Outlines

RGB lighting adds more flexibility to signs and logos that need different colors for branding, events or decorative effects. The flexible body can follow letters, symbols and irregular outlines without requiring rigid sections.

2. Landscape Decorative Lighting

The IP67 design makes it suitable for outdoor landscape projects such as garden borders, walls, pathways and decorative structures. RGB color changes can also be used to create different looks for special events or nighttime displays.

3. Event and Temporary Decorative Installations

Packaging & Shipping Information for RGB Neon LED Strip Lights

Item No.	Qty Per Bag(m)	Qty/CTN(m)	Weight/Roll(Kg)	G.W(Kg)	Quter box size(mm)
					L	W	H
YS-NR0612A-Q120	50	50	4.6	5	315	315	100
YS-NR0816A-Q120	50	50	7.5	8	320	320	190

Professional RGB Neon LED Strip Lights Manufacturer & Supplier

Founded in 2013, YESUN LED is a Shenzhen-based manufacturer specializing in LED signage and commercial lighting solutions. With 5,000㎡ of automated factory space, dedicated SMT lines, and strict full-process QC, we support OEM/ODM projects for customers in over 100 countries. To learn more about our team, factory, and production capabilities.

Product Certifications & Compliance

Our products comply with international standards including UL, ETL, CE, and RoHS certifications to support different market requirements.

RGB Neon LED Strip Lights Quality Control Process

We apply strict quality inspection standards throughout production to ensure stable performance and reliable quality before shipment.
