Features of YS-FSP26060A-X024 S Shape SMD 6060 LED Strip Lights:
1. S Shape Flexible Design for Versatile Signage Installation
Our YS-FSP26060A-X024X LED strip features a unique S-shaped circuit design, making it easy to bend and adapt to irregular contours of channel letters, signage frames, and curved advertising structures. Unlike standard linear strips, the S-shape allows for seamless installation around corners and complex shapes, eliminating gaps and ensuring uniform light coverage across your entire sign or display.
2. 160° Ultra-Wide Beam Angle for Even, Shadow-Free Illumination
Built with SMD 26060 LEDs offering a 160° wide beam angle, this strip delivers ultra-broad, even light distribution that eliminates dark spots and hotspots common in narrow-angle strips. The wide illumination is specifically optimized for signage and channel letters, ensuring uniform brightness across the entire sign face—even for letters or structures taller than 3cm, without uneven lighting or visible shadows.
3. Single-LED Cuttable Design for Precise, Waste-Free Installation
This strip is engineered with a Single-LED cuttable design, allowing you to trim it exactly to the length you need without wasting LED segments. Unlike strips with longer cut intervals, you can cut individual LEDs to fit tight sign sections, small letter details, or custom-sized frames, reducing material waste and ensuring a perfect fit for every project.
4. IP65 Waterproof Rating for Semi-Outdoor & Humid Environments
With an IP65 waterproof rating (spray glue coated), this SMD 26060 LED strip is protected against water splashes, dust, and humidity, making it suitable for semi-outdoor signage, storefront channel letters, and humid indoor environments like commercial kitchens or restrooms. The waterproof design prevents moisture damage, ensuring reliable performance in non-submerged outdoor applications.

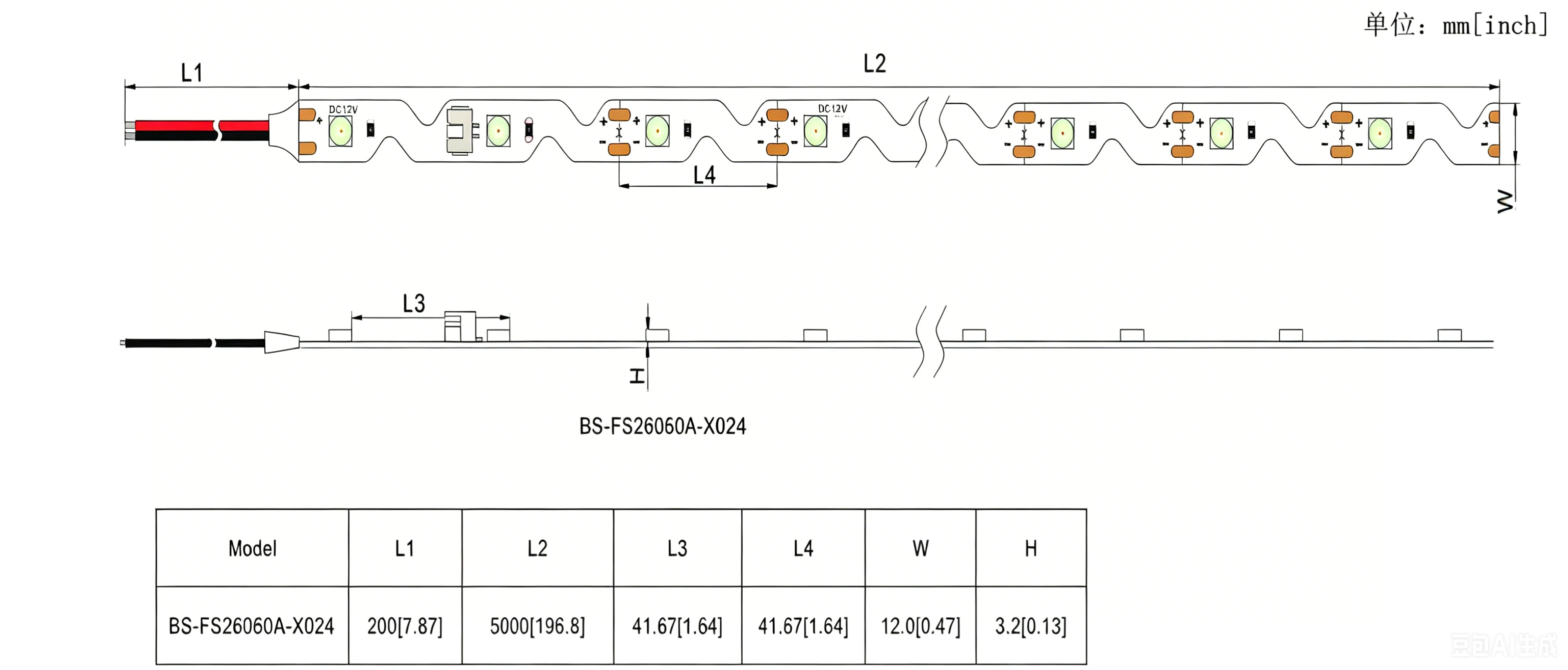

YS-FSP26060A-X024 S Shape SMD 6060 LED Strip Lights Dimensions(mm):

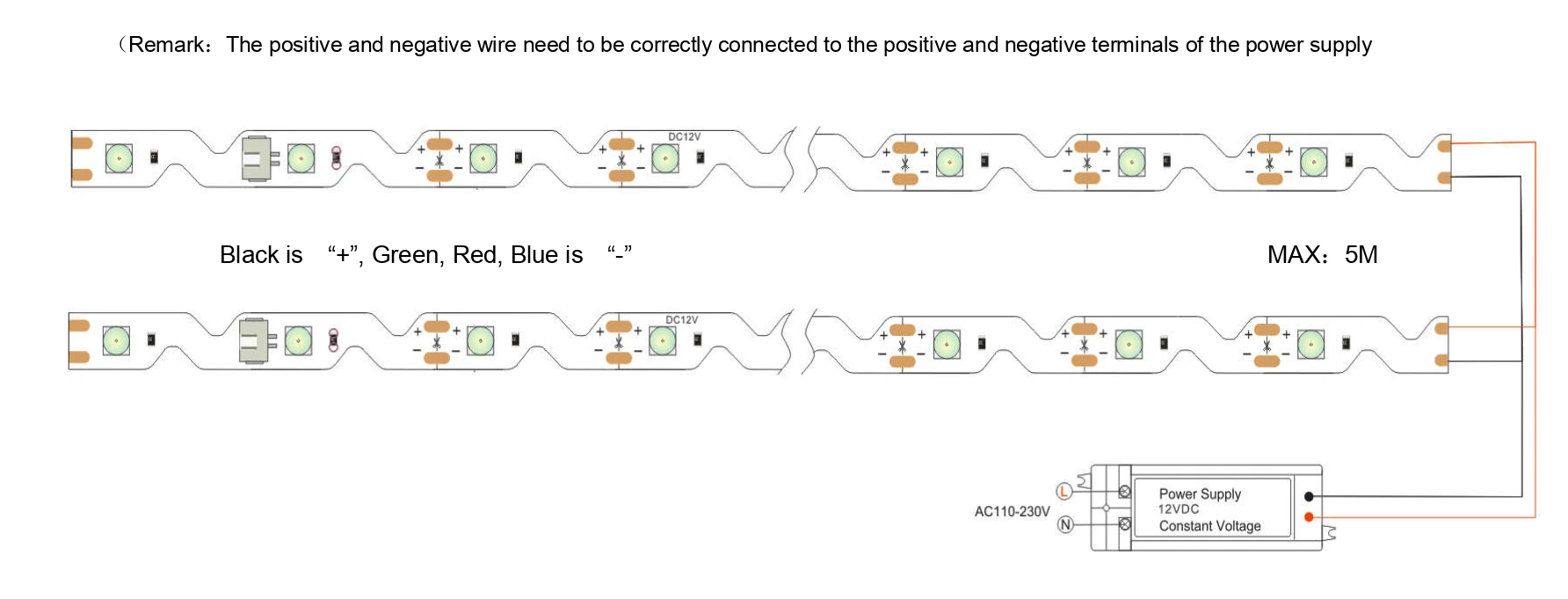

YS-FSP26060A-X024 S Shape SMD 6060 LED Strip Lights Installation:
Click here to request a free quote of YS-FSP26060A-X024 LED strip lights
Applications of YS-FSP26060A-X024 S Shape SMD 6060 LED Strip Lights:
1. Channel Letter & 3D Signage Lighting
The S-shaped design and 160° wide beam angle make this LED strip perfect for illuminating channel letters, 3D signage, and custom storefront signs. The even, shadow-free light ensures your brand logo or text is brightly and uniformly lit, day or night, enhancing visibility and curb appeal for retail stores, restaurants, and commercial businesses.
2. Advertising Lightbox & Billboard Lighting
Ideal for backlighting advertising lightboxes, billboards, and display panels, the wide 160° beam angle eliminates dark spots across large lightbox surfaces, ensuring consistent brightness for promotional graphics, posters, and digital displays. The IP65 waterproof rating also makes it suitable for outdoor lightboxes exposed to the elements.
3. Custom DIY Signage & Art Installations
YS-FSP26060A-X024 S Shape SMD 6060 LED Strip Lights IP Rating Customization Options:
| Picture |  |
 |
 |
 |
 |
 |
| Description | Unprotected bare board | Flat Glue Series | Spray Glue Series | PU Glue Series | Silicone Tube Series | silicone extrusion Series |
| IP Rate | IP20 | IP65 | IP65 | IP65 | IP65 | IP68 |
| Lumen Output Rate | 100% | 98% | 98% | 98% | 95% | 90% |

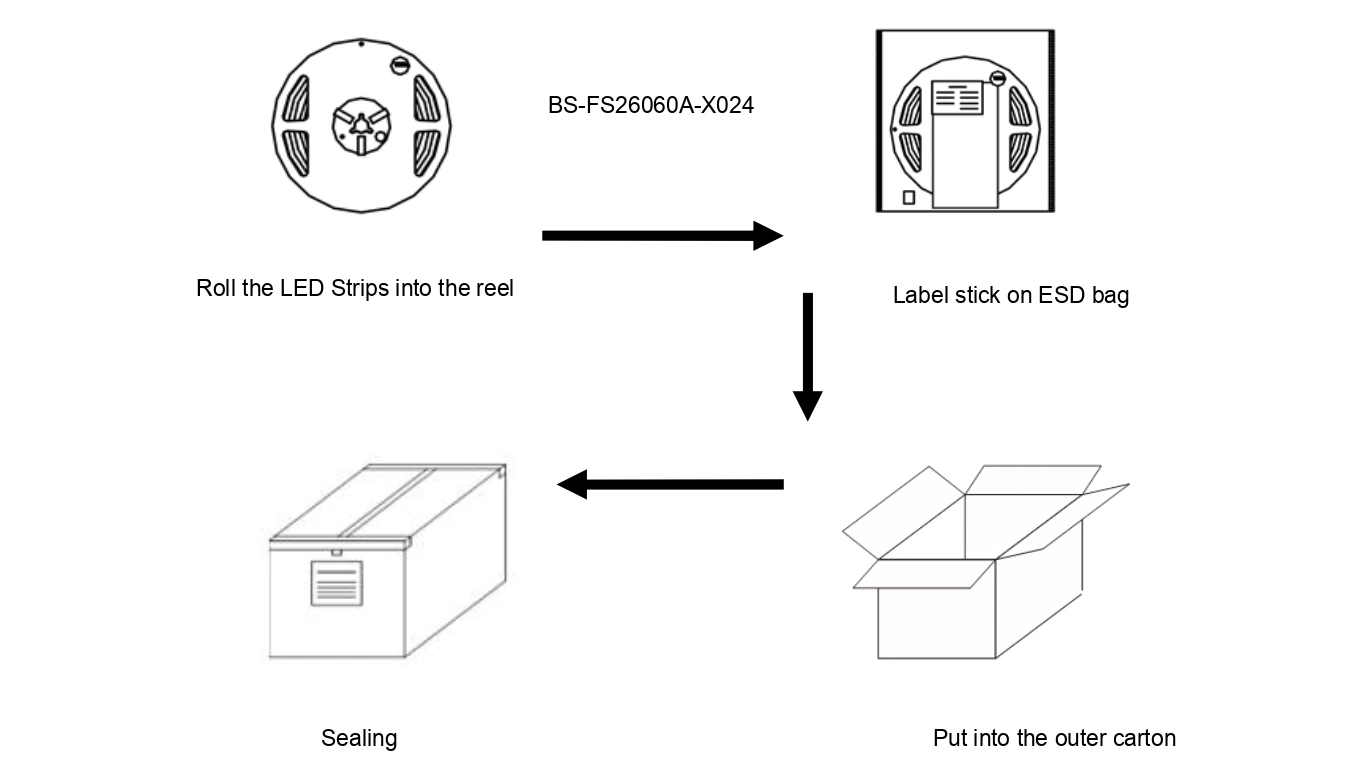

Packing of YS-FSP26060A-X024 S Shape SMD 6060 LED Strip Lights:
| Item No. |
Qty per Rolls(m) |
Qty per Carton(m) |
Total Weight(kg) |
Dimension of outer carton（mm) | ||
| Length | Width | Height | ||||
| YS-RN2835X60 | 5 | 300 | 7.0 | 520 | 300 | 220 |
Professional YS-FSP26060A-X024 S Shape SMD 6060 LED Strip Lights Manufacturer & Supplier:
Founded in 2013, YESUN LED is a Shenzhen-based manufacturer specializing in advertising signage LED lighting solutions including YS-RN3014X120 SMD 3014 LED strip lights, LED Strip with lens,Pixel S shape SMD LED strip for Office & Commercial Workspace Lighting, with CE/UL/RoHS certified products exported to over 100 countries and tailored for Narrow Channel letter, slim light boxes, and commercial advertising, supported by a 5,000m² automated factory with 6 dedicated SMT lines, strict full-cycle QC, and a team of 100+ professionals including 10+ R&D engineers to ensure a monthly output of over 1.5 million LED products and a minimum 3-year warranty for all bulk orders.
