Key Features of Slim 3mm/5mm Width COB LED Strip Lights

1. Roll-to-Roll Strip with No Joint Points

This COB strip is made in a roll-to-roll process, so the whole roll stays continuous without welding points. That gives the strip a cleaner look and makes it a better fit for projects where you want a smooth light line from start to finish.

2. Narrow Width Options for Tighter Builds

This model comes in 3mm and 5mm width options, so it is easier to fit into narrow channels and slim lighting structures. That makes it a practical choice for sign makers and project installers who need a strip that stays compact.

3. 20mm Cuttable Section for Flexible Layouts

The 20mm cut unit gives you good flexibility when setting up custom layouts. It is easy to adjust the strip for short sections, curved outlines or detailed sign work without wasting extra material.

4. 400LEDs/m for a Soft, Even Glow

With 400 LEDs per meter, the strip gives a soft and balanced light output. It is bright enough for signage and decorative work, but still keeps the glow smooth and comfortable, which helps the final result look neat.

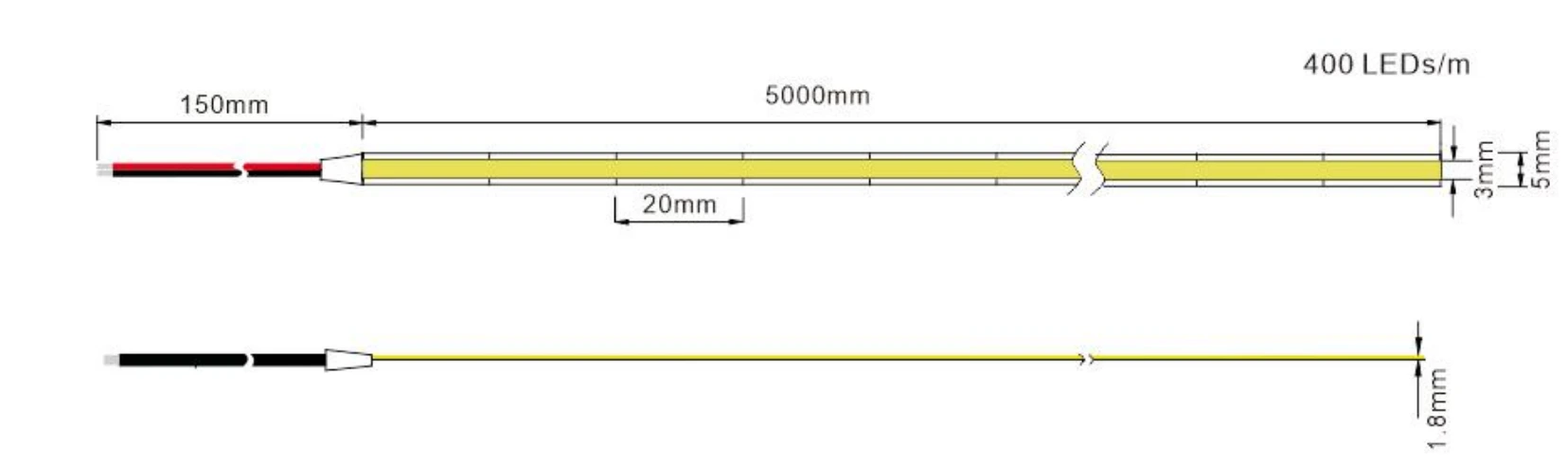

Slim 3mm/5mm Width COB LED Strip Lights Dimensions



Click here to request a free quote of YS-RN3014W120 LED strip lights

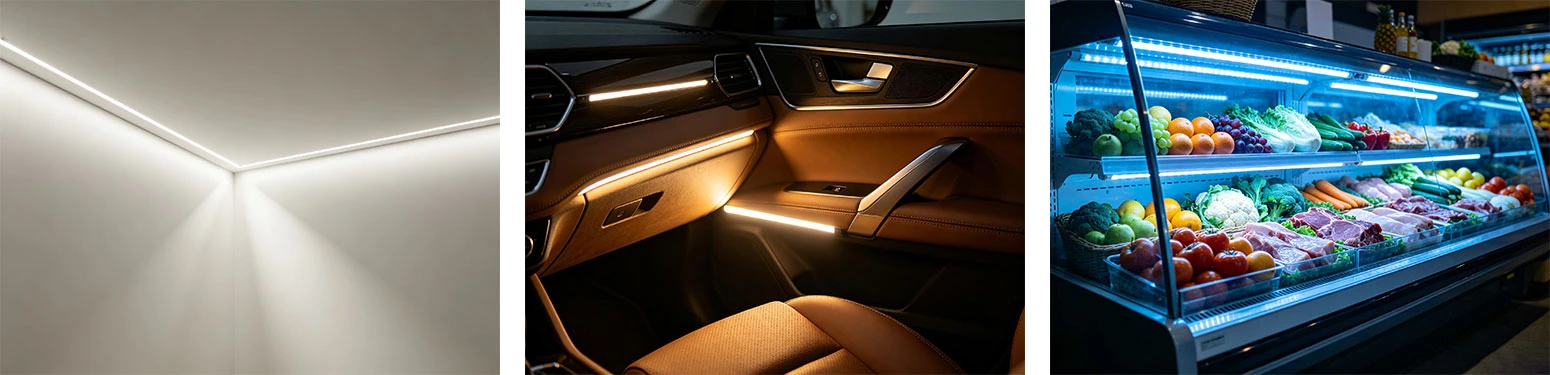

Recommended Applications for Slim 3mm/5mm Width COB LED Strip Lights

1. Main and Auxiliary Lighting

It also works for main and auxiliary lighting in commercial or indoor projects where a continuous, even light line is more important than high output.

2. Dark Groove Lighting

The narrow width and soft glow make it suitable for dark groove lighting and other concealed installations where the strip needs to stay hidden.

3. Decorative Indoor Lighting

You can use it for decorative lighting in places like amusement parks, game rooms, car atmosphere setups, motorcycle decorations, cabinets and wine cabinets.



Waterproof & IP Protection Options for COB LED Strip Lights(Based on Different Widths)

Description	Silicone extrusion series	Hollow transparent silicone Series	Hollow dual-color silicone extrusion series	Hollow arc-shaped silicone extrusion series	Silicone extrusion series	Solid transparent silicone extrusion series
IP Rate	IP65	IP67	IP67	IP67	IP67	IP68
Applicable to	For 5mm PCB Width COB Strip	For 8mm/10mm/12mm PCB Width COB Strip	For 10mm PCB Width COB Strip	For 8mm PCB Width COB Strip	For 3mm PCB Width COB Strip	For 8mm/10mm/12mm PCB Width COB Strip

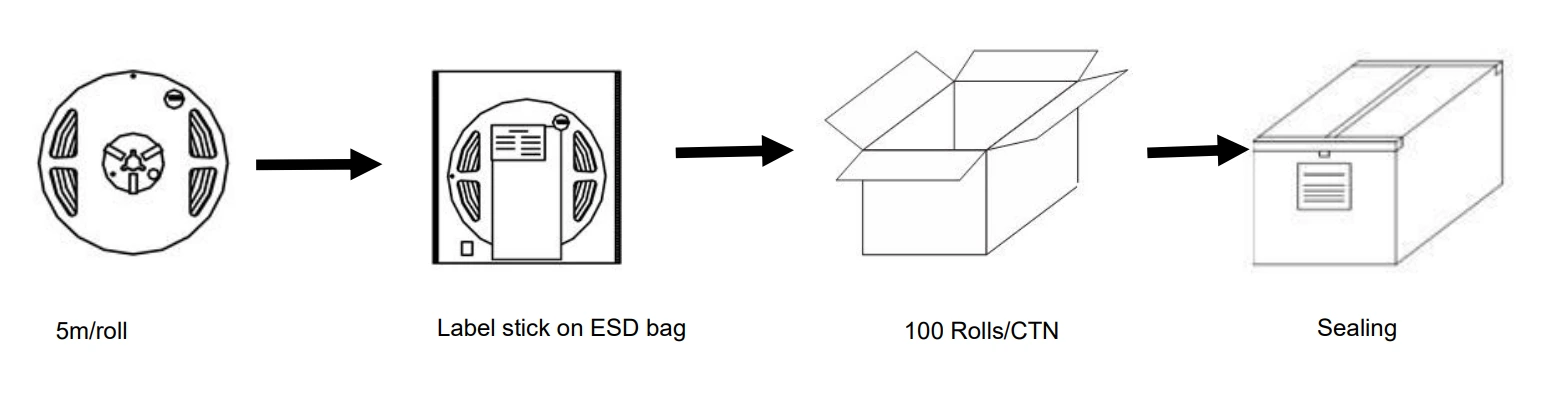

Packaging & Shipping Information for Slim 3mm/5mm Width COB LED Strip Lights

Item No.	Qty per Rolls(m)	Qty per Carton(m)	Total Weight(kg)	Dimension of outer carton（mm)
				Length	Width	Height
YS-RNCOBX400C05RR	5	500	9.2	480	480	260



Professional COB LED Strip Lights Manufacturer & Supplier

Founded in 2013, YESUN LED is a Shenzhen-based manufacturer specializing in LED signage and commercial lighting solutions. With 5,000㎡ of automated factory space, dedicated SMT lines, and strict full-process QC, we support OEM/ODM projects for customers in over 100 countries. To learn more about our team, factory, and production capabilities, please visit our About Us page.



Product Certifications & Compliance

Our products comply with international standards including UL, ETL, CE, and RoHS certifications to support different market requirements.
For complete certification files and downloadable documents, please visit our Certificates Download Center.

COB LED Strip Lights Quality Control Process

We apply strict quality inspection standards throughout production to ensure stable performance and reliable quality before shipment.
