Features of 12V/24V Silicone Neon LED Strip

1. High-Density LED Design

With 120 LEDs/m, this silicone neon LED strip uses a closely spaced LED layout to create a continuous neon-style appearance. The high-density design reduces visible gaps between light points and supports consistent illumination for contour, decorative and linear lighting projects.

2. High Transparency and Brightness

The transparent silicone tube supports efficient light transmission and bright, clear illumination along the strip. It also helps limit color-temperature drift and side light leakage, giving the flexible neon LED strip a controlled and consistent lighting appearance.

3. Soft and Easy to Shape

The soft silicone construction allows the neon LED strip to bend along curves, corners and continuous lines without rigid lighting sections. It is easier to shape for contour lighting, decorative details, architectural edges and flexible linear lighting designs.

4. Durable Silicone Material

The silicone material offers anti-yellowing and high-temperature resistance to help maintain the tube appearance during use. With an IP65 rating, the strip can be considered for suitable semi-outdoor projects when connections and installation are properly protected.

12V/24V Silicone Neon LED Strip Dimensions(mm)

12V/24V Silicone Neon LED Strip Wiring Diagram & Installation Guide

How to Install a 12V/24V Silicone Neon LED Strip？

1. Measure and Cut the LED Strip
Measure the installation length before cutting the silicone neon LED strip. Cut the extra section only along the marked cutting line to help protect the LED circuit and maintain proper strip operation.

2. Solder the Power Wires
Identify the red wire as positive (+) and the black wire as negative (-). Solder the wires to the corresponding PCB terminals of the LED strip, making sure the connection is secure and correctly aligned.

3. Apply Glue and Install the End Cap
Apply a suitable amount of glue to the end of the silicone neon LED strip. Install the matching end cap in the direction shown by the arrow, ensuring that the strip end is properly covered and sealed.

4. Fix the Mounting Clips
Prepare the screws and mounting clips for the installation. Position the clips along the planned lighting path, adjust the spacing as required and use a screwdriver to secure each clip firmly to the mounting surface.

5. Insert the LED Strip into the Clips
Pick up the prepared silicone neon LED strip and align it with the fixed mounting clips. Press the strip into each clip carefully until it is held securely and follows the required contour or linear lighting path.

6. Connect the Power and Protect the Terminals
Connect the installed LED strip to the correct power output. After wiring, insulate the terminals and exposed ends, then apply suitable short-circuit and anti-corrosion protection to help maintain a safer and more reliable installation.

Usage Precautions for 12V/24V Silicone Neon LED Strip

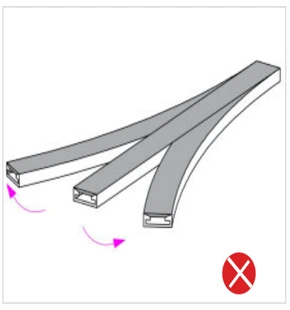

1. Do Not Bend the Strip Sideways
The silicone neon LED strip must not be bent in the lateral direction shown in the illustration. Only bend the strip along its designed bending(top bend) direction to avoid stress on the silicone tube, PCB and internal LED components.

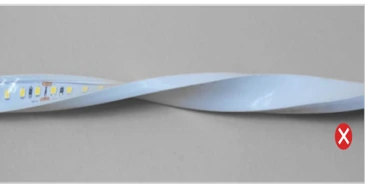

2. Do Not Twist the LED Strip
Do not twist, rotate or fold the flexible neon LED strip during installation. Twisting can place uneven stress on the LED circuit and silicone tube, which may affect the strip’s appearance, connection points and normal operation.

3. Do Not Wrap It Around Objects Smaller Than 50 mm
Do not wrap the silicone neon LED strip around objects with a diameter of less than 50 mm. Keep the bending diameter at 50 mm or more to provide sufficient installation space and help prevent excessive bending stress on the strip.

Recommended Applications for 12V/24V Silicone Neon LED Strip

1. Signage and Contour Lighting

This flexible silicone neon LED strip can be used for illuminated outlines, linear sign details and contour lighting. Its soft tube follows curved paths and corners, while the closely spaced LEDs help create a continuous light line for suitable signage and decorative structures.

2. Architectural Lighting

The strip suits selected architectural lighting details such as wall edges, ceiling lines, façade features and building contours. Its flexible silicone tube follows curved paths, while 12V and 24V options support different low-voltage lighting systems.

3. Decorative and Interior Lighting

Packaging & Shipping Information for 12V/24V Silicone Neon LED Strip

Item No.	Qty Per Roll（m）	Qty Per Carton(m)	Total Weight(KG)		Dimension of outer carton（mm）
					Length	Width	Height
BS-FNC2835A-X120 BS-FNC2835C-X120	100	20	15		520	300	220
Accessories					1M Tube with 2pcs Clips + 2pcs end cap The Tube Cover can choose transparent, frosted, anti-glare drawing line

Professional 12V/24V Silicone Neon LED Strip Manufacturer & Supplier

Founded in 2013, YESUN LED is a Shenzhen-based manufacturer specializing in LED signage and commercial lighting solutions. With 5,000㎡ of automated factory space, dedicated SMT lines, and strict full-process QC, we support OEM/ODM projects for customers in over 100 countries. To learn more about our team, factory, and production capabilities.

Product Certifications & Compliance

Our products comply with international standards including UL, ETL, CE, and RoHS certifications to support different market requirements.

12V/24V Silicone Neon LED Strip Quality Control Process

We apply strict quality inspection standards throughout production to ensure stable performance and reliable quality before shipment.
