Features of Waterproof Shutter LED Backlight Bar
1. IP67 Waterproof Structure for Outdoor Reliability
The YS-DF87315 Series features an IP67 waterproof construction combining an aluminum PCB, aluminum profile and silicone sealing structure. This design effectively protects the LEDs from moisture, dust and harsh outdoor environments while maintaining excellent thermal performance and long-term reliability.
2. Modular Waterproof Plug-in Connection
The waterproof plug-in connector system allows each LED bar to be quickly connected, removed or replaced without complicated wiring. The modular structure simplifies maintenance and shortens installation time for large outdoor advertising projects.
3. Roll Shutter Design for Fast Installation
Each roll contains 20 interconnected LED bars with 150 mm spacing, allowing installers to quickly deploy lighting systems inside standard light box cabinets while maintaining consistent spacing and appearance.
4. Multiple Mounting Options
The LED bars can be pre-fixed with adhesive for rapid installation or secured using screws at both ends for additional mechanical stability, providing greater flexibility for different signage structures.
Waterproof Shutter LED Backlight Bar Dimensions

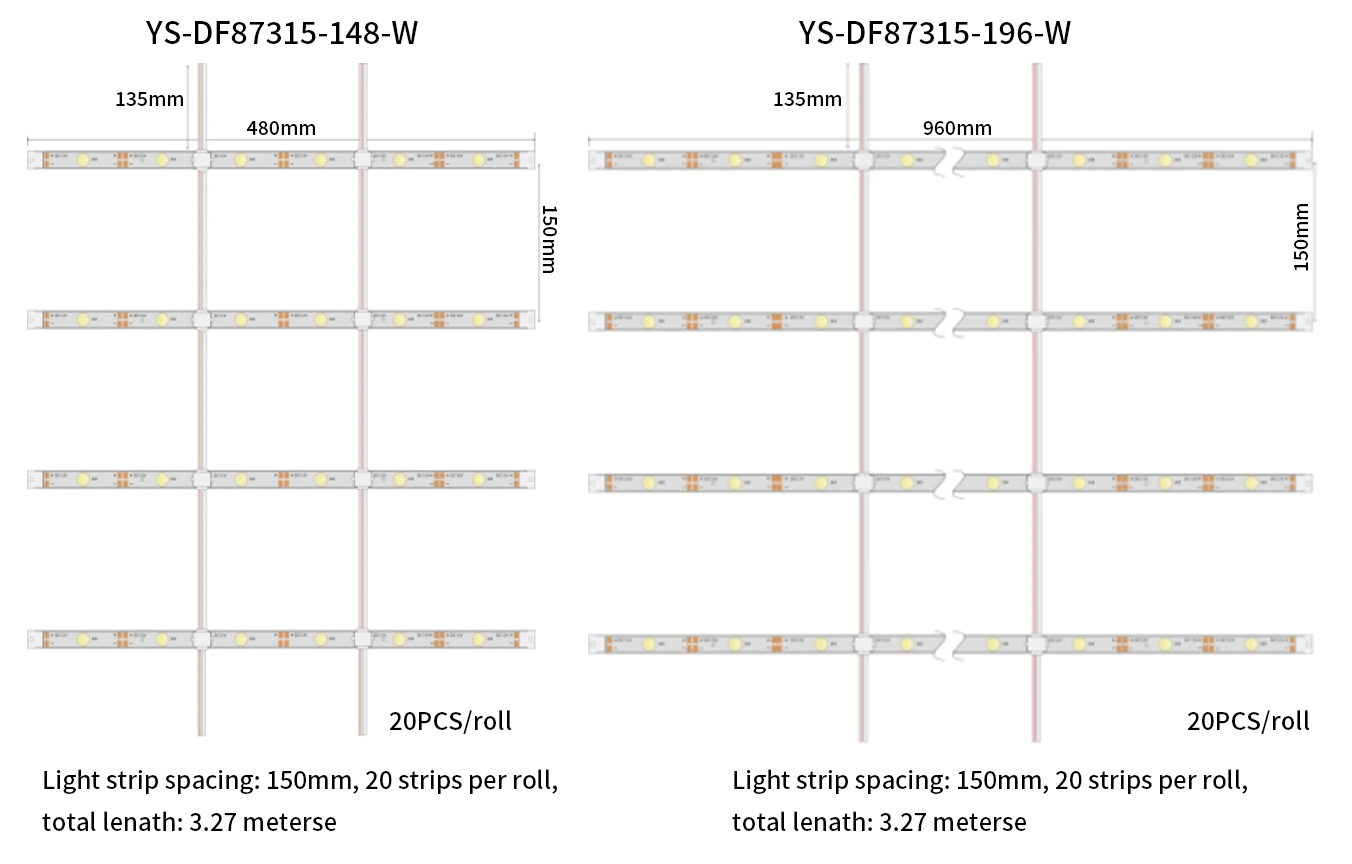

Dimensions of Whole Rolls
Note: These three sizes are for regular shipments
1.There are two types of terminal wire spacing: 100mm and 150mm.
2.The lengths of the light strips are 160mm, 480mm, and 960mm.
3.Other lengths need to be customized

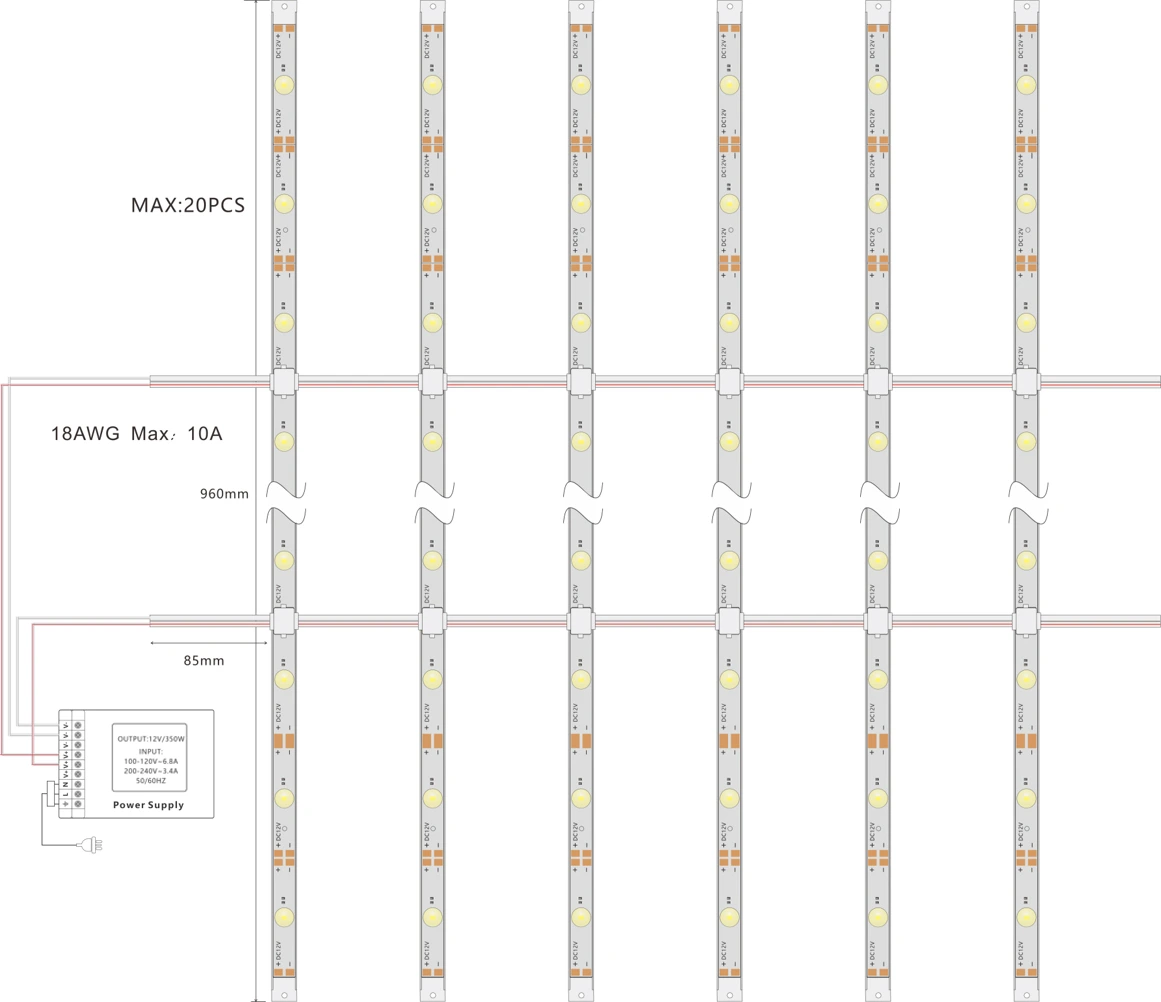

Waterproof Shutter LED Backlight Bar Wiring Diagram & Installation Guide
Recommended Applications for Waterproof Shutter LED Backlight Bar
1. Outdoor Advertising Light Boxes
Designed specifically for IP67 outdoor light boxes, the waterproof shutter LED bars deliver stable illumination under rain, humidity and changing weather conditions while maintaining consistent brightness.
2. Airport and Transportation Signage
Ideal for airports, subway stations, railway stations and bus terminals where illuminated advertising panels require high reliability and continuous operation in public environments.
3. Single-Sided Outdoor Light Boxes
4. OEM Outdoor Signage Manufacturing

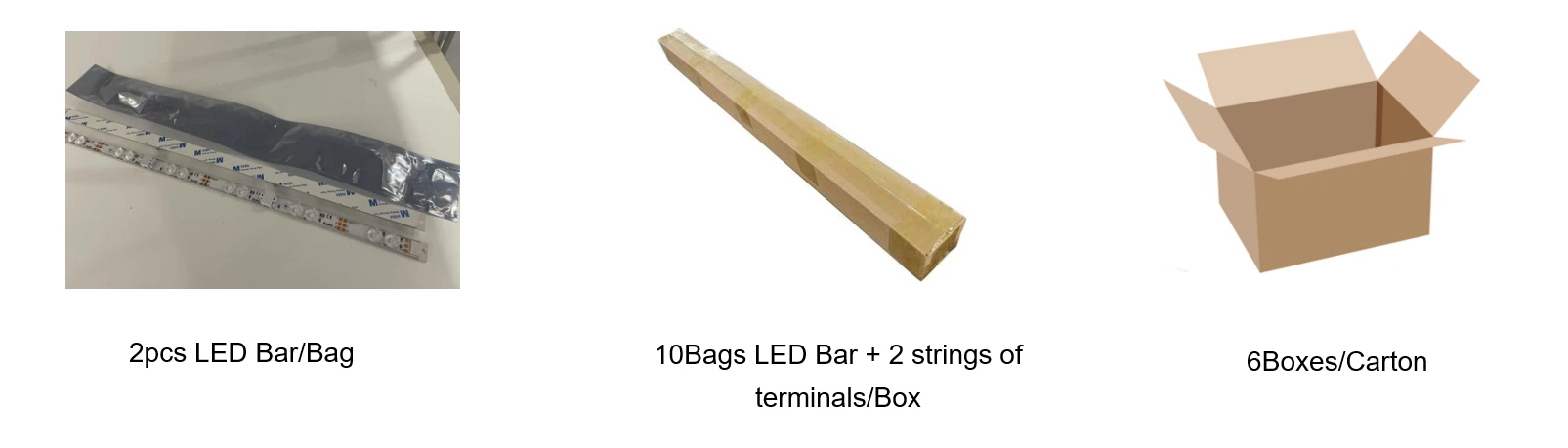

Packaging & Shipping Information for Waterproof Shutter LED Backlight Bar
| Product Code | Quantity per Roll（PCS） | Quantity per Carton (Bags) | Total Quantity（PCS） | Total Weight（Kg） | Outer Carton Dimensions（mm） | ||
| L | W | H | |||||
| YS-DF87310-148-W | 20 |
6 |
120 |
7.2 | 540 | 260 | 180 |
| YS-DF87310-196-W | 20 |
6 |
120 |
12.2 | 1020 | 260 | 180 |
Professional Waterproof Shutter LED Backlight Bar Manufacturer & Supplier
