Product

Module NO. YS-DF87315-148-W / YS-DF87315-196-W

• LED Type: SMD 2835

• LED Quantity: 6LEDs or 12LEDs

• Bar to Bar Center Distance: 150mm

• Viewing Angle(°): 175°

• Colors available: Warm White / Neutral White / Pure White / Cold White

• Adopt plug-in waterproof terminal design, which can be plugged in forward or reverse / detachable to replace waterproof LED Bar

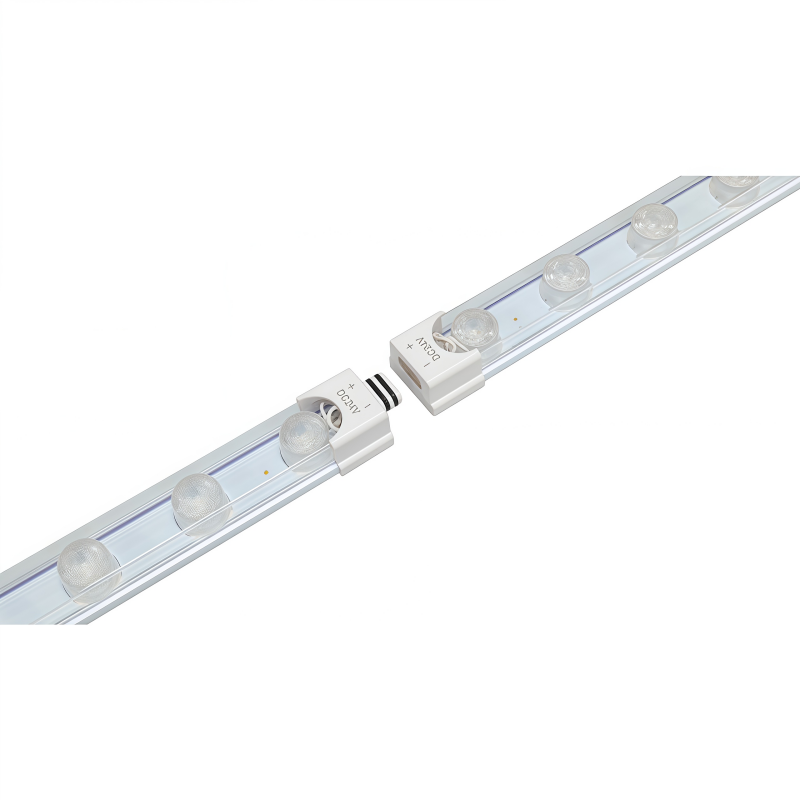

Module NO. YS-ZC22835D-W09T/YS-ZC23030D-W09T

• Power (W/PCS): 12W or 18W

• LED Type: SMD 2835 or SMD3030

• LED Quantity: 9LEDs

• Viewing Angle(°): 15*55°

• Colors available: Warm White / Pure White / Cold White / Neutral White

• Adopting constant current design, the brightness is consistent from beginning to end

Module NO. YS-ML805-118/YS-ML816-118

• LED Type: SMD 2835

• Power (W/PCS): 26W

• IP rate: IP20 or IP65

• LED Quantity: 18LEDs

• Voltage: DC 12V

• Colors available: Warm White / Pure White / Cold White / Red / Green / Blue

Module NO. YS-ZC13535D-W09T

• LED Type: SMD 3535(Samsung)

• Power (W/PCS): 27W

• LED Quantity: 9LEDs

• Viewing Angle(°): 8*12°

• Colors available: Warm White / Pure White / Neutral White

• Adopt constant current design, wide voltage DC12-24V input, and consistent brightness from beginning to end

Module NO. YS-DF90 118-196-RGBW / YS-FD9A 505-950-RGBW

• LED Type: SMD 5050

• LED Quantity: 18 LEDs

• Bar to Bar Center Distance: 53mm

• Viewing Angle(°): 160°

• Colors available: RGBW

• Each 3LED can be cut, and plug-in connectors between the boards, easy to use light boxes of various sizes

• Module NO. YS-DF90 324-196-TW

• LED Quantity: 12 LEDs*2

• LED type: SMD2835

• Bar to Bar Center Distance: 80mm

• Viewing Angle(°): 175°

• Colors available: CCT(2700-6500K)

• Each 2LED can be cut, and plug-in connectors between the boards, easy to use light boxes of various sizes

Module NO. YS-DF87315-148-TW/YS-DF87315-196-TW

• LED Type: SMD 2835

• LED Quantity: 6*2LEDs or 12*2LEDs

• Bar to Bar Center Distance: 150mm

• Viewing Angle(°): 175°

• Colors available: CCT Tunable White

• Using aluminum substrate + profile + silicone waterproof structure, the product has good heat dissipation and waterproof effect

Module NO. YS-RDF952835A-TW024T

• LED Type: SMD 2835

• LED Quantity: 24LEDs

• Voltage: DC 12V / DC 24V

• Viewing Angle(°): 175°

• Colors available: CCT Tunable White

• The design features a solderless plug-in terminal connection with reverse connection protection, making installation and wiring more convenient

• Module NO. YS-DF50 or YS-DF60

• LED Quantity: 6 LEDs or 12 LEDs

• LED type: SMD2835

• Bar to Bar Center Distance: 100mm or 150mm

• Viewing Angle(°): 175°

• Colors available: Warm White / Neutral White / Pure White / Cold White

• Can adopt super-large 14AWG main line, single main line can connect to 240W (DC12V)
