Key Features of S Shape 2835 LED Strip Lights

1. 60LEDs/m for a Clean and Balanced Light Effect

With 60 LEDs per meter, the strip gives a steady and balanced light output. It is bright enough for sign applications, but still keeps the look neat and simple, which is useful when the goal is a clear light line instead of a heavy, crowded effect.

2. 3 LEDs Cuttable for Flexible Sign Making

The strip is cuttable every 3 LEDs, so it gives you more flexibility when making letters, logos or small sign sections. This is very helpful when you need the strip to match a specific shape without wasting extra material.

3. 6mm Slim Width with Strong 3M Adhesive

The strip has a 6mm slim width, so it fits well into narrow sign bodies and compact mounting spaces. It also uses 3M adhesive, which helps the strip stay firmly in place during installation and makes the setup easier.

4. S Shape PCB for Curved Letter and Sign Projects

This strip uses an S shape bendable PCB, which makes it much easier to follow curves, letter outlines and shaped sign layouts. If the project is not a straight line and needs a strip that can move with the design, this shape is exactly what helps it work better.

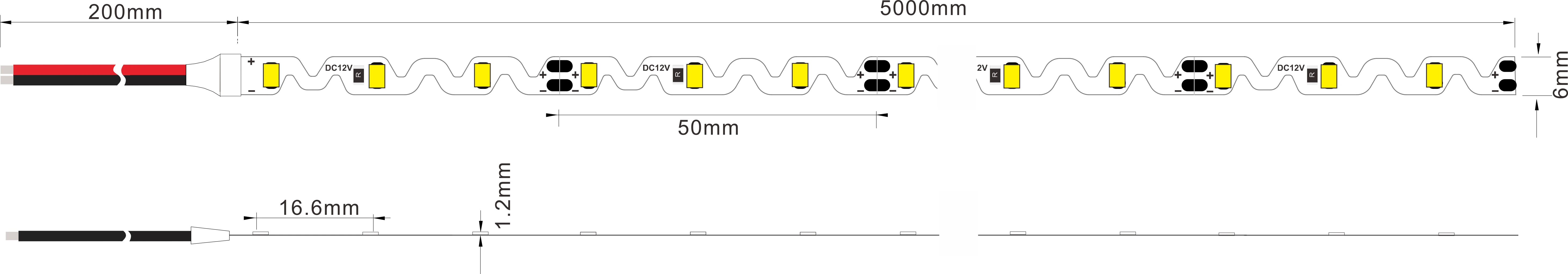

S Shape 2835 LED Strip Lights Dimensions

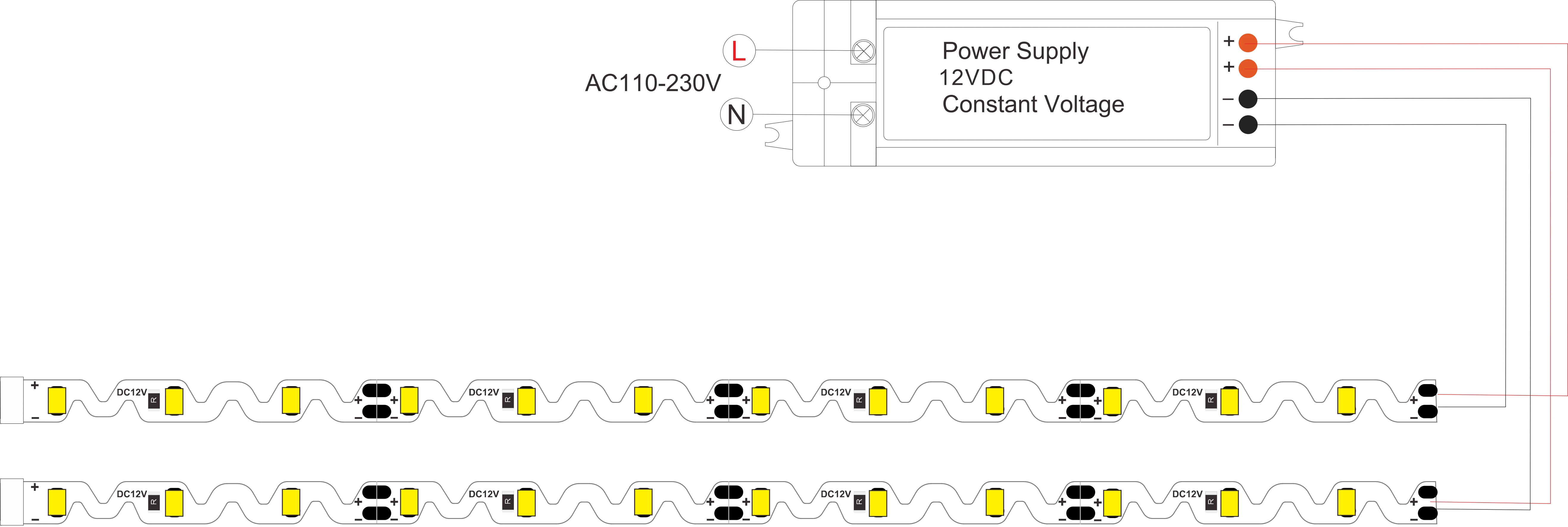

S Shape 2835 LED Strip Lights Wiring Diagram & Installation Guide



Which S Shape SMD2835 LED Strip Light Is Best For Your Sign Project?

Model Number	LEDs per Meter	Cuttable Unit	Minimum Cut Length	Power per Meter	Luminous Flux (4000K)	Best For & Application Suggestion
YS-RS2835X60 （This item）	60 LEDS	3 LEDS	50 mm	7.2 W	660 lm/m	Long-term commercial projects & high-reliability needs. Ideal for permanent resin channel letters, storefront mini illuminated letters, and professional sign installations where durability and consistent brightness matter most.
YS-FS322835A-X060	60 LEDS	3 LEDS	50 mm	5 W	500 lm/m	Budget-friendly basic lettering projects. Perfect for small resin letters, indoor wall signs, temporary promotional displays, and home DIY decor where cost is the primary consideration.
YS-FS122835A-X060	60 LEDS	1 LED	16.6 mm	6 W	600 lm/m	Precision-cutting small and intricate designs. Best for tiny mini letters, fine resin lettering with sharp curves, and detailed logo signs where every millimeter of flexibility and seamless lighting counts.

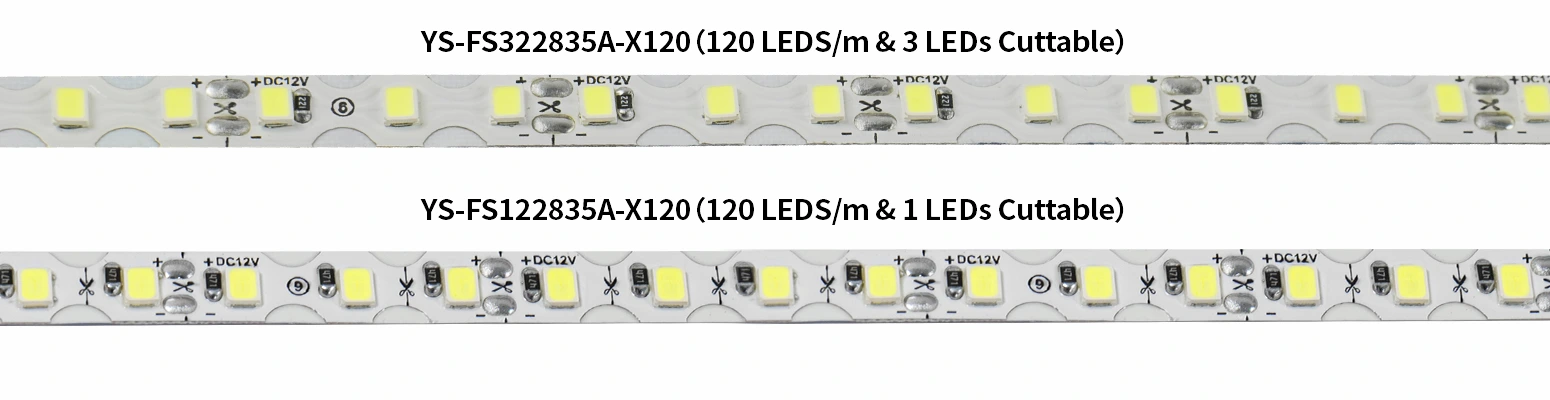

YS-FS322835A-X120	120 LEDS	3 LEDS	25 mm	8 W	800 lm/m	Bright medium-density neon lighting. Great for eye-catching store signs, window displays, and accent lighting that needs more brightness than 60LED/m strips.
YS-FS122835A-X120	120 LEDS	1 LED	8.33 mm	10 W	1000 lm/m	Professional-grade bright neon signs. The top choice for seamless, dot-free neon effects, large-format signage, and high-visibility commercial displays requiring maximum brightness and precision.

Click left & right product images below to view respective full item details.





Click here to request a free quote of YS-RS2835W60 LED strip lights

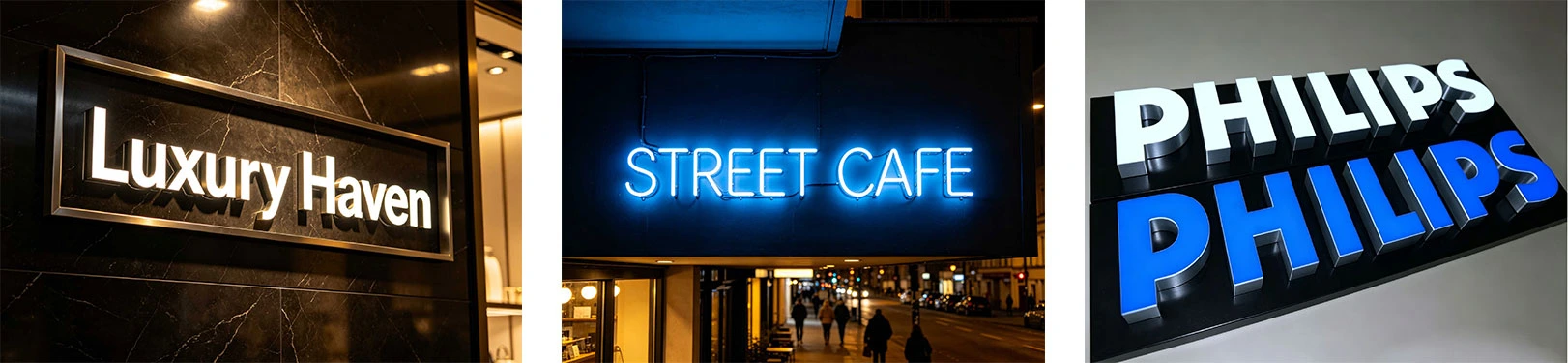

Recommended Applications for S Shape 2835 LED Strip Lights

1. Resin Luminous Letters

This strip is a very good fit for resin luminous letters because the S shape board can follow the letter layout more naturally. It helps create a clean and neat lighting effect inside shaped letters.

2. Channel Letters

It also works well for channel letters, especially when the letter design has curves or tighter sections. The bendable PCB and 3-LED cutting unit make it easier to match the shape of the sign.

3. Small Sign Letters and Logo Outlines

If the project uses small letters or logo outlines, this strip is a practical option. It can be cut and mounted more precisely, so the final result looks tidy and balanced.



Waterproof & IP Protection Options for S Shape 2835 LED Strip Lights

Description	Unprotected bare board	Flat Glue Series	Spray Glue Series	PU Glue Series	Silicone Tube Series	silicone extrusion Series
IP Rate	IP20	IP65	IP65	IP65	IP65	IP68
Lumen Output Rate	100%	98%	98%	98%	95%	90%

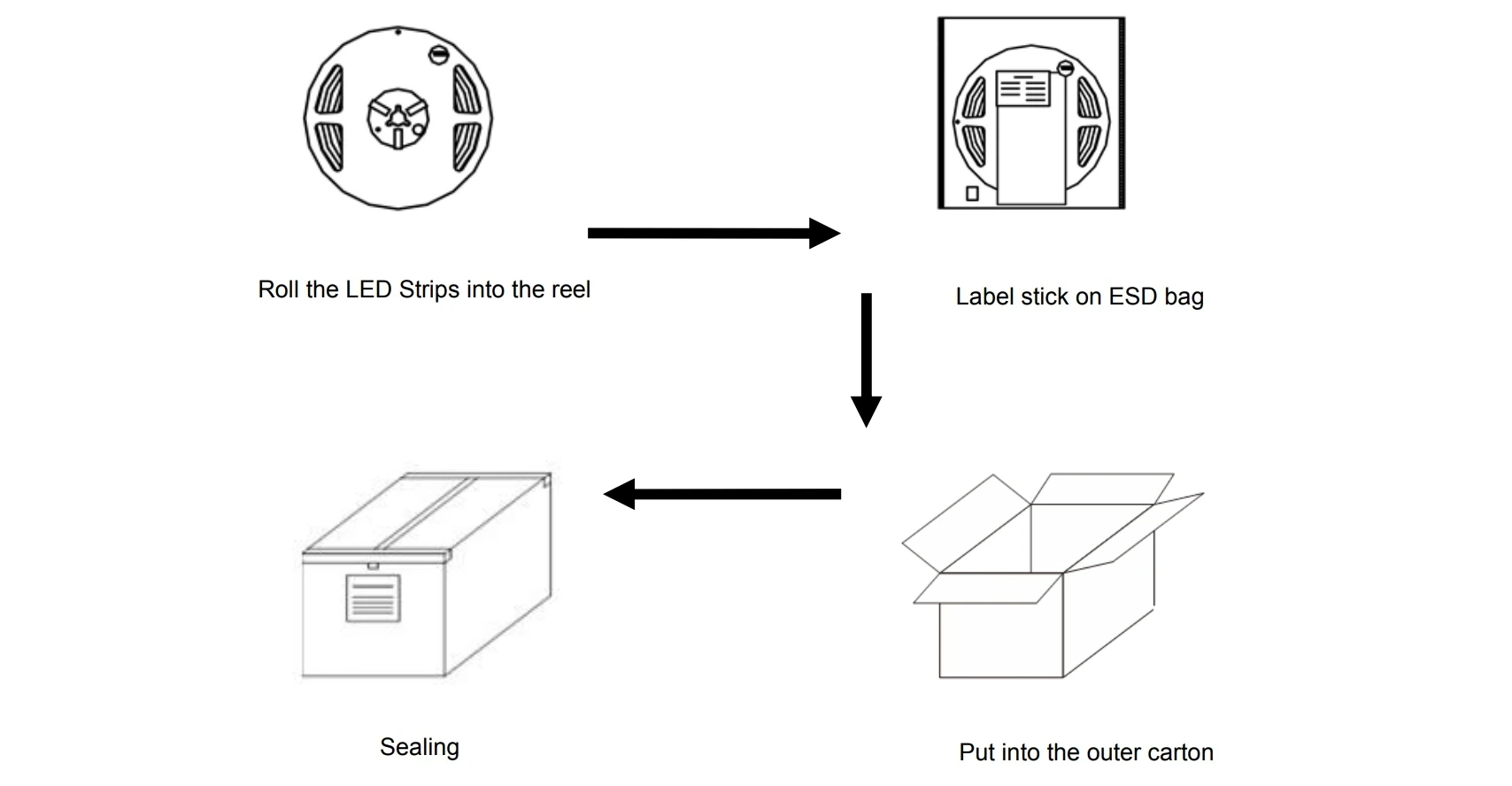

Packaging & Shipping Information for S Shape 2835 LED Strip Lights

Item No.	Qty per Rolls(m)	Qty per Carton(m)	Total Weight(kg)	Dimension of outer carton（mm)
				Length	Width	Height
YS-RS2835W60	5	70	5.5	520	300	220



Professional S Shape 2835 LED Strip Lights Manufacturer & Supplier

Founded in 2013, YESUN LED is a Shenzhen-based manufacturer specializing in LED signage and commercial lighting solutions. With 5,000㎡ of automated factory space, dedicated SMT lines, and strict full-process QC, we support OEM/ODM projects for customers in over 100 countries. To learn more about our team, factory, and production capabilities, please visit our About Us page.



Product Certifications & Compliance

Our products comply with international standards including UL, ETL, CE, and RoHS certifications to support different market requirements.
For complete certification files and downloadable documents, please visit our Certificates Download Center.

S Shape 2835 LED Strip Lights Quality Control Process

We apply strict quality inspection standards throughout production to ensure stable performance and reliable quality before shipment.
