Products

YS-WP-12500 / YS-WP-24500 500W IP67 Waterproof 12V/24V LED Power Supply
5.0
YS-WP-12500 / YS-WP-24500 500W IP67 Waterproof 12V/24V LED Power Supply

Module NO. YS-WP-12500 / YS-WP-24500

• Dimension: 260*92*37cm

• Max Power: 500W

• Input Voltage: 175-264V / 100-130V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.6

• Efficiency: 91%

• Output Current: Max 41.7A / Max 20.8A

• IP Rate: IP67

• Warranty: 5 Years

YS-WP-12400 / YS-WP-24400 400W 12V/24V LED Power Supply
5.0
YS-WP-12400 / YS-WP-24400 400W 12V/24V LED Power Supply

Module NO. YS-WP-12400 / YS-WP-24400

• Dimension: 260*102*37mm

• Max Power: 400W

• Input Voltage: 175-264V / 100-130V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.6

• Efficiency: 91%

• Output Current: Max 33.4A / Max 16.7A

• IP Rate: IP67

• Warranty: 5 Years

YS-WP-12300 / YS-WP-24300 300W IP67 Waterproof LED Power Supply
5.0
YS-WP-12300 / YS-WP-24300 300W IP67 Waterproof LED Power Supply

Module NO. YS-WP-12300 / YS-WP-24300

• Dimension: 228*72*32mm

• Max Power: 300W

• Input Voltage: 175-264V / 100-130V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.6

• Efficiency: 89%

• Output Current: Max 25A / Max 12.5A

• IP Rate: IP67

• Warranty: 5 Years

YS-WP-12200 / YS-WP-24200 200W 12V & 24V Waterproof LED Power Supply
5.0
YS-WP-12200 / YS-WP-24200 200W 12V & 24V Waterproof LED Power Supply

Module NO. YS-WP-12200 / YS-WP-24200

• Dimension: 238*58*32mm

• Max Power: 200W

• Input Voltage: 175-264V / 100-130V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.6

• Efficiency: 89%

• Output Current: Max 16.7A / Max 8.5A

• IP Rate: IP67

• Warranty: 5 Years

YS-WP-12150 / YS-WP-24150 150W Waterproof 24V LED Power Supply
5.0
YS-WP-12150 / YS-WP-24150 150W Waterproof 24V LED Power Supply

Module NO. YS-WP-12150 / YS-WP-24150

• Dimension: 208*58*32mm

• Max Power: 150W

• Input Voltage: 175-264V / 100-130V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.6

• Efficiency: 90%

• Output Current: Max 12.5A / Max 6.3A

• IP Rate: IP67

• Warranty: 5 Years

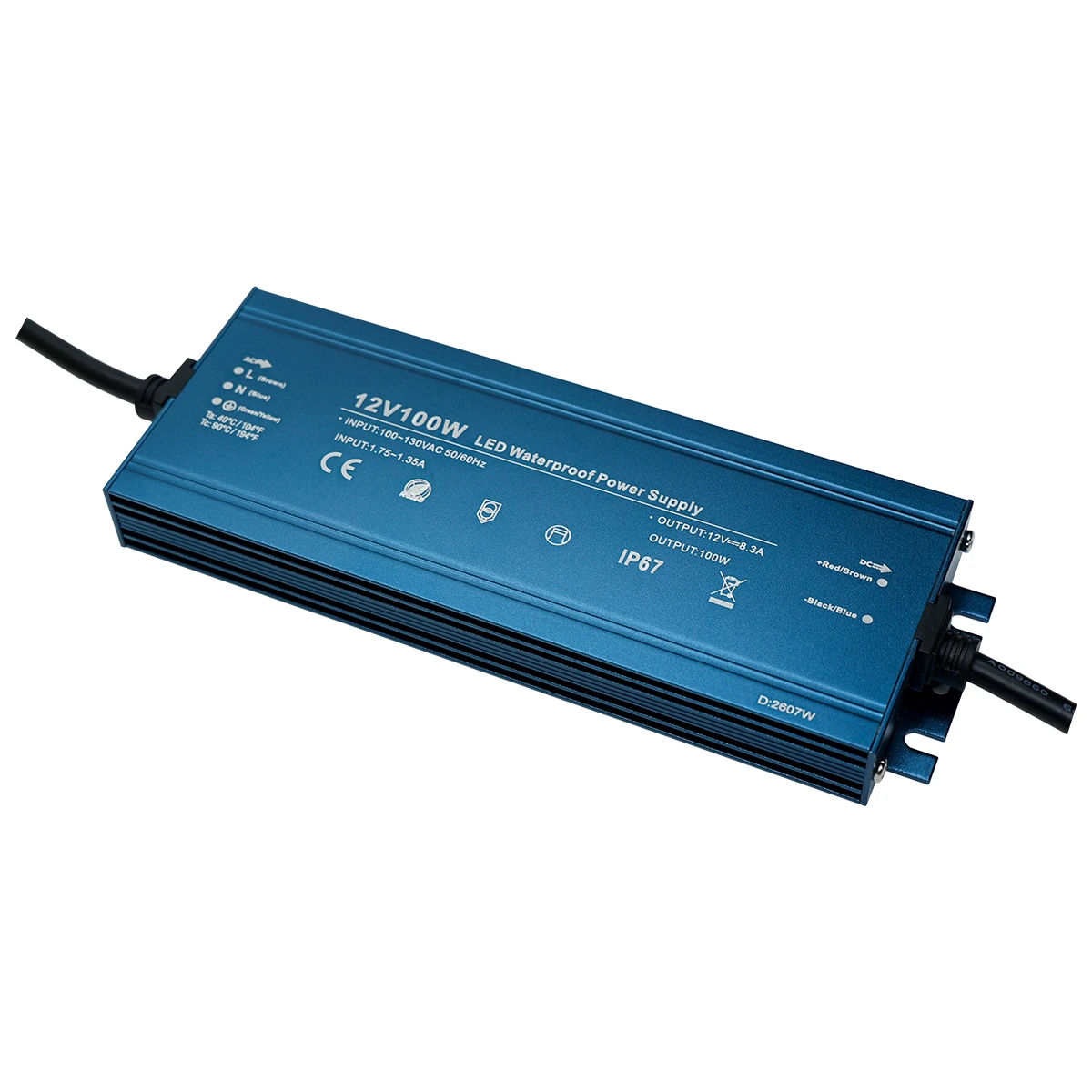

YS-WP-12100 / YS-WP-24100 100W 12V/24V Waterproof LED Power Supply
5.0
YS-WP-12100 / YS-WP-24100 100W 12V/24V Waterproof LED Power Supply

Module NO. YS-WP-12100 / YS-WP-24100

• Dimension: 170*52*35mm

• Max Power: 100W

• Input Voltage: 100-264V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.6

• Efficiency: 86%

• Output Current: Max 8.5A / Max 4.2A

• IP Rate: IP67

• Warranty: 5 Years

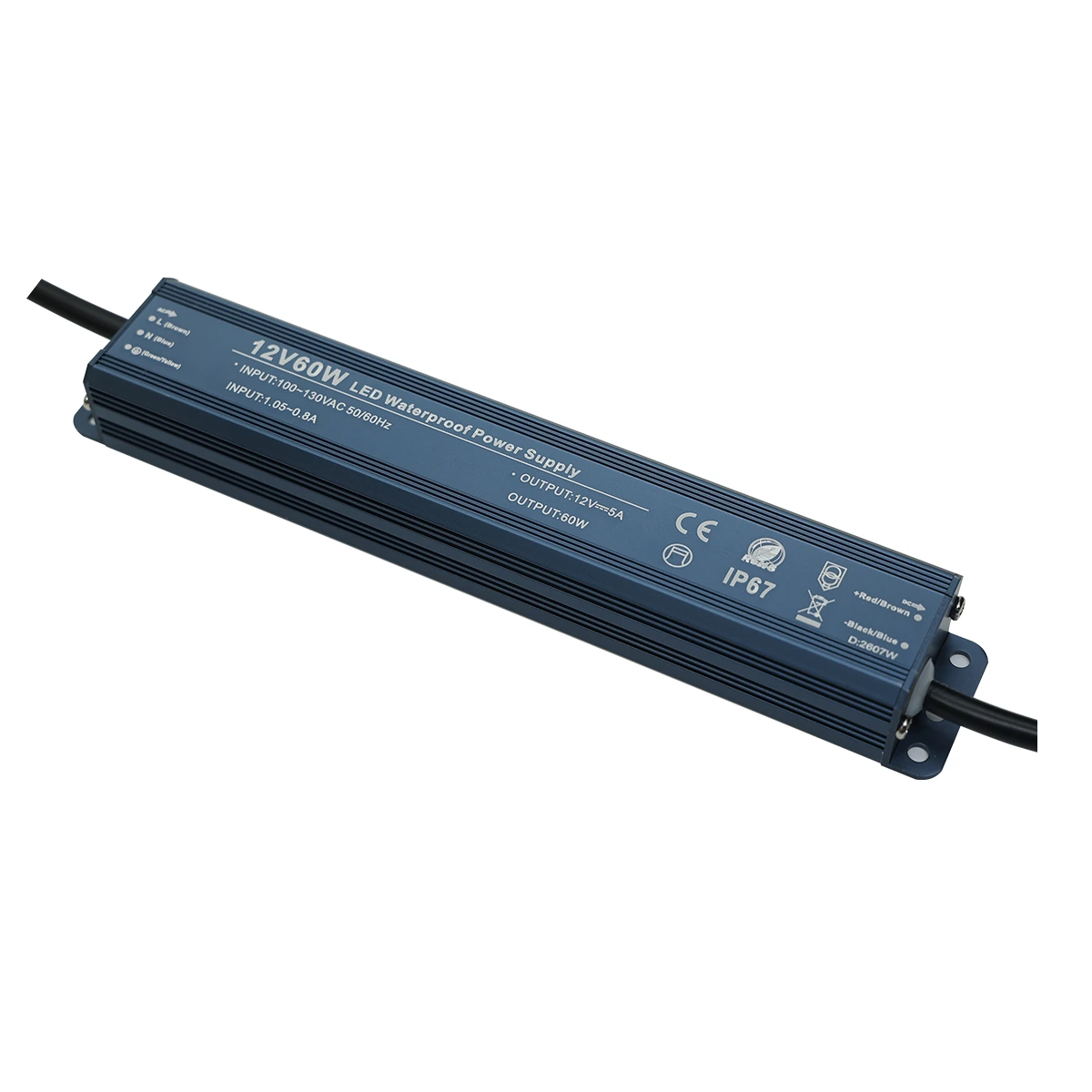

YS-WP-12060 / YS-WP-24060 60W 24V IP67 Waterproof LED Power Supply
5.0
YS-WP-12060 / YS-WP-24060 60W 24V IP67 Waterproof LED Power Supply

Module NO. YS-WP-12060 / YS-WP-24060

• Dimension: 192*35*24mm

• Max Power: 60W

• Input Voltage: 100-264V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.6

• Efficiency: 84%

• Output Current: Max 5A / Max 2.5A

• IP Rate: IP67

• Warranty: 5 Years

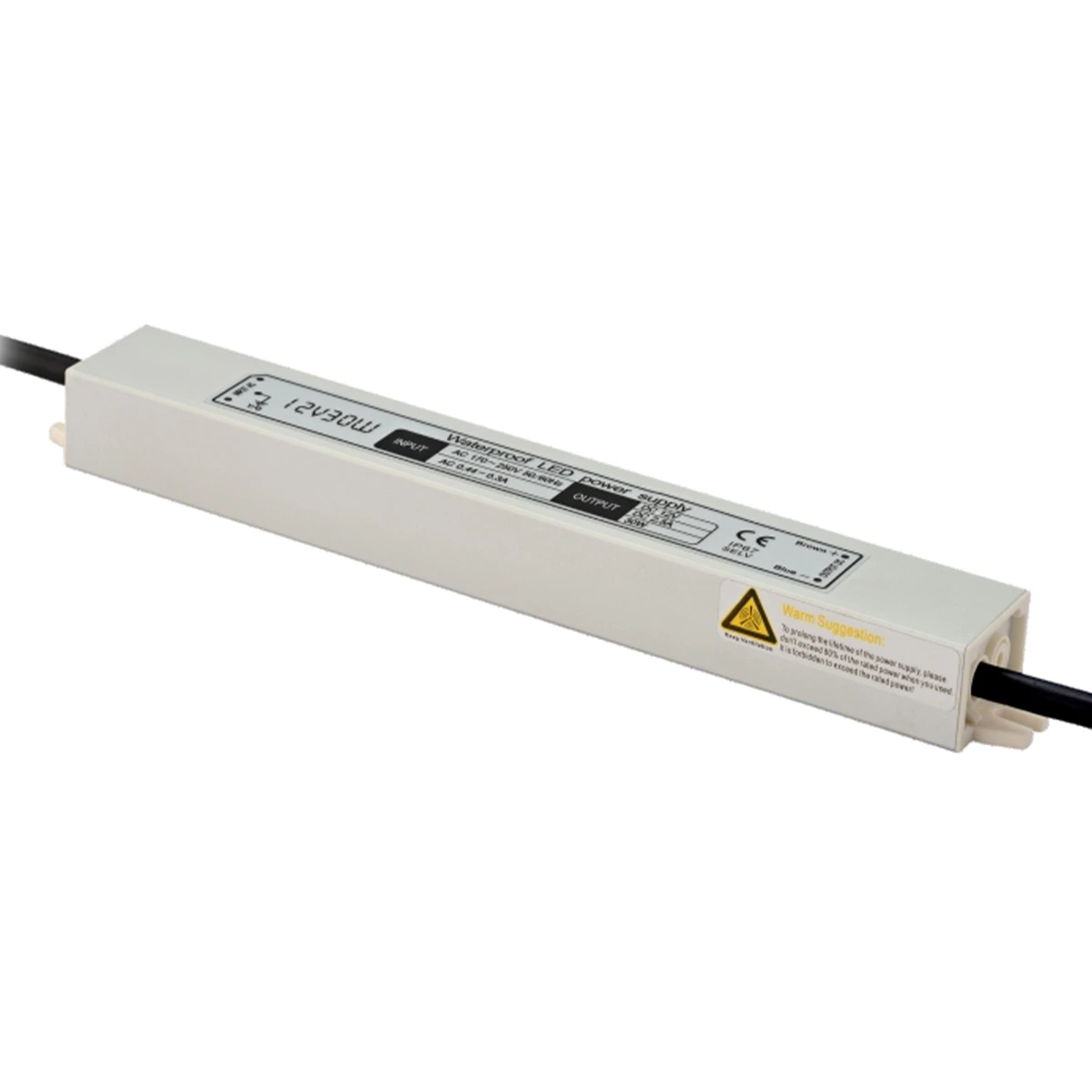

YS-WP-12030 / YS-WP-24030 12V 30W Waterproof LED Power Supply
5.0
YS-WP-12030 / YS-WP-24030 12V 30W Waterproof LED Power Supply

Module NO. YS-WP-12030 / YS-WP-24030

• Dimension: 220*30*20mm

• Max Power: 30W

• Input Voltage: 100-264V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.6

• Efficiency: 83%

• Output Current: Max 2.5A / Max 1.25A

• IP Rate: IP67

• Warranty: 5 Years
