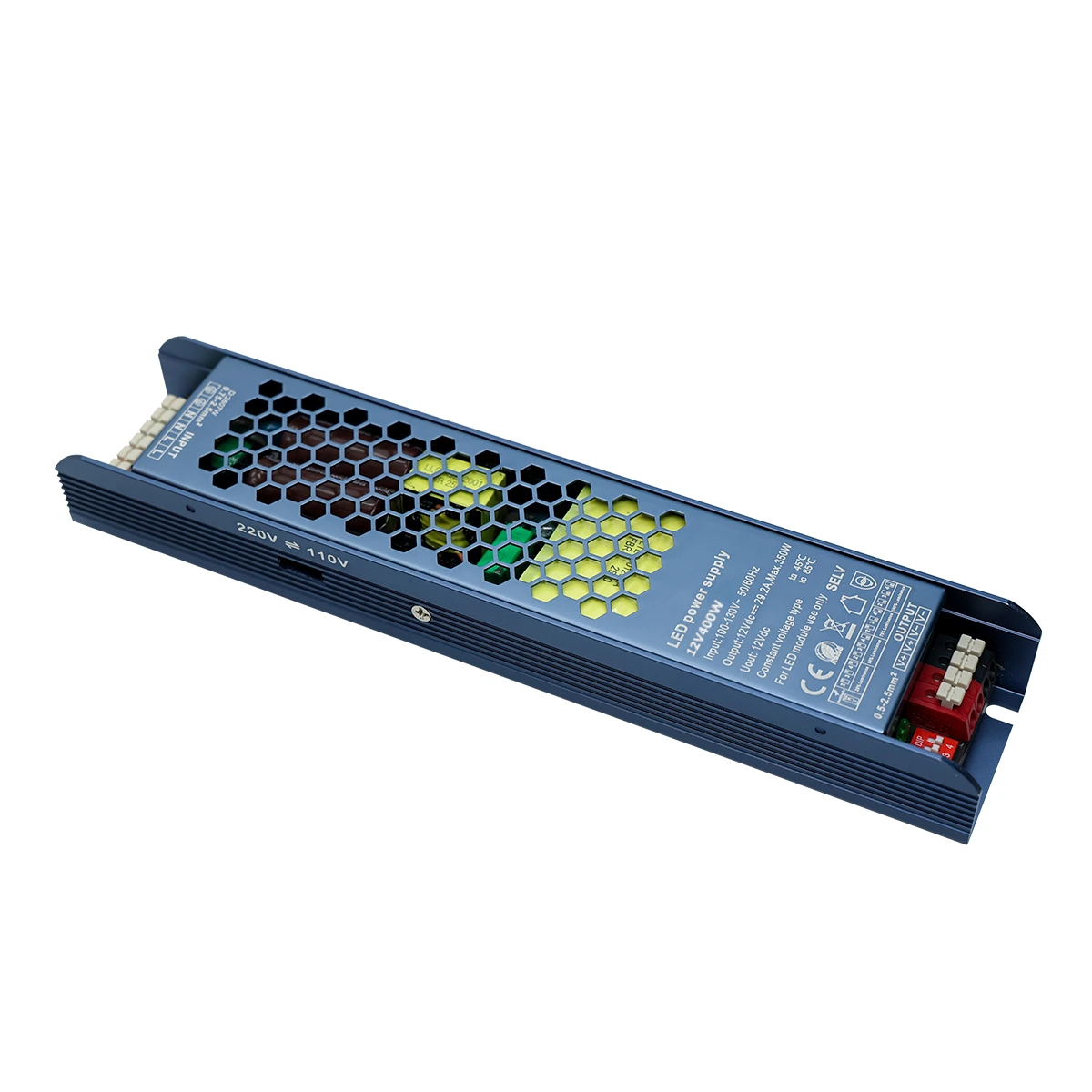

YS-N-12400 / YS-N-24400 400W 12V LED Power Supply
5.0
YS-N-12400 / YS-N-24400 400W 12V LED Power Supply

Module NO. YS-N-12400 / YS-N-24400

• Dimension: 236*49*29mm

• Max Power: 400W

• Input Voltage: 200-240V or 110-130V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.55

• Efficiency: 92%

• Output Current: Max 33.4A / Max 16.7A

• IP Rate: IP20

• Warranty: 5 Years

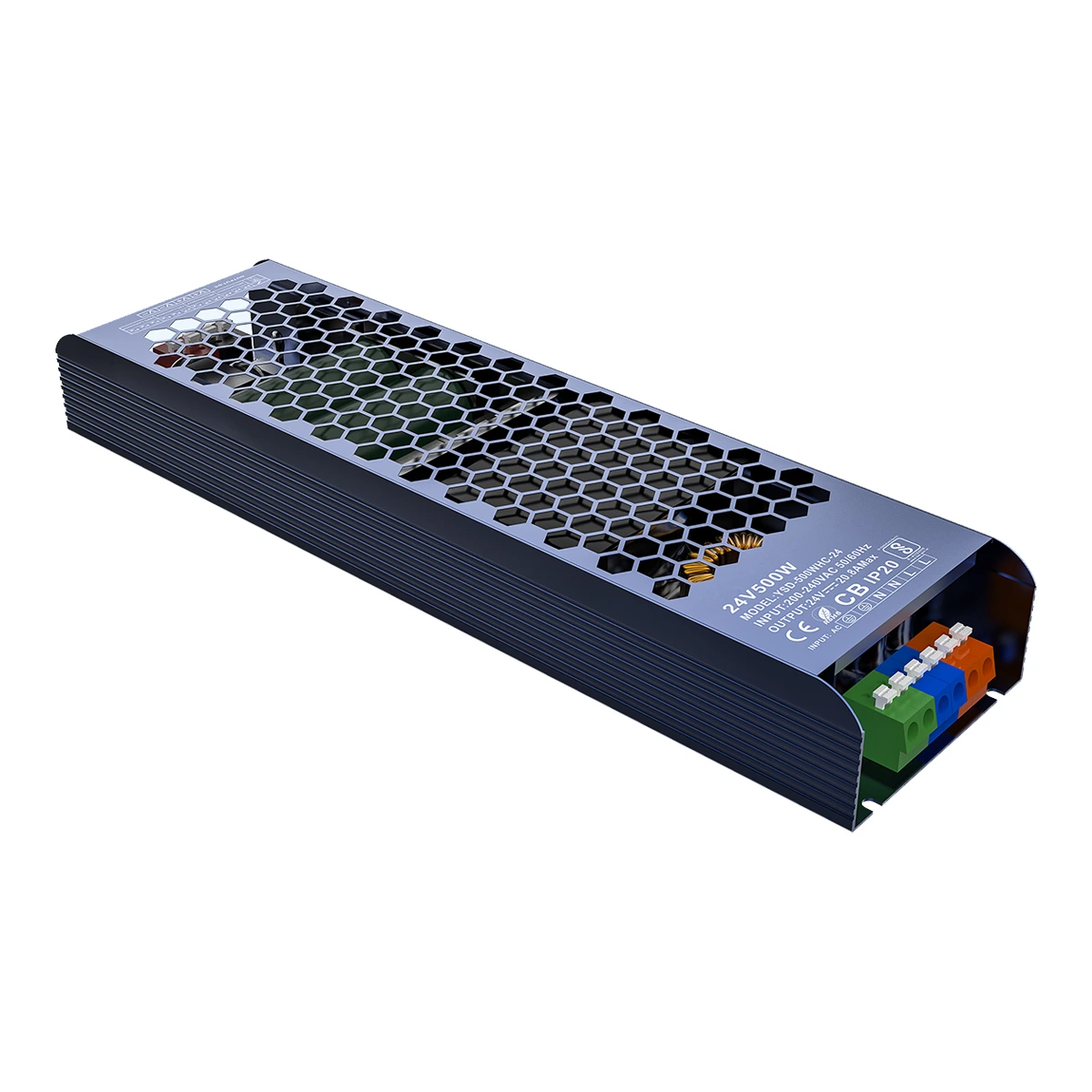

YS-N-12500 / YS-N-24500 500W 24V LED Power Supply for LED Modules
5.0
YS-N-12500 / YS-N-24500 500W 24V LED Power Supply for LED Modules

Module NO. YS-N-12500 / YS-N-24500

• Dimension: 220*62*31mm

• Max Power: 500W

• Input Voltage: 200-240V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.55

• Efficiency: 94%

• Output Current: Max 41.6A / Max 20.8A

• IP Rate: IP20

• Warranty: 5 Years

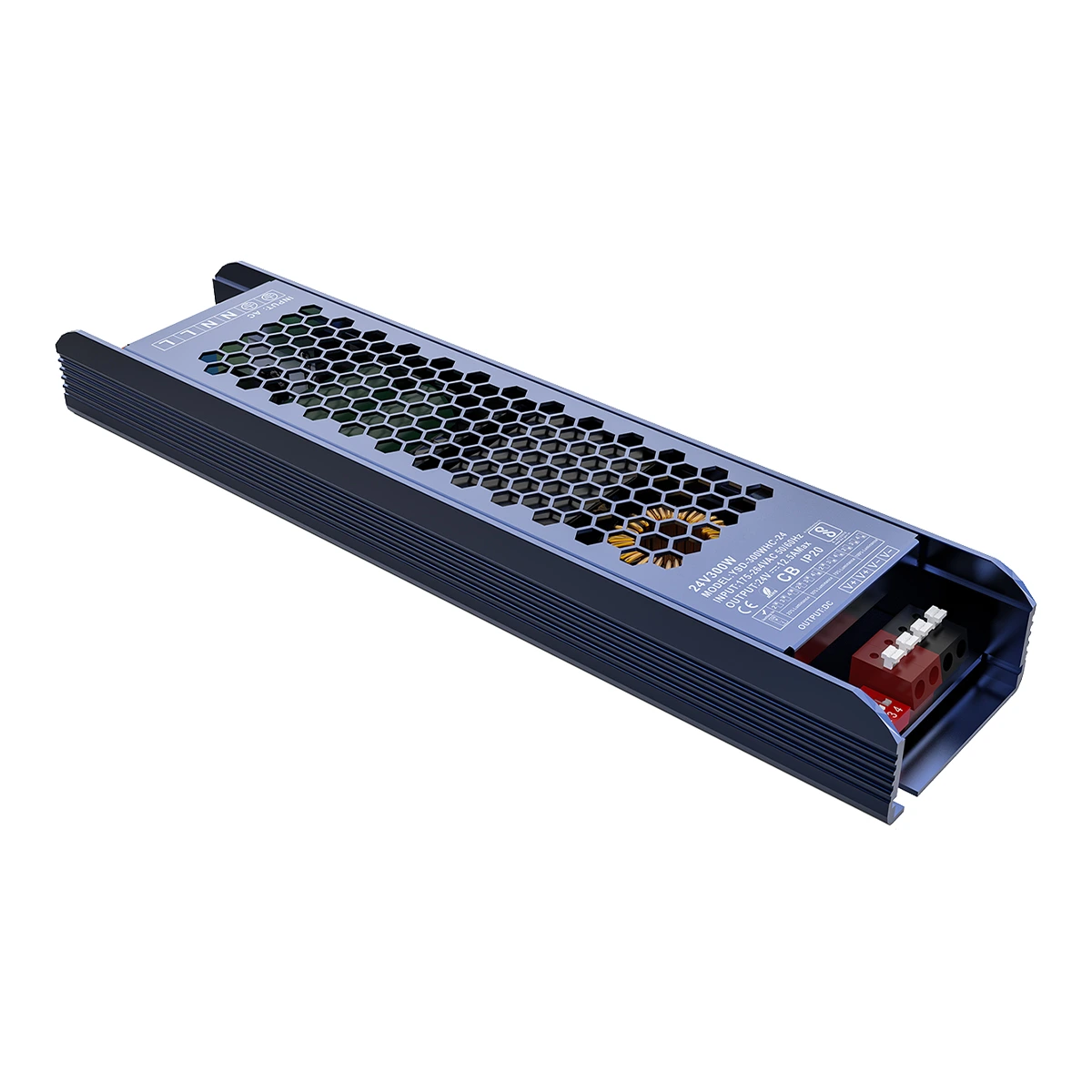

YS-N-12300 / YS-N-24300 12V/24V 300W Slim LED Power Supply
5.0
YS-N-12300 / YS-N-24300 12V/24V 300W Slim LED Power Supply

Module NO. YS-N-12300 / YS-N-24300

• Dimension: 236*49*29mm

• Max Power: 300W

• Input Voltage: 200-240V or 110-130V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.55

• Efficiency: 92%

• Output Current: Max 25A / Max 12.5A

• IP Rate: IP20

• Warranty: 5 Years

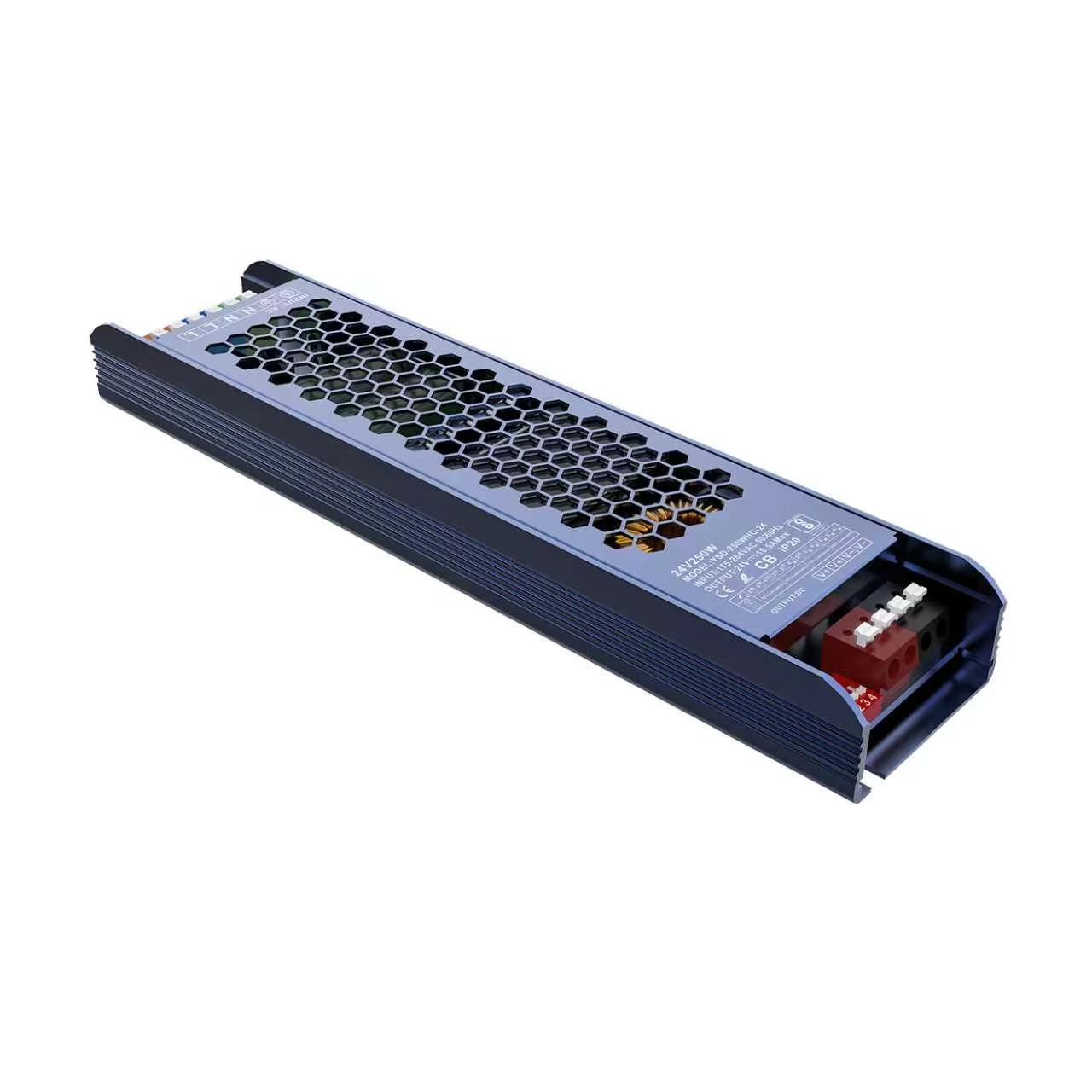

YS-N-12250 / YS-N-24250 250W 12V LED Power Supply
5.0
YS-N-12250 / YS-N-24250 250W 12V LED Power Supply

Module NO. YS-N-12250 / YS-N-24250

• Dimension: 236*49*29mm

• Max Power: 250W

• Input Voltage: 175-264V or 100-130V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.55

• Efficiency: 87%

• Output Current: Max 21A / Max 10.5A

• IP Rate: IP20

• Warranty: 5 Years

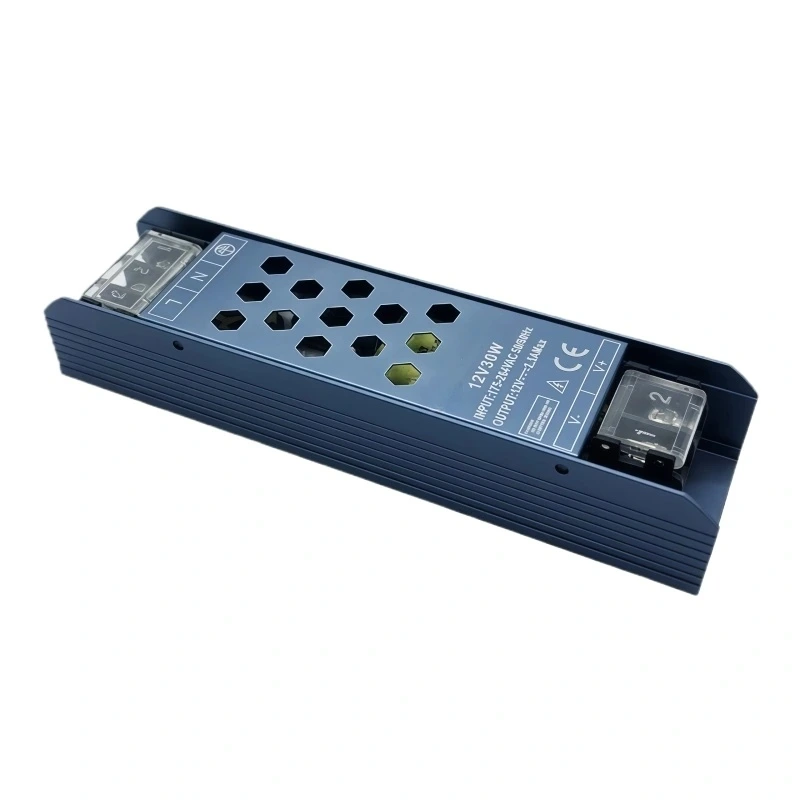

YS-N-12030 24V 30W Non-Waterproof LED Power Supply
5.0
YS-N-12030 24V 30W Non-Waterproof LED Power Supply

Module NO. YS-N-12030 / YS-N-24030

• Dimension: 135*35*23mm

• Max Power: 30W

• Input Voltage: 100-264V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.55

• Efficiency: 84%

• Output Current: Max 2.5A

• IP Rate: IP20

• Warranty: 5 Years

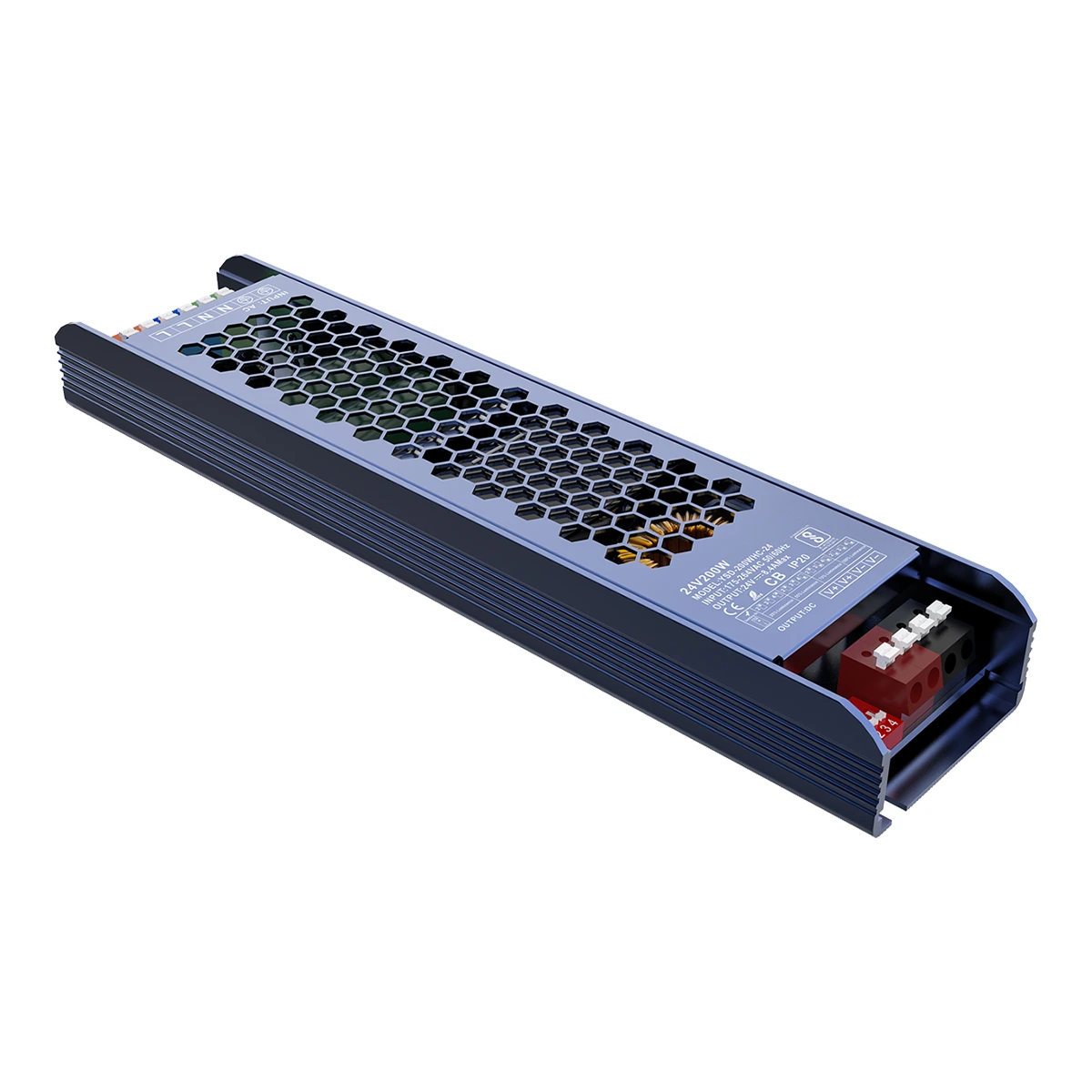

YS-N-12200 / YS-N-24200 200W Slim 24V LED Power Supply
5.0
YS-N-12200 / YS-N-24200 200W Slim 24V LED Power Supply

Module NO. YS-N-12200 / YS-N-24200

• Dimension: 215*48*24mm

• Max Power: 200W

• Input Voltage: 200-240V or 110-130V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.55

• Efficiency: 90%

• Output Current: Max 16.66A / Max 8.33A

• IP Rate: IP20

• Warranty: 5 Years

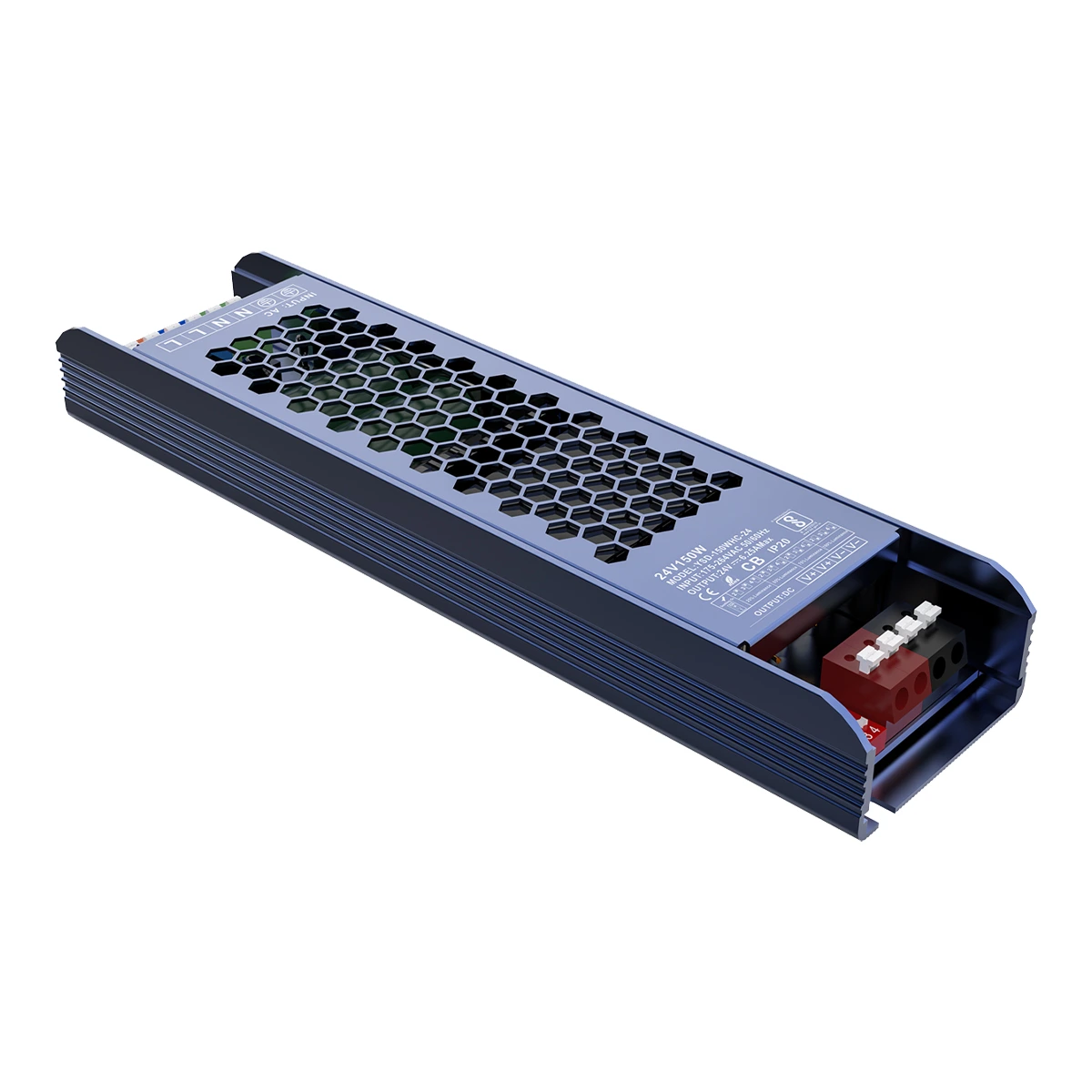

YS-N-12150 / YS-N-24150 150W 12V/24V LED Power Supply
5.0
YS-N-12150 / YS-N-24150 150W 12V/24V LED Power Supply

Module NO. YS-N-12150 / YS-N-24150

• Dimension: 195*48*24mm

• Max Power: 150W

• Input Voltage: 175-264V or 100-130V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.55

• Efficiency: 87%

• Output Current: Max 12.5A / Max 6.25A

• IP Rate: IP20

• Warranty: 5 Years

YS-N-12100/YS-N-24100 100W 12V Constant Voltage LED Driver
5.0
YS-N-12100/YS-N-24100 100W 12V Constant Voltage LED Driver

Module NO. YS-N-12100 / YS-N-24100

• Dimension: 145*48*24mm

• Max Power: 100W

• Input Voltage: 175-264V or 100-130V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.55

• Efficiency: 87%

• Output Current: Max 8.5A / Max 4.2A

• IP Rate: IP20

• Warranty: 5 Years

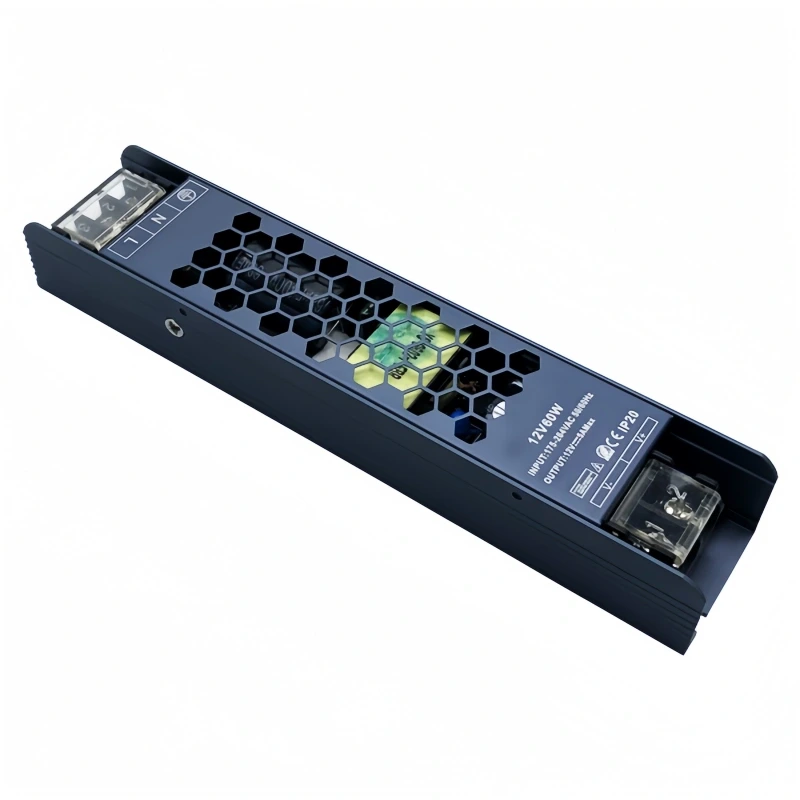

YS-N-12060 / YS-N-24060 60W 12V LED Power Supply
5.0
YS-N-12060 / YS-N-24060 60W 12V LED Power Supply

Module NO. YS-N-12060 / YS-N-24060

• Dimension: 170*35*23mm

• Max Power: 60W

• Input Voltage: 100-264V

• Output Voltage: DC12/24V

• Frequency: 50/60Hz

• Power Factor: PF>0.55

• Efficiency: 86%

• Output Current: Max 5A / Max 2.5A

• IP Rate: IP20

• Warranty: 5 Years
