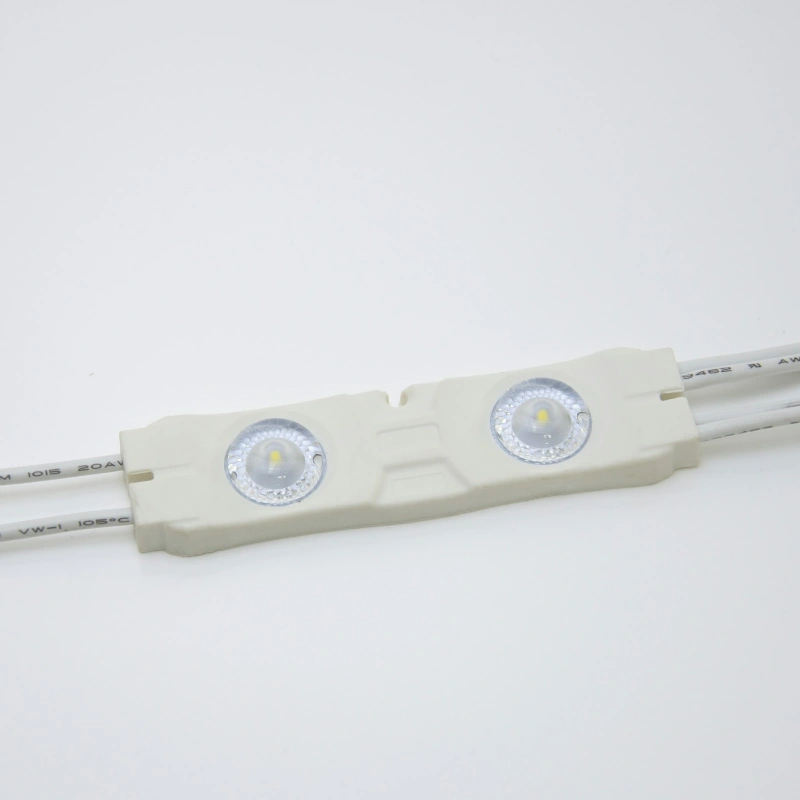

High voltage back lighting LED module for illuminated signs and light boxes

• Input voltage is AC180-240V or AC90-120V

• 270-300lm/pc, IP65 waterproof

• 175° Beam Angle

• Dimension 103*21*9.5mm

• Suitable for 5cm-10cm depth luminous letters and single sided light box

• Aluminum substrate design, good heat dissipation

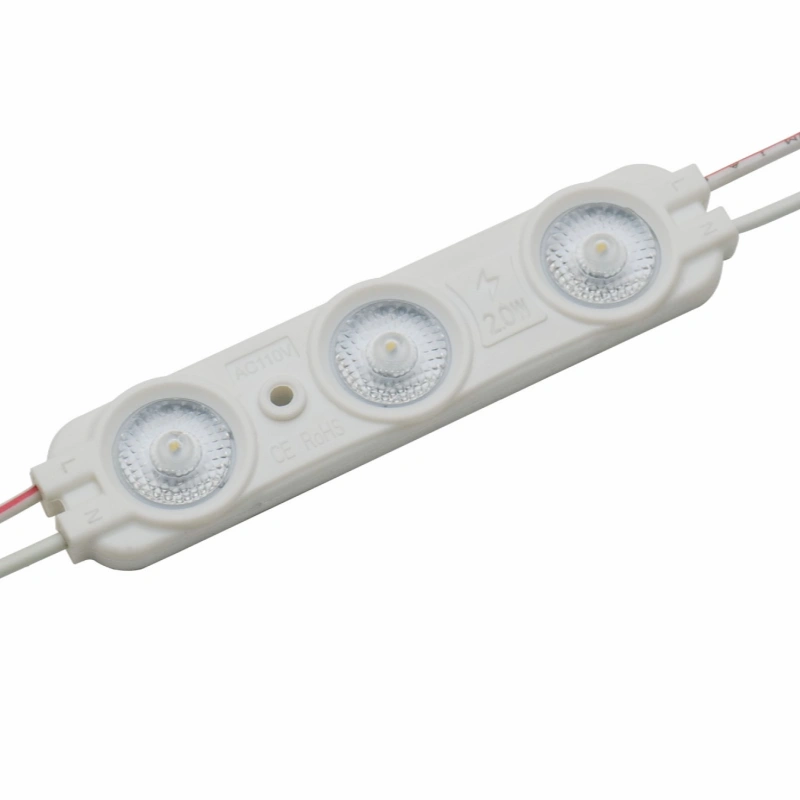

High voltage back lighting LED module for illuminated signs and light boxes

• Input voltage is AC180-240V or AC90-120V

• 160-200lm/pc, IP65 waterproof

• 160° Beam Angle

• Dimension 78*17.2*7.6mm

• Suitable for 6cm-18cm depth luminous letters and single sided light box

• Aluminum substrate design, good heat dissipation

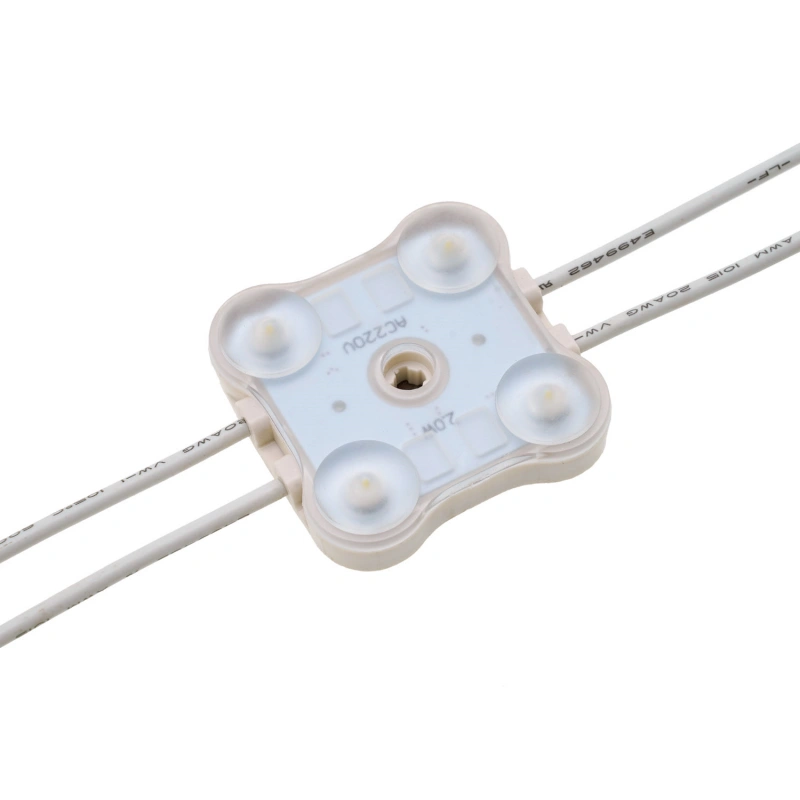

High voltage LED module for signs and light boxes

• Input voltage is AC180-240V or AC90-120V

• 140-180lm/pc, IP65 waterproof

• 170° Beam Angle

• Dimension 42.1*42.1*11.2mm

• Suitable for 10cm-20cm depth luminous letters and single sided light box

• Aluminum substrate design, good heat dissipation

High voltage Maxtrix LED module for Single sided light box

• Input voltage is AC180-240V or AC90-120V

• 660-720lm/pc, IP65 waterproof

• 175° Beam Angle

• Dimension 68*68*8.3mm

• Suitable for 8cm-15cm depth luminous letters and single sided light box

• Aluminum substrate design, good heat dissipation

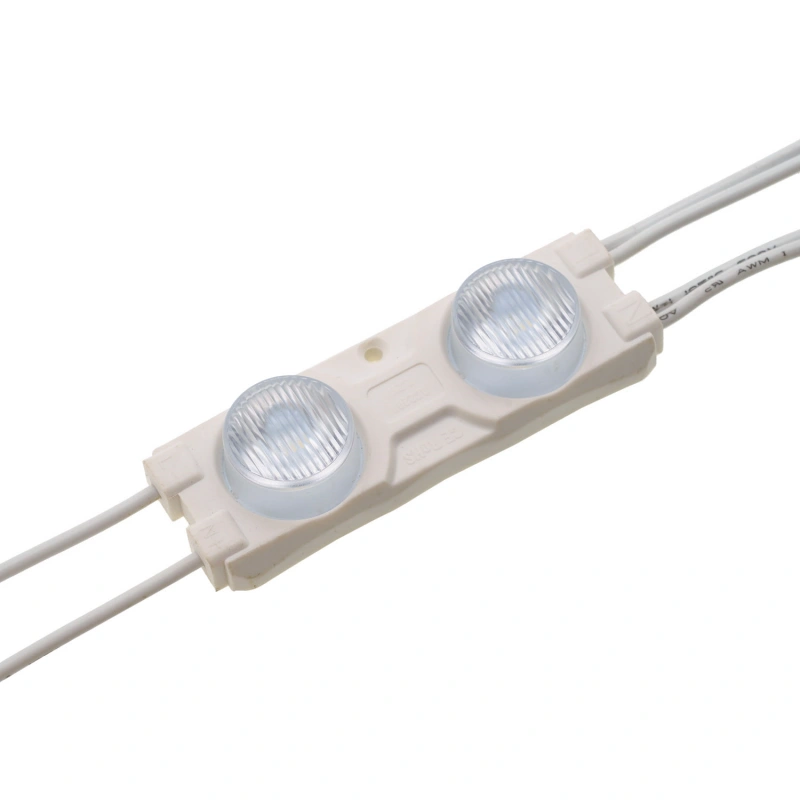

High voltage Side view LED module for double-sided light box

• Input voltage is AC180-240V or AC90-120V

• 140-180lm/pc, IP65 waterproof

• 56*12° Beam Angle

• Dimension 84*28*14.3mm

• Suitable for 10cm-20cm depth double-sided light box

• Aluminum substrate design, good heat dissipation

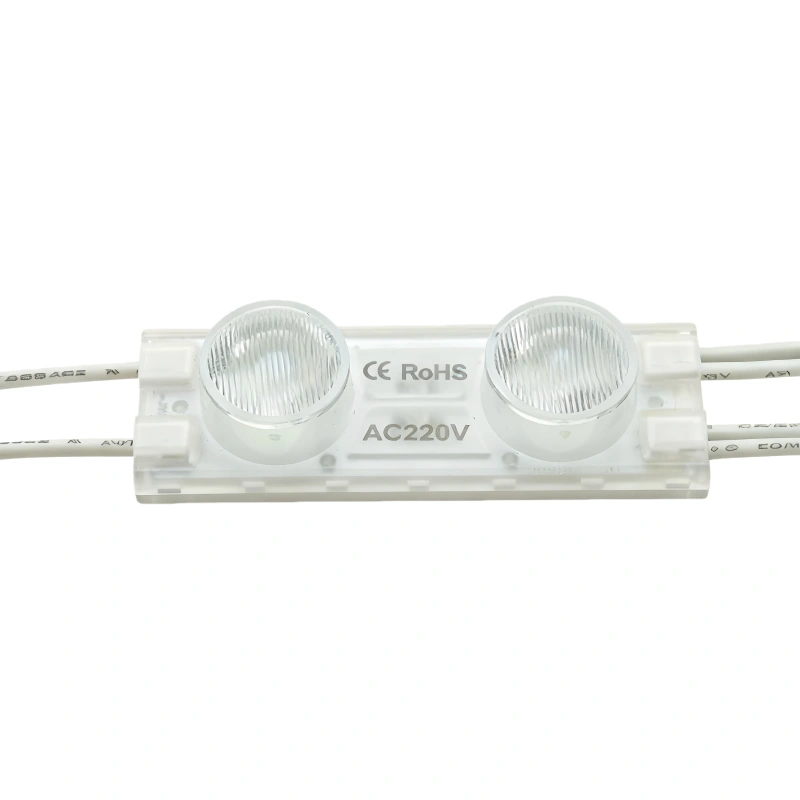

High voltage Side view LED module for double-sided light box

• Input voltage is AC180-240V or AC90-120V

• 140lm/pc, IP67 waterproof

• 20*40° Beam Angle

• Dimension 80*28*16.6mm

• Suitable for 10cm-20cm depth double-sided light box

• Aluminum substrate design, good heat dissipation

High voltage LED module for Single sided light box or signage

• Input voltage is AC180-240V or AC90-120V

• 220lm/pc, IP65 waterproof

• 165° Beam Angle

• Dimension 84*22*9.6mm

• Suitable for 6cm-18cm depth luminous letters and single sided light box

• Aluminum substrate design, good heat dissipation
