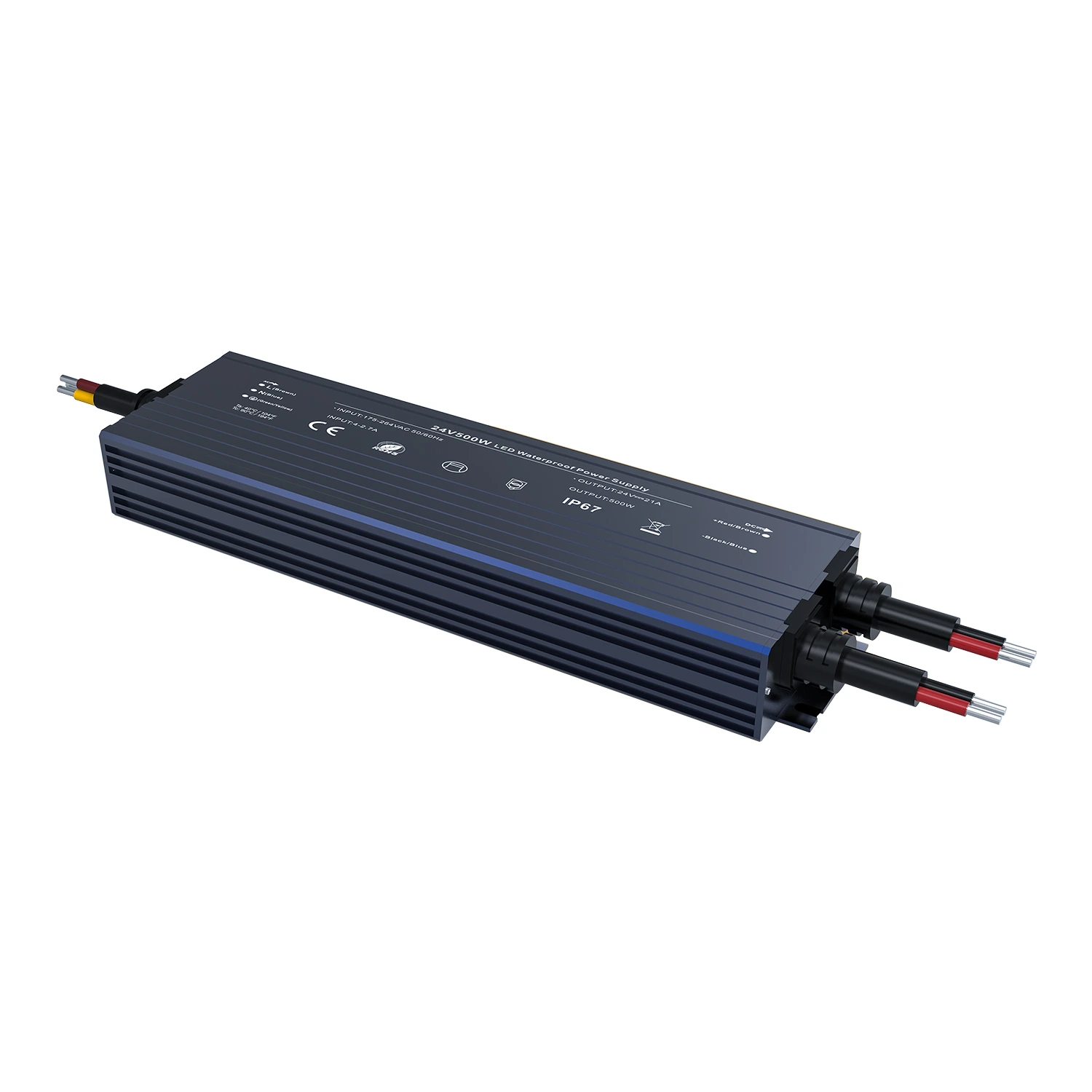

Module NO. YS-WP-12500 / YS-WP-24500
• Dimension: 260*92*37cm
• Max Power: 500W
• Input Voltage: 175-264V / 100-130V
• Output Voltage: DC12/24V
• Frequency: 50/60Hz
• Power Factor: PF>0.6
• Efficiency: 91%
• Output Current: Max 41.7A / Max 20.8A
• IP Rate: IP67
• Warranty: 5 Years
Module NO. YSD-60WUGF-12TL / YSD-60WUGF-24TL
• Dimension: 186*60*20.5cm
• Max Power: 60W
• Input Voltage: 100-277V
• Output Voltage: DC12/24V
• Frequency: 50/60Hz
• Power Factor: PF>0.95/230Vac, at full load
• Efficiency: 88%
• Output Current: Max 5A / Max 2.5A
• IP Rate: IP67
• Warranty: 5 Years
Module NO. YSD-100WHCF-12 / YSD-100WHCF-24
• Dimension: 217*42*23.8cm
• Max Power: 100W
• Input Voltage: 100-130V or 176-264V
• Output Voltage: DC12/24V
• Frequency: 50/60Hz
• Power Factor: PF>0.55/115Vac, at full load
• Efficiency: 85%
• Output Current: Max 8.3A / Max 4.17A
• IP Rate: IP67
• Warranty: 5 Years
Module NO. YSD-150WHCF-12 / YSD-150WHCF-24
• Dimension: 217*42*23.8cm
• Max Power: 150W
• Input Voltage: 100-130V or 176-264V
• Output Voltage: DC12/24V
• Frequency: 50/60Hz
• Power Factor: PF>0.55/230Vac, at full load
• Efficiency: 91%
• Output Current: Max 12.5A / Max 6.25A
• IP Rate: IP67
• Warranty: 5 Years
Module NO. YSD-200WHCF-12 / YSD-200WHCF-24
• Dimension: 251*44*23.8cm
• Max Power: 200W
• Input Voltage: 100-130V or 176-264V
• Output Voltage: DC12/24V
• Frequency: 50/60Hz
• Power Factor: PF>0.55/230Vac, at full load
• Efficiency: 92%
• Output Current: Max 16.7A / Max 8.33A
• IP Rate: IP67
• Warranty: 5 Years
Module NO. YSD-300WHCF-12 / YSD-300WHCF-24
• Dimension: 257*50.5*32cm
• Max Power: 300W
• Input Voltage: 100-130V or 176-264V
• Output Voltage: DC12/24V
• Frequency: 50/60Hz
• Power Factor: PF>0.55/230Vac, at full load
• Efficiency: 92%
• Output Current: Max 25A / Max 12.5A
• IP Rate: IP67
• Warranty: 5 Years
Module NO. YS-N-12500 / YS-N-24500
• Dimension: 220*62*31mm
• Max Power: 500W
• Input Voltage: 200-240V
• Output Voltage: DC12/24V
• Frequency: 50/60Hz
• Power Factor: PF>0.55
• Efficiency: 94%
• Output Current: Max 41.6A / Max 20.8A
• IP Rate: IP20
• Warranty: 5 Years
Module NO. YS-WP-12100 / YS-WP-24100
• Dimension: 170*52*35mm
• Max Power: 100W
• Input Voltage: 100-264V
• Output Voltage: DC12/24V
• Frequency: 50/60Hz
• Power Factor: PF>0.6
• Efficiency: 86%
• Output Current: Max 8.5A / Max 4.2A
• IP Rate: IP67
• Warranty: 5 Years
Module NO. YS-N-12100 / YS-N-24100
• Dimension: 145*48*24mm
• Max Power: 100W
• Input Voltage: 175-264V or 100-130V
• Output Voltage: DC12/24V
• Frequency: 50/60Hz
• Power Factor: PF>0.55
• Efficiency: 87%
• Output Current: Max 8.5A / Max 4.2A
• IP Rate: IP20
• Warranty: 5 Years
