Product

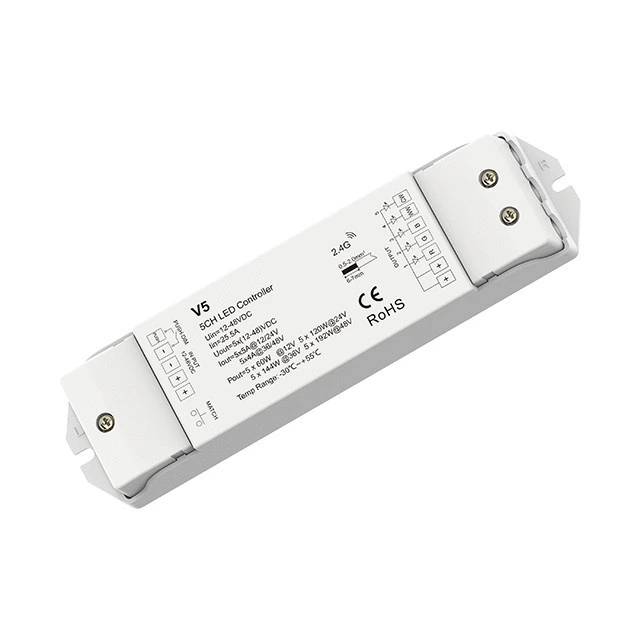

Module NO. V5

• Input Voltage: 12-48VDC

• Output voltage: 5x(12-48)VDC

• Output current: 5A/CH@12-24V, 4A/CH@36-48V

• Input signal: RF 2.4GHz + Push Dim

• Match with RF 2.4G single zone or multiple zone RGB+CCT remote control

• One RF controller accept up to 10 remote control

• 4096 levels 0-100% dimming smoothly without any flash

• Built in 10 dynamic mode, include jump or gradual change style

• Auto-transmitting function: Controller automatically transmit signal to another controller

• Synchronize on multiple number of controllers

• Light on/off fade time 3s selectable

• Connect with external push switch to achieve on/off and 0-100% dimming function

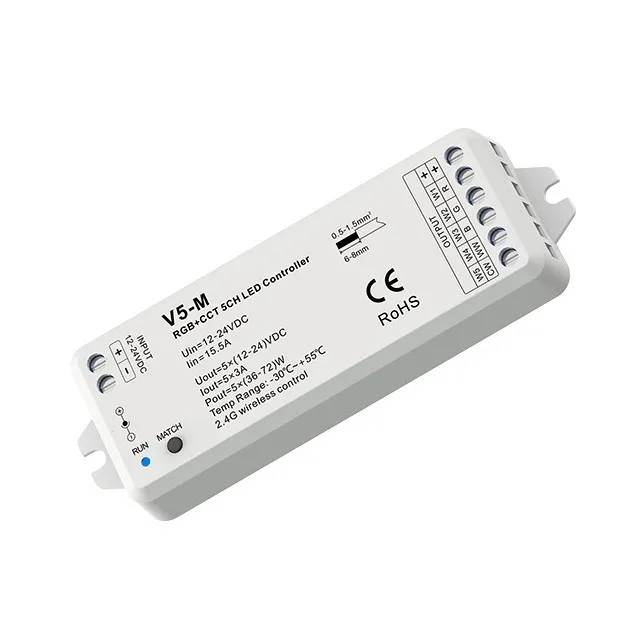

Module NO. V5-M

• Input Voltage: 12-24VDC

• Output voltage: 5x(12-24)VDC

• Output current: 5CH,3A/CH

• Input signal: RF 2.4GHz

• DC power socket input and 5 channel constant voltage output

• Match with RF 2.4G single zone or multiple zone RGB+CCT remote control

• One RF controller accept up to 10 remote control

• 4096 levels 0-100% dimming smoothly without any flash

• Built in 10 dynamic mode, include jump or gradual change style

• Auto-transmitting function: Controller automatically transmit signal to another controller

• Synchronize on multiple number of controllers

• Light on/off fade time 3s selectable

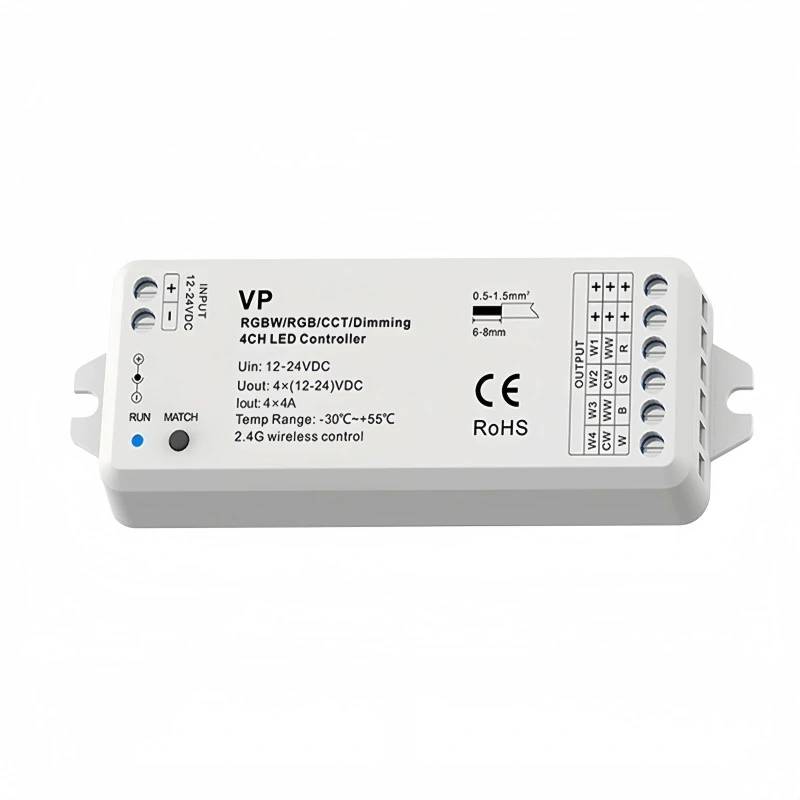

Module NO. VP

• Input Voltage: 12-24VDC

• Output voltage: 4x(12-24)VDC

• Output current: 4CH, 4A/CH, Max 6A

• Input signal: RF 2.4GHz

• DC power socket input and 4 channel constant voltage output

• Match with RF 2.4G single zone or multiple zone single color, dual color and RGB/RGBW remote control

• One RF controller accept up to 10 remote control

• 4096 levels 0-100% dimming smoothly without any flash

• When using with RGB/RGBW light, built in 10 dynamic mode, include jump or gradual change style

• Auto-transmitting function: Controller automatically transmit signal to another controller

• Synchronize on multiple number of controllers

• Light on/off fade time 3s selectable

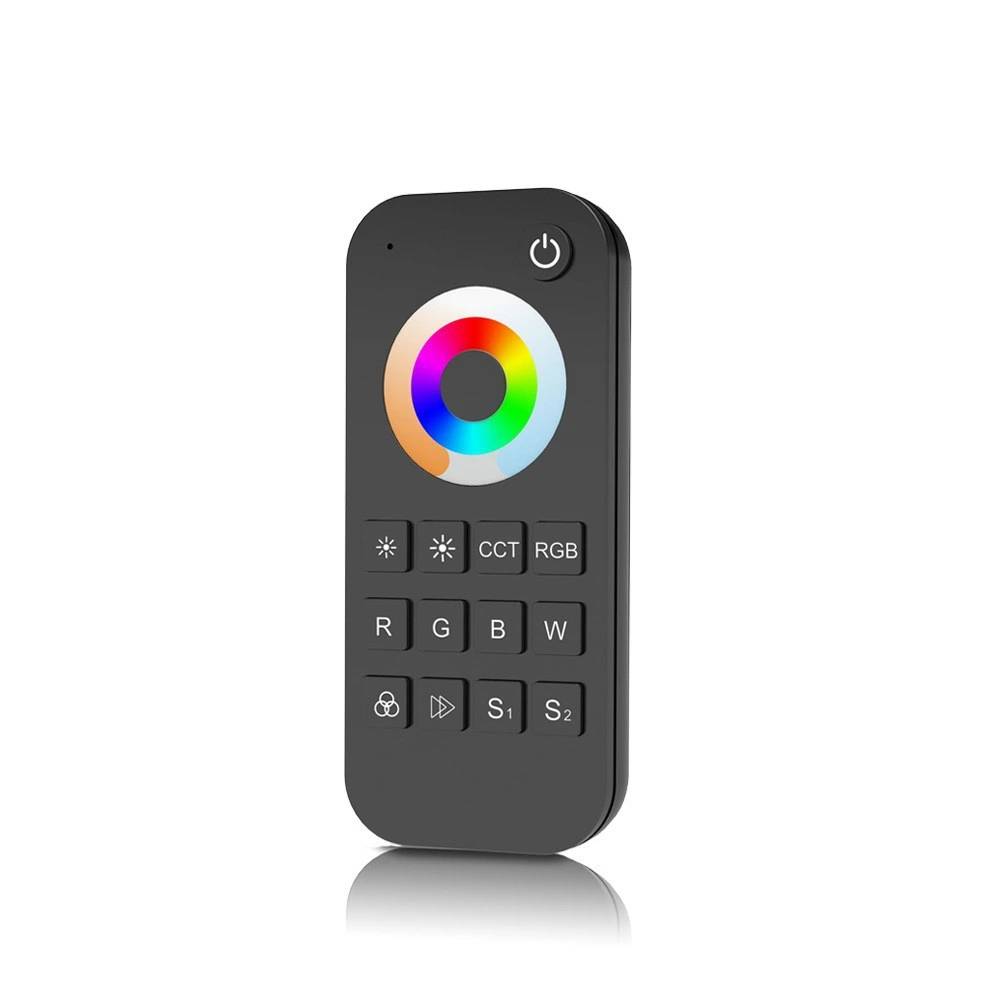

Module NO. RT5

• Output signal: RF(2.4GHz)

• Working voltage: 3VDC(AAAx2)

• Working current: <5mA

• Standby current: <10μA

• Remote distance: 30m(Barrier-free space)

• Apply to RGB+CCT LED controller

• Ultra sensitive color adjustment touch wheel

• Each remote can match one or more receiver

• AAAx2 battery powered

• Operate with LED indicator light

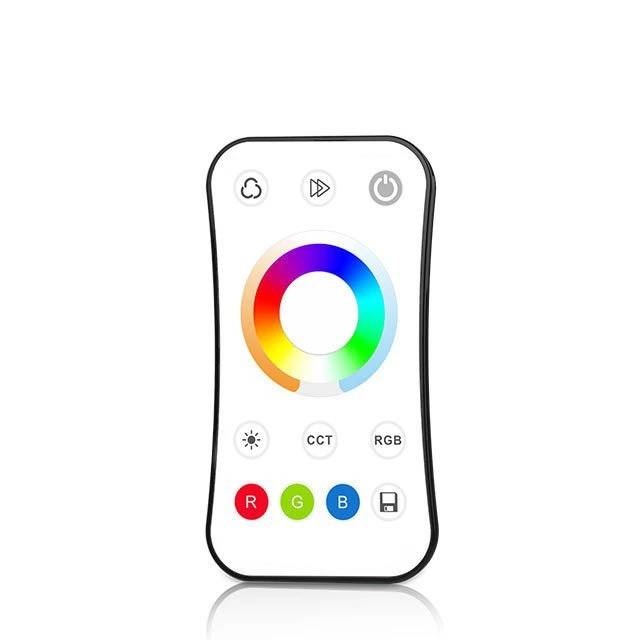

Module NO. R17

• Output signal: RF(2.4GHz)

• Working voltage: 3VDC(CR2032)

• Working current: <5mA

• Standby current: <10μA

• Apply to RGB+CCT LED controller

• Ultra sensitive color adjustment touch wheel

• Each remote can match one or more receiver

• CR2032 battery powered

• Operate with LED indicator light

• White & Black available

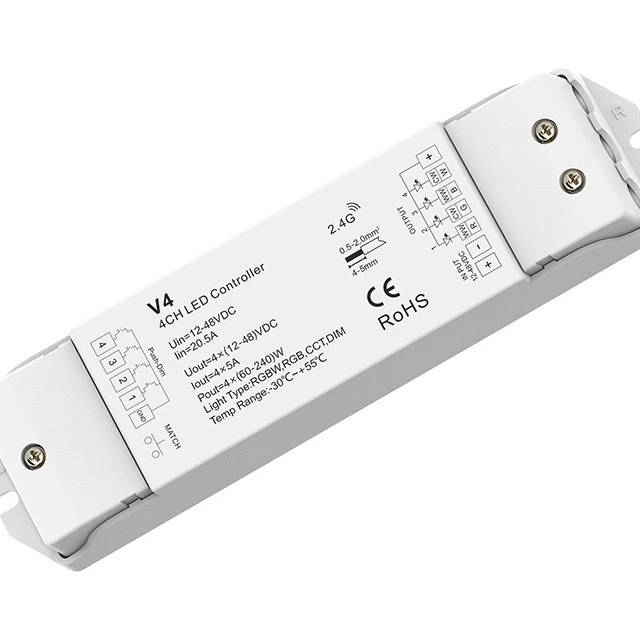

Module NO. V4

• Input Voltage: 12-48VDC

• Output voltage: 4x(12-48)VDC

• Output current: 4CH,5A/CH

• Input signal: RF 2.4GHz + Push Dim

• Match with RF 2.4G single zone or multiple zone single color, dual color and RGB/RGBW remote control

• One RF controller accept up to 10 remote control

• 4096 levels 0-100% dimming smoothly without any flash

• When using with RGB/RGBW light, built in 10 dynamic mode, include jump or gradual change style

• Auto-transmitting function: Controller automatically transmit signal to another controller

• Synchronize on multiple number of controllers

• Light on/off fade time 3s selectable

• Over-heat / Over-load / Short circuit protection, recover automatically

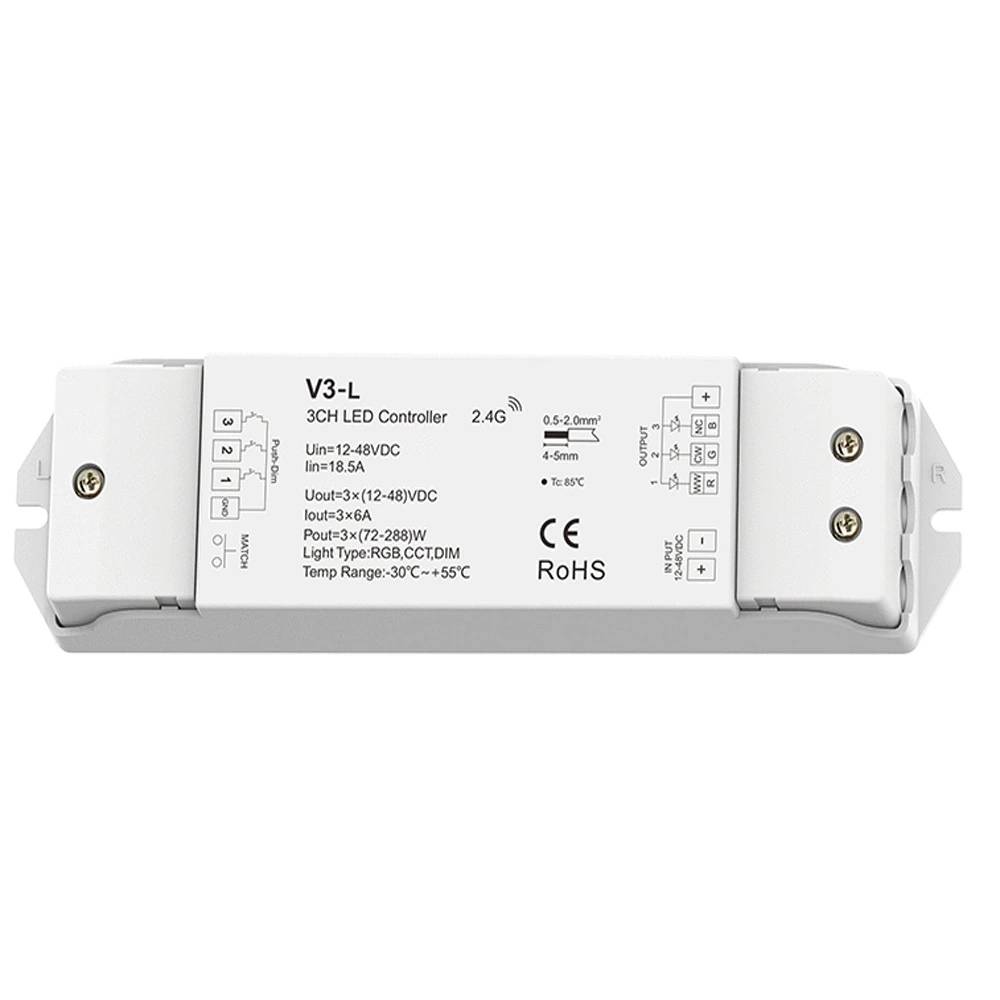

Module NO. V3-L

• Input Voltage: 12-48VDC

• Output voltage: 3x(12-48)VDC

• Output current: 3CH,6A/CH

• Input signal: RF 2.4GHz + Push Dim

• Control distance: 30m(Barrier-free space)

• Match with RF 2.4G single zone or multiple zone single color, dual color and RGB/RGBW remote control

• One RF controller accept up to 10 remote control

• 4096 levels 0-100% dimming smoothly without any flash

• When using with RGB light, built in 10 dynamic mode, include jump or gradual change style

• Synchronize on multiple number of controllers

• Light on/off fade time 3s selectable

• Over-heat / Over-load / Short circuit protection, recover automatically

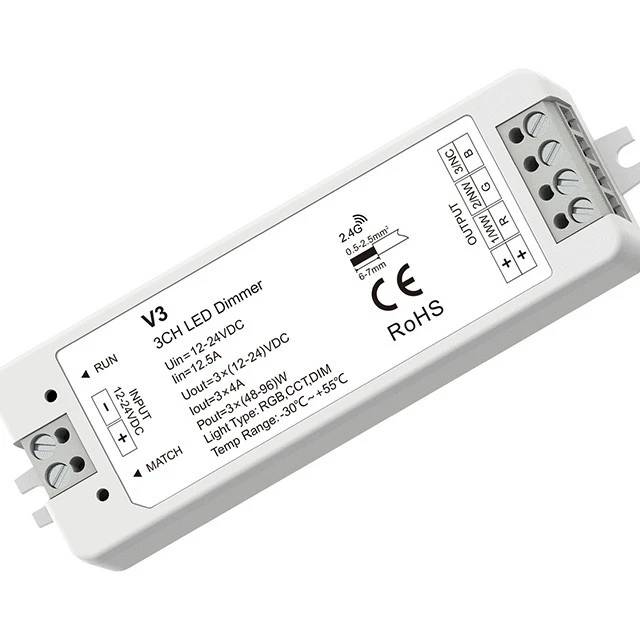

Module NO. V3

• Input Voltage: 12-24VDC

• Output voltage: 2x(12-24)VDC

• Output current: 3CH,4A/CH

• Input signal: RF 2.4GHz

• 4096 levels 0-100% dimming smoothly without any flash.

• Match with RF 2.4G single zone or multiple zone single color, dual color and RGB/RGBW remote control

• One RF controller accept up to 10 remote control

• 4096 levels 0-100% dimming smoothly without any flash

• When using with RGB light, built in 10 dynamic mode, include jump or gradual change style

• Auto-transmitting function: Controller automatically transmit signal to another controller

• Synchronize on multiple number of controllers

• Light on/off fade time 3s selectable

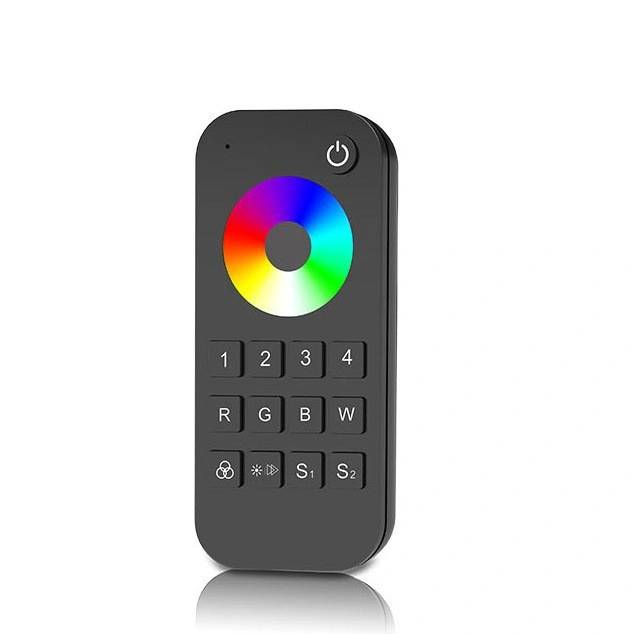

Module NO. RT4

• Output signal: RF(2.4GHz)

• Working voltage: 3VDC(AAAx2)

• Working current: <5mA

• Standby current: <10μA

• Remote distance: 30m(Barrier-free space)

• AAAx2 battery powered

• Apply to RGB or RGBW LED controller

• Ultra sensitive color adjustment touch wheel

• Each remote can match one or more receiver

• Independent dimming function of each R, G, B, W channel to achieve millions of colors
